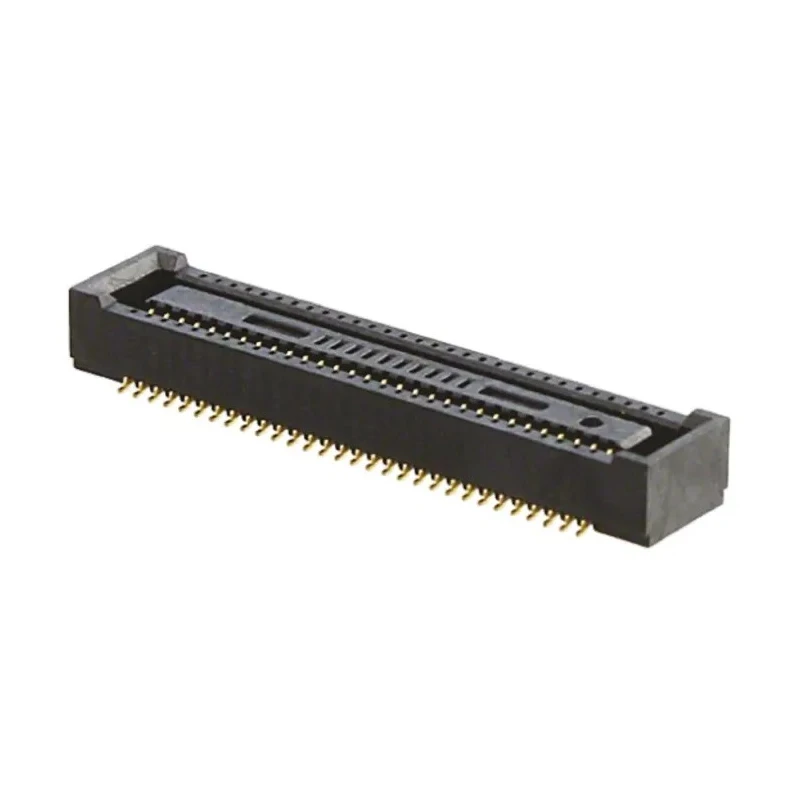

Hirose DF40 Series Straight Surface PCB Socket 60-Contact 2 Row 0.4 mm Pitch Solder

Hirose DF40HC(4.0)-60DS-0.4V(58) is a high-density, straight surface PCB socket from the DF40 Series, featuring 60 contacts arranged in 2 rows with a precise 0.4 mm pitch solder termination. Its compact and low-profile design enables space-saving on PCBs, making it ideal for miniature electronics.

Constructed with bronze contacts plated in gold, this connector ensures excellent electrical conductivity and corrosion resistance. It supports a current capacity of 300mA and operates safely within 30V. The socket includes nickel-plated barriers to prevent solder wicking, improving the soldering reliability on boards.

The DF40 PCB socket incorporates a robust locking mechanism that produces a tactile click, providing mating assurance and preventing accidental unmating. Guide ribs enable self-alignment with a tolerance of 0.33 mm during connection, reducing assembly errors and improving reliability.

Designed with reinforced shock-absorbing ribs, it offers durability against mechanical stress from vibrations or impacts, safeguarding critical connections. The operating temperature range from -35°C to 85°C makes it suitable for various industrial and electronic applications.

This connector is surface mount type with straight orientation and is compatible with a range of stack heights, allowing versatility in electronic design. It is perfect for use in mobile phones, development chipsets, LCD displays, notebook PCs, and keyboards where dense, reliable board-to-board connections are required.

Compact 0.4 mm pitch and high contact density support miniaturization. Gold-plated bronze contacts for superior electrical performance. Secure locking mechanism with tactile click ensures mating reliability. Guide ribs enable self-alignment to ease assembly process.

Nickel-plated barriers prevent solder wicking during manufacturing. Reinforced structure with shock absorbing ribs protects against mechanical damage. Wide operating temperature range from -35°C to 85°C for versatile use.

Surface mount and straight orientation for easy PCB integration. Ideal for mobile phones, LCD displays, notebook PCs, and other miniaturized devices.

Choose Hirose DF40 Series PCB Socket for dependable electronic connectivity and precision assembly in demanding industrial and commercial applications. Explore more high-quality PCB Sockets and connectors at EnvMart.
