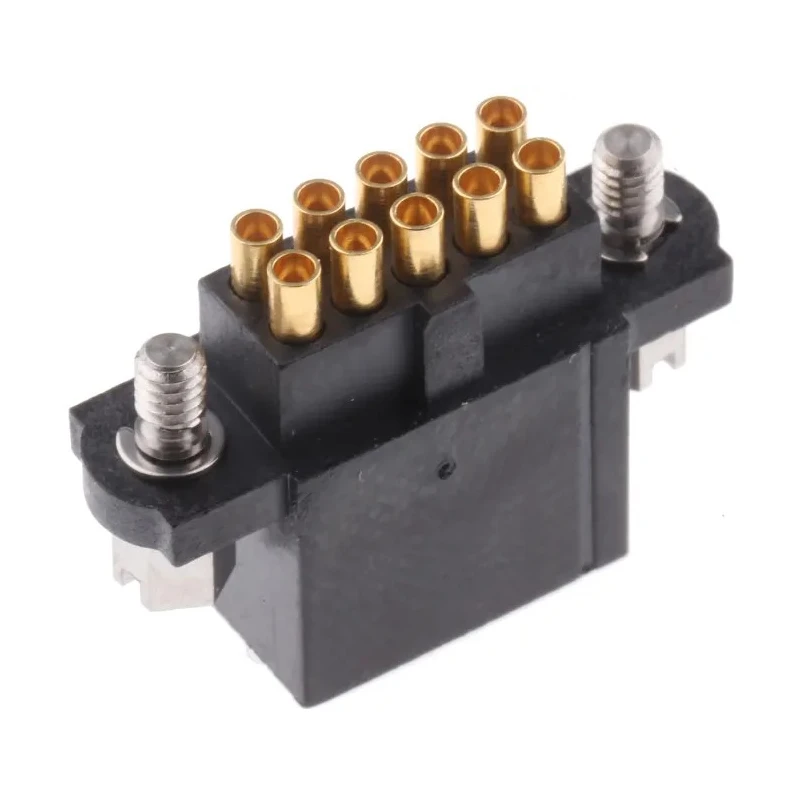

HARWIN Datamate J-Tek Series Straight Panel PCB Socket 10-Contact 2 Row 2 mm Pitch Crimp M80-4661005
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 120V |
| Brand | HARWIN |
| Orientation | Straight |
| Current | 12A |
| Model | M80-4661005 |
| Mount Type | Panel |
| Housing Material | Polyphenylene Sulphide |
| Contact Material | Beryllium Copper Alloy |
| Series | Datamate J-Tek |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Datamate |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 10 female contacts arranged in 2 rows with a 2 mm pitch.
- Constructed with polyphenylene sulphide housing for enhanced durability.
- Contacts made from beryllium copper alloy with gold plating for excellent conductivity.
- Designed for panel mounting with a straight orientation.
- Rated for 12A current and 120V voltage applications.
- Operates reliably between -55°C and 125°C temperature range.
- Includes jackscrews for secure connection and polarization to prevent mis-mating.
- Suitable for aerospace, military, telecommunications, medical, and industrial equipment.
Product Description
HARWIN M80-4661005 is a Datamate J-Tek Series Straight Panel PCB Socket with 10 contacts arranged in 2 rows featuring a 2 mm pitch and crimp termination. The connector system is board-to-board with female contacts made of beryllium copper alloy plated in gold to provide high conductivity and corrosion resistance. The housing is made of high-quality polyphenylene sulphide, providing mechanical strength and chemical resistance for demanding industrial environments.
This socket is rated at 12 amperes and 120 volts and can operate reliably in extreme temperature conditions ranging from -55°C to 125°C. The panel mount type with straight orientation and jackscrews ensures secure and vibration-resistant connections, essential for military, aerospace, and industrial applications.
The Datamate J-Tek connectors feature polarization to prevent mis-mating and are designed for high vibration and shock environments, making them suitable for use in telecommunications, data, medical handheld equipment, robotics, and oil and gas industries. The extended rear wall allows back potting, enhancing durability and environmental protection.
Manufactured in the United Kingdom, this connector complies with typical standards applicable in these sectors. The connector is a reliable choice for applications demanding robust and secure electrical connections under harsh conditions.
Features 10 female crimp contacts arranged in 2 rows with 2 mm pitch. Made with durable polyphenylene sulphide housing. Gold plated beryllium copper alloy contacts for optimal conductivity. Panel mount socket with straight orientation and jackscrews for secure fitment.
Rated for 12A current and 120V voltage operation. Temperature range from -55°C to 125°C to suit harsh environments. Polarization and shielding prevent mis-mating and enhance reliability. Ideal for aerospace, military, telecommunications, medical, and industrial use.
Manufactured in the United Kingdom, ensuring quality and performance. Explore more high-quality connectors and electronic components at EnvMart for your demanding industrial and commercial projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 12A current and 120V voltage applications.
It operates reliably between -55°C and 125°C, making it suitable for harsh environments.
The socket features 10 female contacts arranged in 2 rows with a 2 mm pitch.
The housing is made from polyphenylene sulphide, while the contacts are made from beryllium copper alloy with gold plating for enhanced conductivity.
Yes, it is designed for panel mounting with a straight orientation.
It includes polarization features and jackscrews to secure the connection and prevent mis-mating.
It is suitable for aerospace, military, telecommunications, medical, and industrial equipment applications.
This model uses crimp termination for its contacts.
The connector system is board-to-board, facilitating connections between PCBs.
The extended rear wall allows for back potting, which enhances durability and environmental protection.
It is manufactured in the United Kingdom, ensuring quality and performance.
The jackscrews and polarization features provide secure and vibration-resistant connections, making it suitable for high vibration environments.
