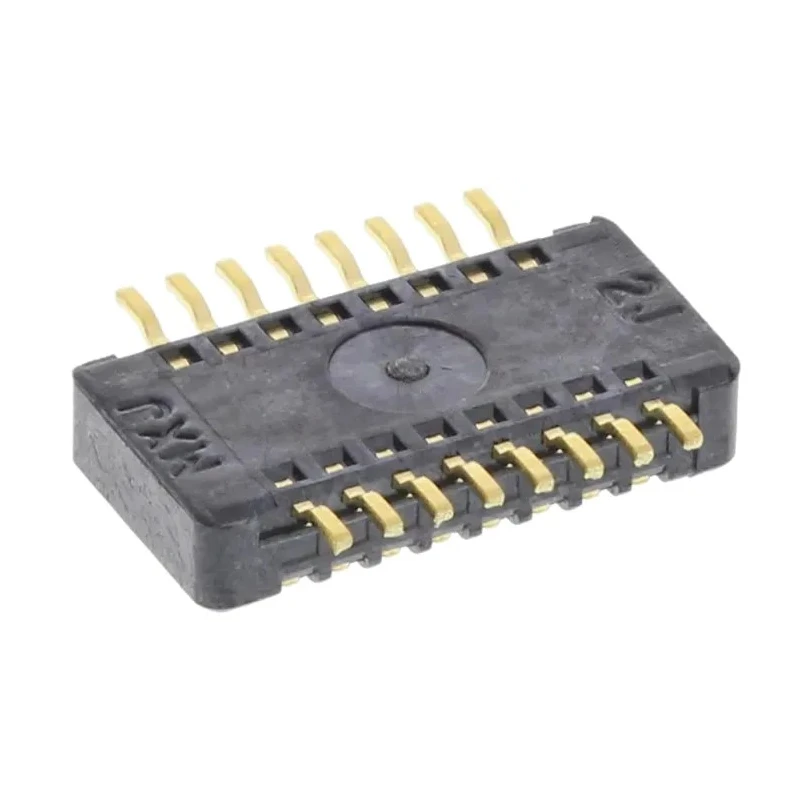

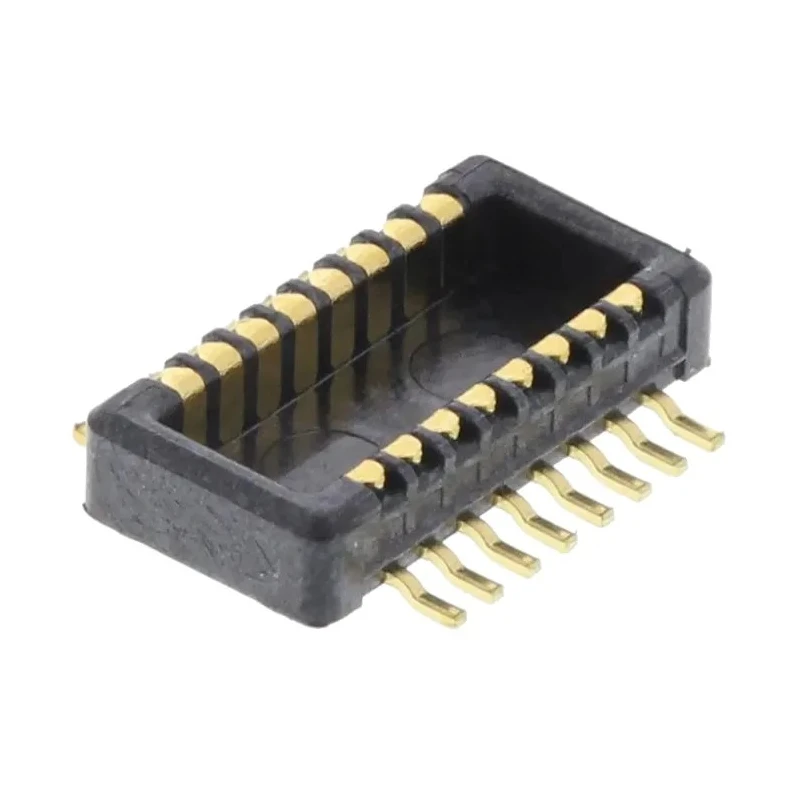

Molex SlimStack Series Straight Surface PCB Header 16 Contact, 0.5 mm Pitch, 2 Row, Shrouded 55560-0168
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 16 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- The connector features a shrouded design for secure mating retention.
- Made with a nylon housing and brass contacts plated with gold for durability and reliable conductivity.
- Rated for 50V operation and capable of handling 500mA current.
- Suitable for surface mount applications with straight orientation and solder termination.
- Operates reliably between -40°C and 105°C, ideal for portable electronics subjected to vibration and shock.
Product Description
Molex 55560-0168 SlimStack Series Straight Surface PCB Header is a high-density 16-contact board-to-board connector featuring a 0.5 mm pitch and dual-row arrangement. The connector is built with a nylon housing and gold-plated brass contacts to ensure long-lasting reliable connectivity and resistance to corrosion.
This shrouded header supports surface mounting with solder termination, enabling effective SMT manufacturing processes for industrial, electronic, and telecommunications applications. It operates at 50V and carries currents up to 500mA, designed to withstand harsh conditions with an operating temperature range from -40°C to 105°C.
The SlimStack family includes robust blade-on-beam contact technology and a metal friction lock for secure mating, reducing the risk of disconnections in environments with vibration or mechanical shock. This makes it especially suited for portable electronics and high-density PCB designs in consumer, industrial, and commercial sectors.
Shrouded design provides extra protection and alignment for mating connectors. Brass contacts with gold plating enhance electrical performance and corrosion resistance. Compact 0.5 mm pitch and dual row enable high density and efficient PCB real estate use.
Designed to meet the needs of modern electronics manufacturing methods including reflow soldering. Durable operating temperature range supports use in a wide variety of environmental conditions.
This product is made in China and supplied on a reel ready for insertion into automated assembly lines to improve production efficiency. It is ideal for use in electronic components manufacturing, industrial controls, and communications hardware. For more PCB connector options and technical support, browse the Electronics Components category at EnvMart.
Explore more products in our PCB Connectors & Wire Housings category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum current of 500mA.
It is rated for operation at 50V.
The pitch size of this model is 0.5 mm.
The housing is made of nylon, and the contacts are brass plated with gold.
It operates reliably between -40°C and 105°C.
This model features 16 contacts in a dual-row arrangement.
Yes, it is designed for surface mount applications with solder termination.
It uses solder termination for connection.
The connector features a shrouded design that provides secure mating retention.
This product is made in China.
It utilizes a board-to-board connector system.
The gold plating enhances electrical performance and corrosion resistance.
