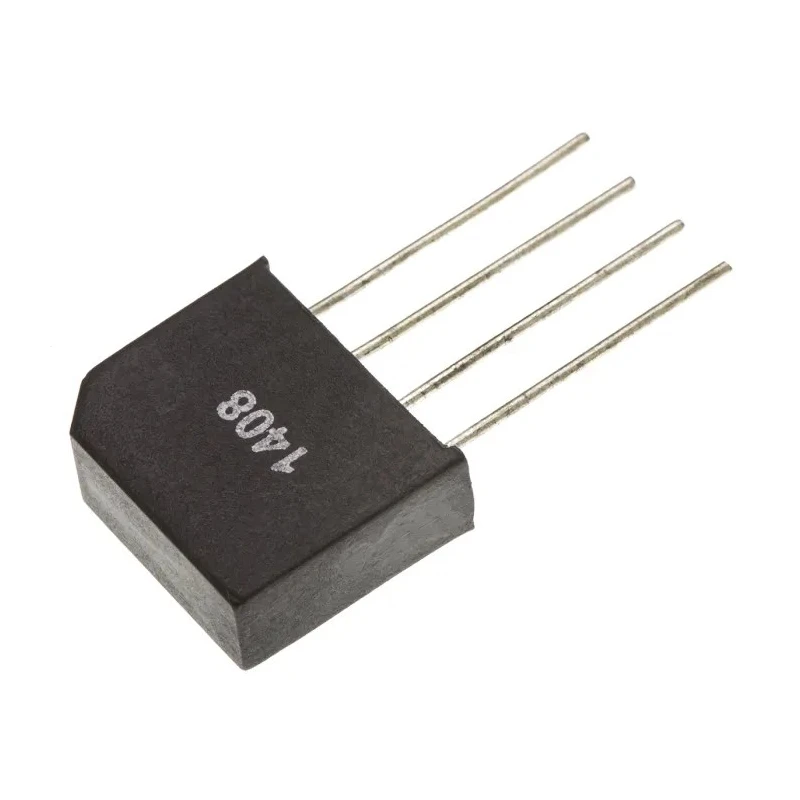

Vishay Bridge Rectifier 1 Phase Through Hole 4-Pin Single 800 V 63 A VS-2KBP08

Vishay VS-2KBP08 Bridge Rectifier is a highly reliable single phase semiconductor device designed to convert alternating current (AC) input into direct current (DC) output through full-wave rectification. The device features an encapsulated full bridge configuration consisting of four single diodes, providing consistent output polarity regardless of input polarity.

This model supports a peak reverse repetitive voltage (VRRM) of 800 V and a peak non-repetitive forward surge current (IFSM) of 63 A, ensuring robust performance in surge conditions. It is rated for a continuous forward current (IF) of 2 A, making it suitable for industrial and consumer electronic applications requiring stable and efficient power rectification.

The component is mounted through hole with a D-44 package type, facilitating easy installation on printed circuit boards. Its compact design includes dimensions of 17.5 mm length, 15 mm height, and 6.8 mm width. It reliably operates within a wide temperature range from -40°C minimum to 150°C maximum operating temperature, ensuring operation in varying environments.

The peak forward voltage drop (Vf) of 1 V and peak reverse current (Ir) of 10 µA highlight its efficiency and low leakage characteristics, improving overall performance in power supply circuits. This bridge rectifier is not certified under any specific automotive standards but excels in general industrial and consumer equipment usage.

Vishay’s VS-2KBP series bridge rectifiers are renowned for compact construction and high surge current capability, making them ideal components for power conversion in electronic circuits, including HVAC, manufacturing equipment, industrial machines, and laboratory instruments.

Compact construction suitable for PCB mounting. Encapsulated full bridge configuration with four single diodes. Handles continuous forward current of 2 A. Maximum operating temperature up to 150°C. Peak forward voltage of 1 V ensures efficient rectification.

Operates reliably from -40°C to 150°C. Pin count of 4 for simple integration. Package type D-44 for standardized mounting footprint. No specific automotive standard compliance. Designed for industrial and consumer electronic equipment.
