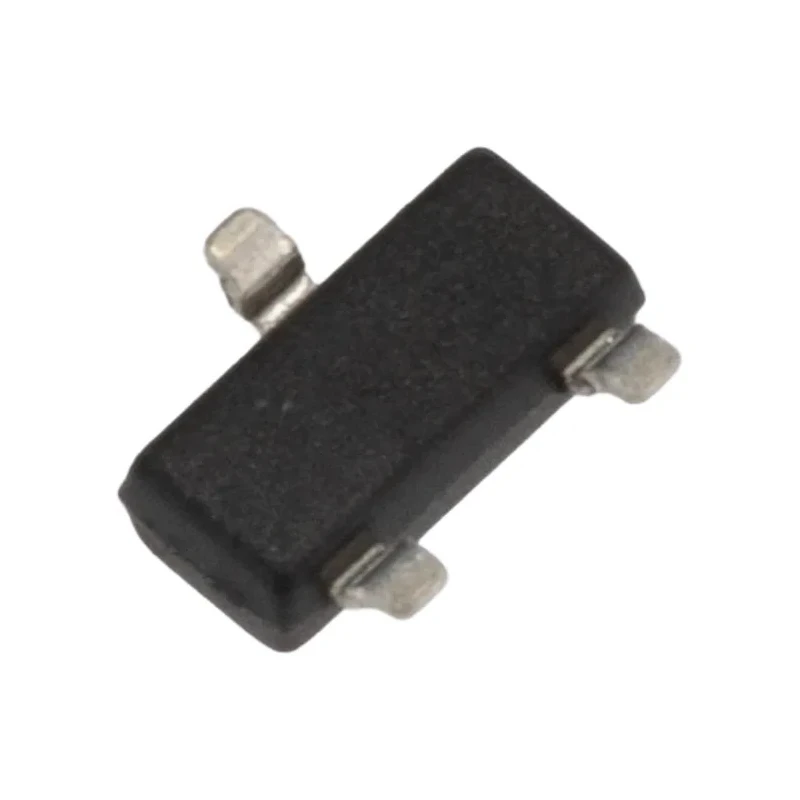

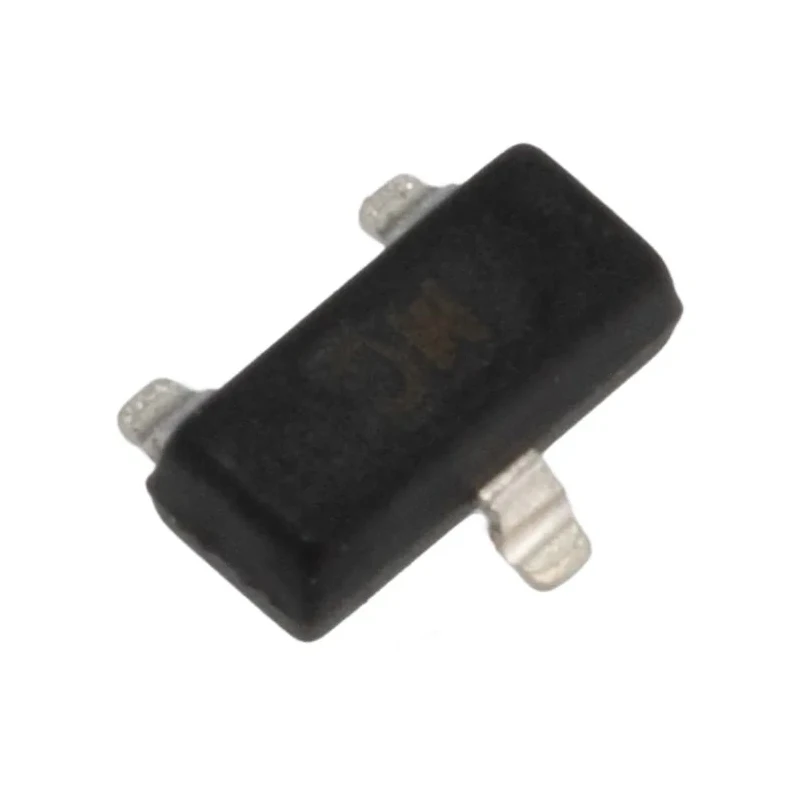

DiodesZetex N-Channel MOSFET Enhancement Type 150 mA 60 V SOT-23 Surface Mount ZVN3306FTA

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex N-Channel MOSFET Enhancement Type 150 mA 60 V SOT-23 Surface Mount ZVN3306FTA

Name: DiodesZetex N-Channel MOSFET Enhancement Type 150 mA 60 V SOT-23 Surface Mount ZVN3306FTA
Brand: DiodesZetex
SKU: 86208
Price: 0.33 USD
Availability: InStock



Category MOSFET Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1mm
Length	3.05mm
Model	ZVN3306FTA
Width	1.4mm
Mount Type	Surface
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-55°C
Pin Count	3
Automotive Standard	AEC-Q200, AEC-Q100, AEC-Q101
Channel Type	Type N
Maximum Continuous Drain Current Id	150mA
Maximum Drain Source Voltage Vds	60V
Maximum Drain Source Resistance Rds	5Ω
Channel Mode	Enhancement
Maximum Power Dissipation Pd	330mW
Maximum Gate Source Voltage Vgs	20V
Forward Voltage Vf	1.2V

Key Features

Supports maximum continuous drain current of 150 mA for reliable switching operations.
Maximum drain-source voltage of 60 V enables robust performance in diverse circuit applications.
Enhancement mode with low on-resistance ensures efficient MOSFET operation in compact assemblies.
Surface mount SOT-23 package with 3-pin configuration for easy integration on PCBs.
Maximum power dissipation of 330 mW suits low-power and precision electronic designs.
Wide operating temperature range from -55°C to 150°C assures environmental adaptability.
Automotive standards AEC-Q200, AEC-Q100, and AEC-Q101 compliance for industrial and automotive applications.

Product Description

The DiodesZetex ZVN3306FTA is a high-performance N-channel MOSFET designed for enhancement mode operation. It is specifically engineered to deliver reliable switching characteristics and efficient operation in both industrial and automotive electronics.

With a maximum continuous drain current of 150 mA and a drain-source voltage limit of 60 V, this MOSFET is well-suited for robust low-power and precision switching circuits. The enhancement mode design ensures the device operates optimally, providing low drain-source resistance and efficient signal control.

This product comes in a compact 3-pin SOT-23 surface mount package, making it ideal for surface-mount PCB designs. Its mounting flexibility and minimal footprint make it compatible with high-density board layouts and automated assembly processes.

The ZVN3306FTA features a maximum power dissipation of 330 mW, supporting low-power switching logic and sensor interface applications. It allows for reliable function across a wide operating temperature range from -55°C to 150°C, offering long-term thermal stability and operational adaptability under harsh conditions.

The device complies with automotive standards including AEC-Q200, AEC-Q100, and AEC-Q101, making it suitable for automotive electronics, industrial controls, and various embedded systems. Additional key specs include a gate-source voltage maximum of 20 V, a forward voltage of 1.2 V, and low on-resistance at 5 ohms.

Applications include switching, voltage regulation, sensor interfacing, load management, and other electronic control circuits requiring reliability and automotive-grade performance. The surface mount and compact SOT-23 footprint are especially suitable for industrial, automotive, and commercial designs.

Explore more specialized MOSFETs and industrial semiconductors in EnvMart’s Electronics & Electricals category, featuring leading brands like DiodesZetex and a wide range of enhancement and depletion mode devices for professional use.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous drain current for this model is 150 mA, allowing for reliable switching operations in various applications.

The maximum drain-source voltage of the ZVN3306FTA is 60 V, enabling robust performance in diverse circuit applications.

This model comes in a SOT-23 surface mount package, featuring a compact 3-pin configuration for easy integration on PCBs.

The operating temperature range for this MOSFET is from -55°C to 150°C, ensuring environmental adaptability.

This model complies with automotive standards AEC-Q200, AEC-Q100, and AEC-Q101, making it suitable for automotive electronics and industrial applications.

The maximum power dissipation for this model is 330 mW, which is suitable for low-power and precision electronic designs.

The maximum gate-source voltage for the ZVN3306FTA is 20 V, allowing for efficient operation in various circuits.

The forward voltage for this model is 1.2 V, which is relevant for its performance in switching applications.

The maximum drain-source resistance for this MOSFET is 5 ohms, ensuring efficient operation in compact assemblies.

Its compact SOT-23 footprint and surface mount design make it ideal for high-density board layouts and automated assembly processes.

This MOSFET is suitable for applications including switching, voltage regulation, sensor interfacing, and load management.

The dimensions of this model are 3.05 mm in length, 1.4 mm in width, and 1 mm in height, making it compact for various applications.
