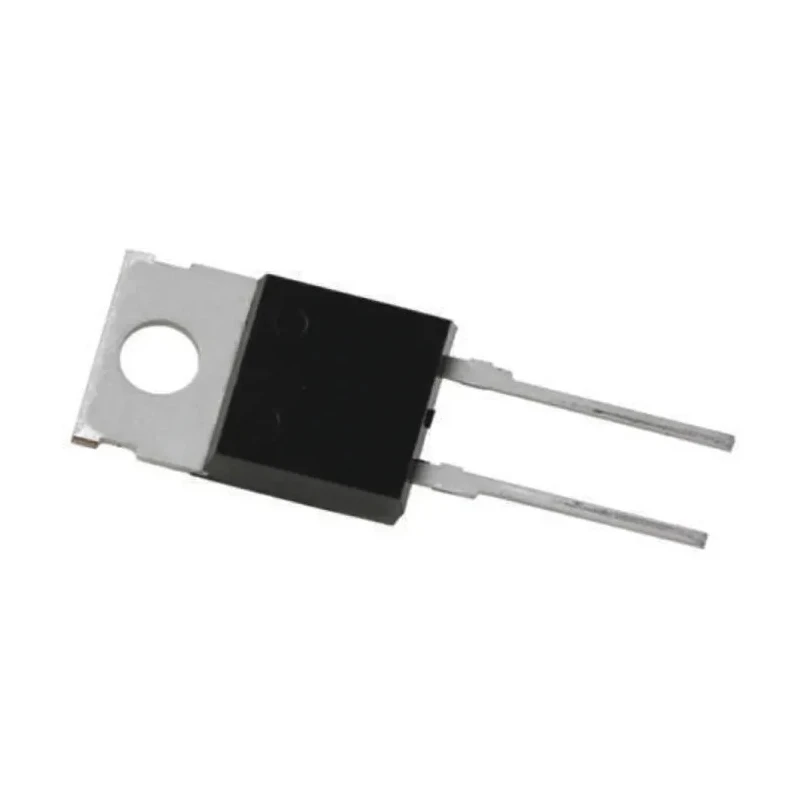

IXYS 600 V 14 A Switching Diode Single Rectifier 2-Pin TO-220AC DSEI12-06A
Specifications
| Country of Origin | India |
|---|---|
| Brand | IXYS |
| Height | 9.15mm |
| Length | 10.66mm |
| Model | DSEI12-06A |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Series | DSEI12-06A |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220AC |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 14A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 50μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 110A |
| Maximum Forward Voltage Vf | 1.7V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- Designed for through-hole mounting with TO-220AC package type.
- Maximum continuous forward current of 14 A supports heavy-duty rectification.
- Peak reverse repetitive voltage rating of 600 V ensures reliable blocking capability.
- Fast peak reverse recovery time of 50 ns improves switching efficiency.
- Supports operating temperatures from -40°C to 150°C for versatile industrial use.
- Maximum forward voltage drop of 1.7 V minimizes power loss during conduction.
- Peak non-repetitive forward surge current of 110 A for transient load tolerance.
- Single diode configuration with 2 pins for simplified circuit design.
Product Description
IXYS DSEI12-06A is a high-performance switching diode specifically engineered for power and rectification applications requiring robust voltage and current handling. This single diode comes in a 2-pin TO-220AC package, ideal for through-hole mounting in electronic circuits.
The device features a maximum continuous forward current of 14 A and peak reverse repetitive voltage rating of 600 V, providing dependable operation in demanding industrial environments. Its fast peak reverse recovery time of 50 nanoseconds enhances switching speed and efficiency, crucial in power supply and inverter designs.
The diode operates reliably across a broad temperature range, from -40°C minimum to a maximum of 150°C, ensuring stable performance in harsh conditions. A maximum forward voltage drop of 1.7 V reduces conduction losses, improving overall system efficiency. It also withstands a peak non-repetitive forward surge current of 110 A, accommodating transient overloads.
Measuring 10.66 mm in length, 4.82 mm in width, and 9.15 mm in height, the compact form factor enables easy integration into various power electronics assemblies. The single diode configuration with two pins simplifies circuit design and assembly.
This IXYS diode is suitable for multiple industrial applications, including power supplies, inverters, motor drives, and switching regulators in electronics manufacturing, automotive electronics (non-automotive certified), and laboratory equipment.
Designed for through-hole mounting in TO-220AC package. Max forward current is 14 Amperes. Reverse repetitive voltage rating is 600 Volts. Fast reverse recovery time of 50 nanoseconds. Wide operating temperature range from -40°C to 150°C.
Low forward voltage drop of 1.7 Volts improves efficiency. Peak surge current rating of 110 Amperes. Compact dimensions for versatile use. Single diode with 2-pin configuration. Suitable for various industrial power switching applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the IXYS DSEI12-06A is 14 A.
This model has a peak reverse repetitive voltage rating of 600 V.
The fast peak reverse recovery time for the DSEI12-06A is 50 ns, enhancing switching efficiency.
It operates reliably within a temperature range of -40°C to 150°C.
The maximum forward voltage drop is 1.7 V, which minimizes power loss during conduction.
The peak non-repetitive forward surge current rating is 110 A, accommodating transient loads.
This diode measures 10.66 mm in length, 4.82 mm in width, and 9.15 mm in height.
The DSEI12-06A has a single diode configuration with 2 pins.
It is designed for through-hole mounting in a TO-220AC package type.
This diode is suitable for applications including power supplies, inverters, motor drives, and switching regulators.
The DSEI12-06A is a switching rectifier, designed for power and rectification applications.
The country of origin for this diode is India.
