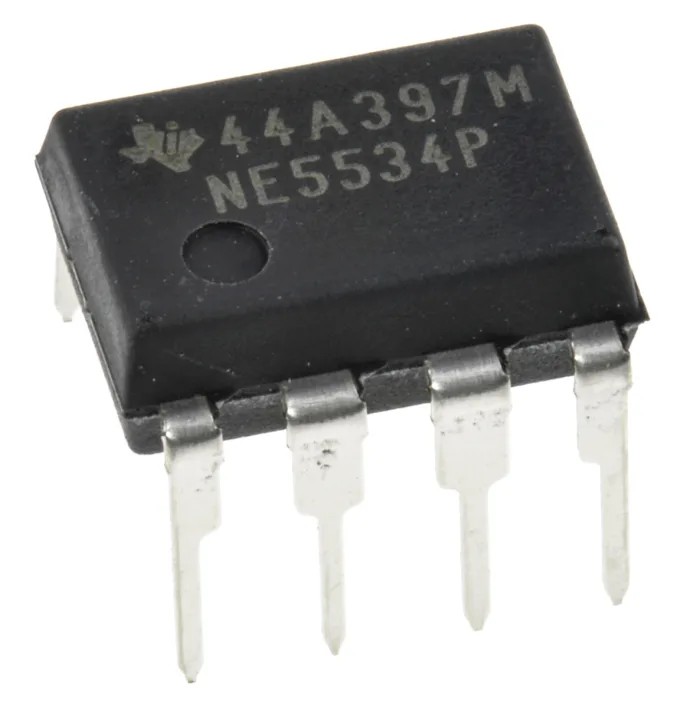

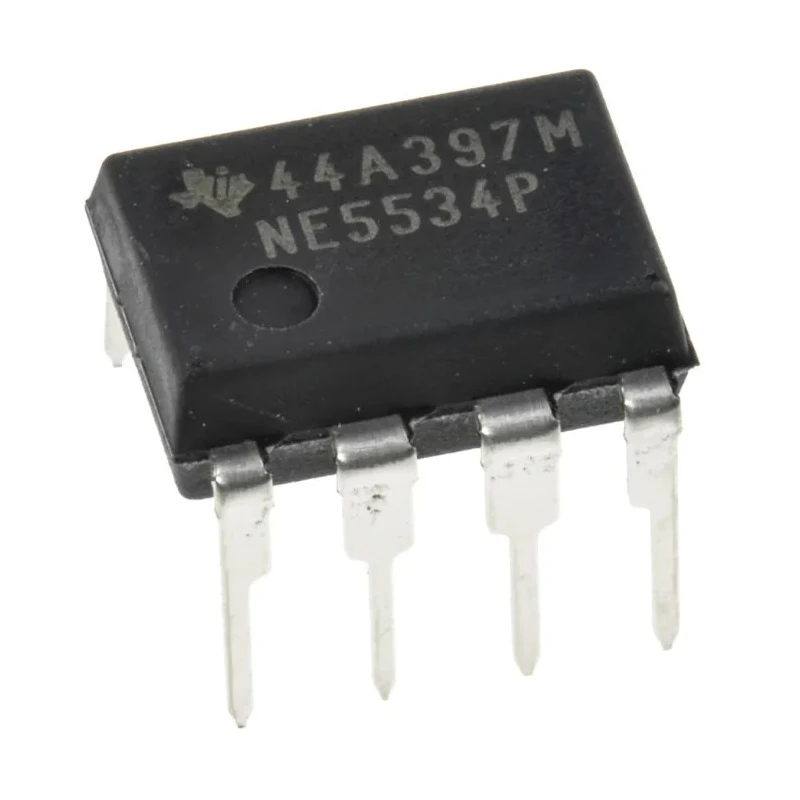

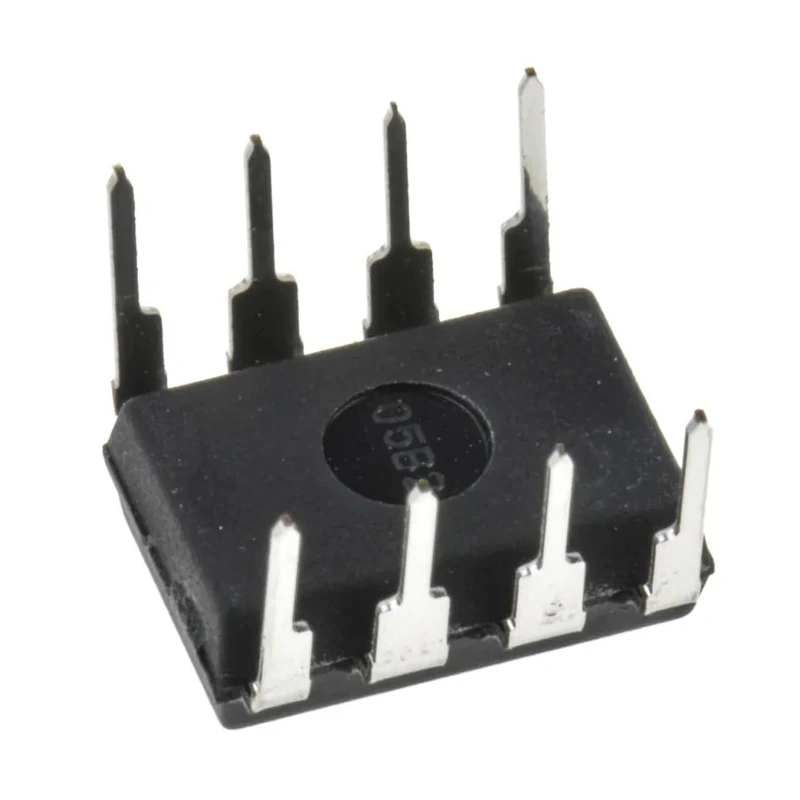

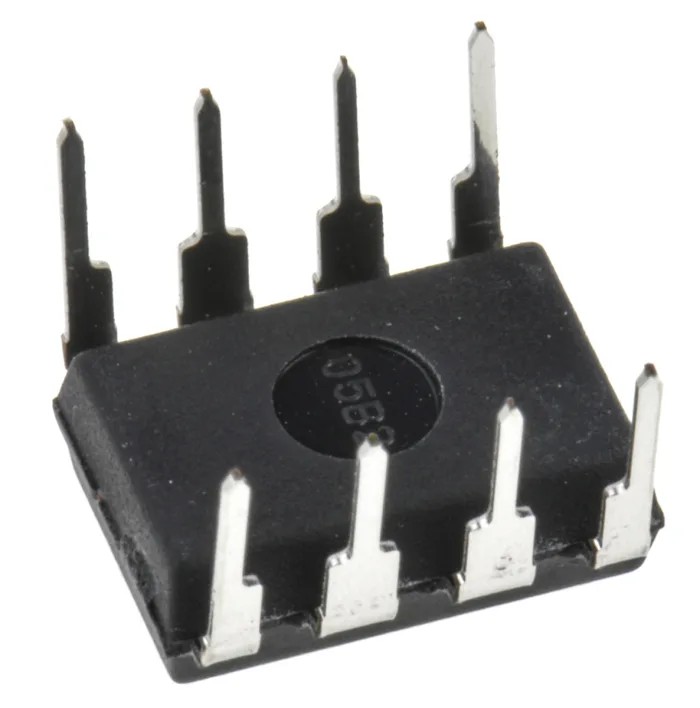

Texas Instruments Operational Amplifier 10 MHz 8-Pin 22V PDIP NE5534P

The Texas Instruments NE5534P is a high-performance operational amplifier designed for precision analog signal processing in various electronic applications. Featuring a 10 MHz gain bandwidth product, it provides superior speed and accuracy in amplification tasks.

This device is supplied in an 8-pin PDIP package for easy through-hole mounting, with a single channel configuration suitable for custom circuit designs. The wide supply voltage range from -22V to 22V enables flexible integration into diverse power environments.

Notable electrical characteristics include a low input offset voltage of 5 mV, input bias current of 2000 nA, and an input offset current of 400 nA, which collectively ensure high accuracy and stability. The slew rate of 13 V/μs enables the amplifier to respond rapidly to input signal changes, making it well-suited for audio and instrumentation applications.

Operating temperature range extends from 0°C to 70°C, supporting reliable function in standard industrial and electronic environments. The physical dimensions of 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height facilitate compact PCB layouts.

This amplifier is RoHS compliant, underscoring its adherence to environmental and safety directives. Manufactured in Mexico, it reflects quality manufacturing standards. High gain bandwidth product of 10 MHz ensures fast signal processing.

Supports single channel operation with 8 pins. Operates with supply voltages from -22V to 22V. Features low input offset voltage of 5 mV and input bias current of 2000 nA. Slew rate of 13 V/μs provides rapid voltage changes.

Designed to operate between 0°C and 70°C operating temperature range. Compact package dimensions with PDIP 8-pin offering. Complies with RoHS standards ensuring environmental safety. Manufactured in Mexico to high-quality standards.

Ideal for audio, signal conditioning, and industrial applications.

This operational amplifier is suitable for use in industrial electronics, laboratory instrumentation, audio equipment, and manufacturing systems. It meets the rigorous demands of precision amplification tasks and is supported by Texas Instruments' renowned reliability and innovation.
