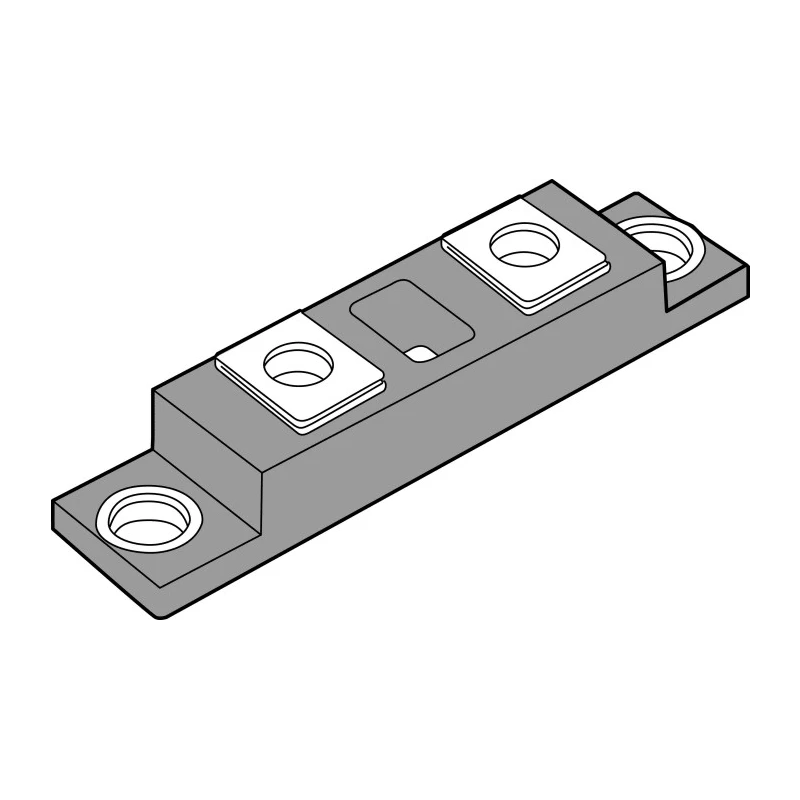

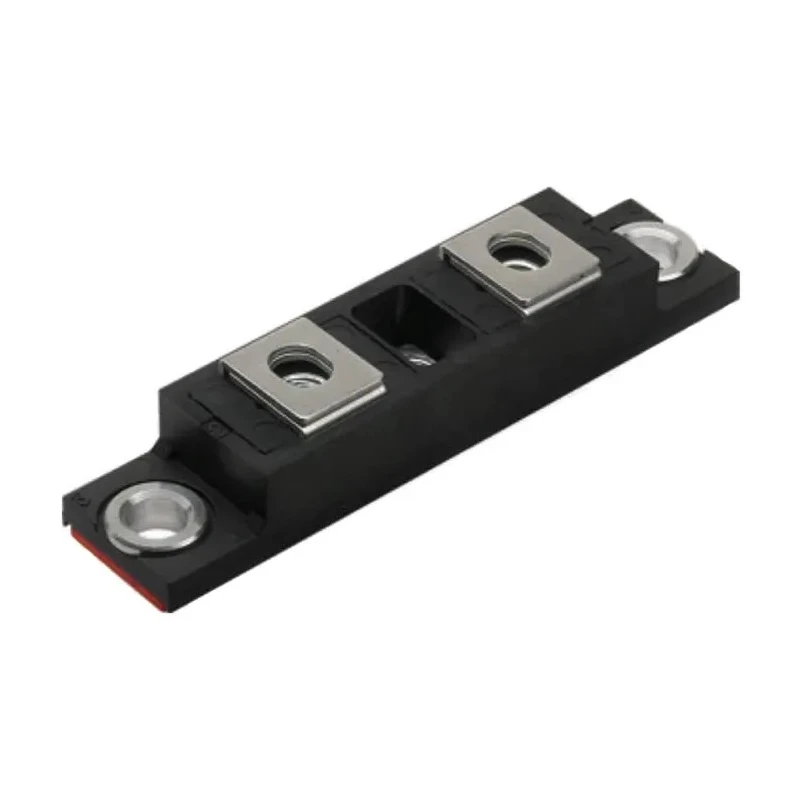

Vishay High Performance Schottky Diode 45 V 400 A Panel Mount TO-244 Package VS-401CNQ045PBF

Vishay VS-401CNQ045PBF is a high performance Schottky diode with a 3-pin TO-244 package designed for panel mounting applications. It supports a maximum continuous forward current of 400 A and a peak reverse repetitive voltage of 45 V, making it suitable for demanding electronic and power circuit environments.

This Schottky rectifier features a low forward voltage drop of 0.78 V, which reduces power loss and heat generation, enhancing overall efficiency in fast switching applications. The diode configuration is common cathode with 3 pins to facilitate straightforward installation and reliable operation.

Engineered to operate within a temperature range from -55°C to 175°C, this diode offers robust thermal performance in industrial and electronic environments. It can sustain high surge currents up to 25000 A for short durations, suitable for protective and surge applications.

The physical package dimensions of length 93 mm, width 21 mm, height 17.5 mm, and a diameter of 5.2 mm ensure compactness while supporting efficient heat dissipation when mounted. Additionally, the product meets UL approval file E222165, affirming compliance with recognized safety and quality standards.

This Vishay Schottky diode is ideal for use in industrial semiconductor assemblies, power rectification, fast switching circuits, and other electronic equipment requiring reliable diode performance with low forward voltage drop and high current capacity.

Features a maximum continuous forward current of 400 A. Operates with a peak reverse repetitive voltage of 45 V. Housed in a TO-244 package, suitable for panel mounting. Exhibits low forward voltage drop of 0.78 V to enhance efficiency.

Designed for wide operating temperature range from -55°C to 175°C. Reliable common cathode diode configuration with 3-pin design. Supports peak non-repetitive forward surge current of up to 25000 A. Compact dimensions with length 93 mm, width 21 mm, and height 17.5 mm.

Complies with UL approval file E222165 for safety and quality standards. Ideal for industrial, electronic power, and semiconductor applications requiring fast switching.
