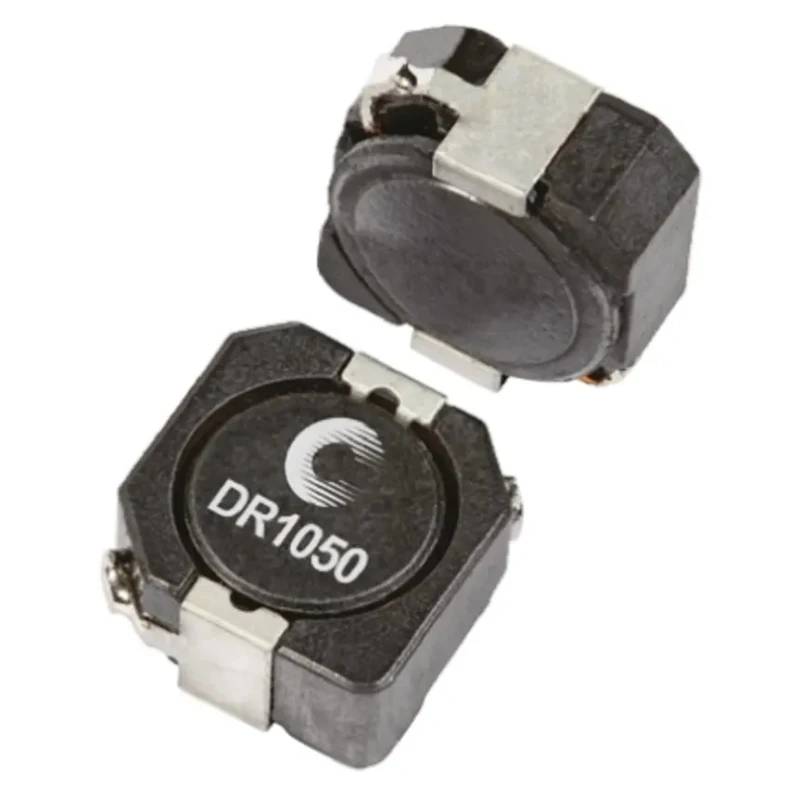

Eaton Shielded Surface Mount Inductor 1 mH ±30% 480 mA Idc Ferrite Core DR1050

Eaton DR1050 Shielded Surface Mount Inductor is a reliable 1 mH ±30% inductance component designed with a ferrite core and wirewound construction for excellent magnetic shielding and performance.

The low profile SMD inductor measures 10.3 mm in length, 10.5 mm in depth, and 5 mm in height which is ideal for compact electronic devices.

With a maximum DC current rating of 480 mA and maximum operating temperature of 125°C, this inductor is suitable for diverse industrial and electronic applications including computers, DVD players, notebook power supplies, LCD panels, and DC-DC converters.

The DR1050 series supports switching topologies such as buck, boost, forward, and resonant converters, providing effective noise filtering and filter choke solutions on PCBs. The inductor features a maximum DC resistance of 1.95 Ω and a maximum self-resonant frequency of 1 MHz offering good performance up to high frequency switching.

Designed for surface mount technology with reel packaging, it facilitates efficient automated assembly. The product complies with RoHS standards, ensuring it meets environmental requirements for lead-free manufacturing.

Magnetically shielded wirewound inductor with ferrite core reduces electromagnetic interference. Compact size (10.3 mm x 10.5 mm x 5.0 mm) supports space constrained designs. Wide operating temperature range from -40°C to 125°C enhances durability in harsh environments.

Max DC current: 480 mA, suitable for portable and computing power supplies. High-frequency capability up to 1 MHz enables use in switching converter applications. Surface mount termination style compatible with modern PCB assembly processes.

RoHS compliant ensuring environmentally responsible manufacturing. Package supplied on reels for optimized handling in volume production.

This inductor is an ideal choice for industrial electronics, computer hardware, power management circuitry, and noise suppression in electrical assemblies. Eaton lighting and power components like the DR1050 support innovation and design efficiency.
