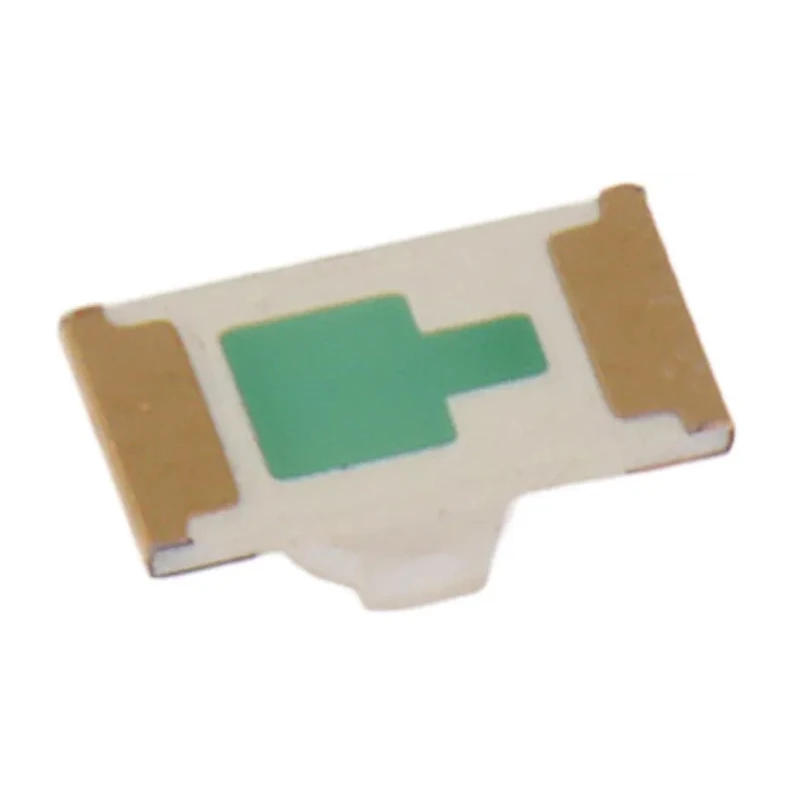

Kingbright 2.5 V Red Surface Mount LED 3216 Package High Luminosity 550 mcd KPTL-3216SURCK

Kingbright KPTL-3216SURCK is a high-performance red LED designed in the 3216 (1206) surface mount package, measuring 3.2 x 1.6 x 1.1 mm with a height of 1.1 mm. It operates at a forward voltage of 2.5 V and supports a maximum forward current of 185 mA, making it suitable for precise indicator applications and backlighting in electronic devices.

This SMT (Surface Mount Technology) chip LED features a round, clear lens which provides a focused and bright red emission at a dominant wavelength of 630 nm. The LED's luminous intensity of 550 millicandela ensures high visibility and performance in various electronic circuits.

Its compact size and wide viewing angle of 70 degrees facilitate effective light distribution, useful in displays, signage, and indicator panels. The product is RoHS compliant and supplied in tape and reel form, optimizing it for automated pick-and-place manufacturing processes.

Typical industrial and commercial use cases include electronics manufacturing, instrumentation displays, control panels, and other applications requiring reliable red LED indicators with excellent brightness and efficiency.

This LED features a 3216 surface mount package size. It has a maximum forward current of 185 mA for reliable operation. The forward voltage rating is 2.5 volts ensuring efficient power consumption. The LED produces a dominant wavelength of 630 nm, emitting bright red light.

A viewing angle of 70 degrees provides wide-angle light dispersion. It offers a luminous intensity of 550 millicandela (mcd) for visible brightness. The round clear lens design enhances light output and visual clarity. Designed for surface mount assembly, supplied in tape and reel packaging.

Maximum power dissipation is 75 milliwatts to ensure thermal stability. Kingbright LEDs are renowned for their quality and consistency. Explore our extensive range of LEDs for various electronic and industrial applications on EnvMart.
