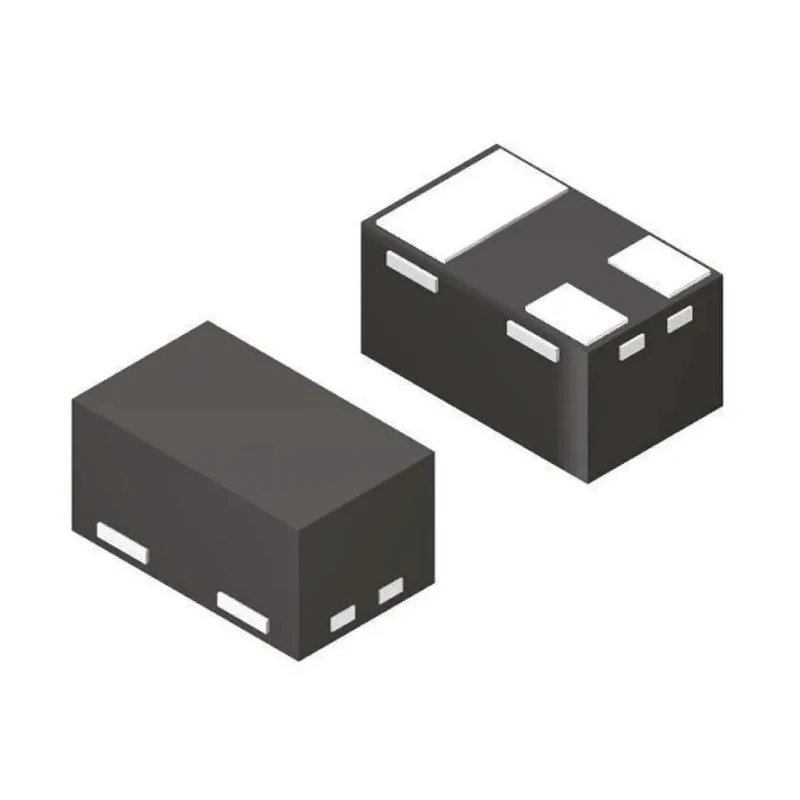

Infineon 2-Element Uni-Directional ESD Protection Diode, 3-Pin TSLP 5.3V 3A ESD5V3U2U03LRHE6327XTMA1

Infineon ESD5V3U2U03LRHE6327XTMA1 is a 2-element uni-directional ESD protection diode housed in a 3-pin TSLP surface mount package. Designed for electronic and electrical industrial applications, it provides robust transient voltage suppression to protect sensitive circuits from electrostatic discharge events.

This diode features a common anode configuration with a minimum breakdown voltage of 6 V and maximum reverse standoff voltage of 5.3 V, ensuring stable operation in protecting downstream components. The clamping voltage of 28 V and peak pulse current tolerance of 3 A provide effective ESD mitigation during transient events.

Its operating temperature range from -40°C to 125°C makes it suitable for a wide variety of industrial, automotive, and manufacturing environments where thermal stability is critical. The compact dimensions (1 mm length, 0.6 mm width, 0.34 mm height) allow integration into densely packed PCBs used in industrial controls, power supplies, and communication devices.

Infineon, with manufacturing based in Malaysia, offers this ESD protection diode as part of its ESD series, providing reliable and high-performance options for engineers designing circuits requiring compliance with ESD standards.

Typical applications include industrial control systems, automotive electronics, communication equipment, and any equipment requiring transient voltage suppression for enhanced reliability.

The diode features a common anode configuration for reliable circuit protection. Minimum breakdown voltage is 6 volts, with a maximum reverse standoff voltage of 5.3 volts. It offers a clamping voltage of 28 volts and can handle a maximum peak pulse current of 3 amperes.

The component operates effectively across a temperature range from -40°C to 125°C. Compact dimensions of 1 mm length, 0.6 mm width, and 0.34 mm height allow for flexible PCB layout. Maximum reverse leakage current is low at 50 nanoamperes, minimizing energy loss.

This ESD Protection Diode complies with industry standards for transient voltage suppression. Manufactured in Malaysia by Infineon, renowned for semiconductor reliability. Explore the wide range of semiconductor and protection diodes available at EnvMart for your next industrial or electronic project.
