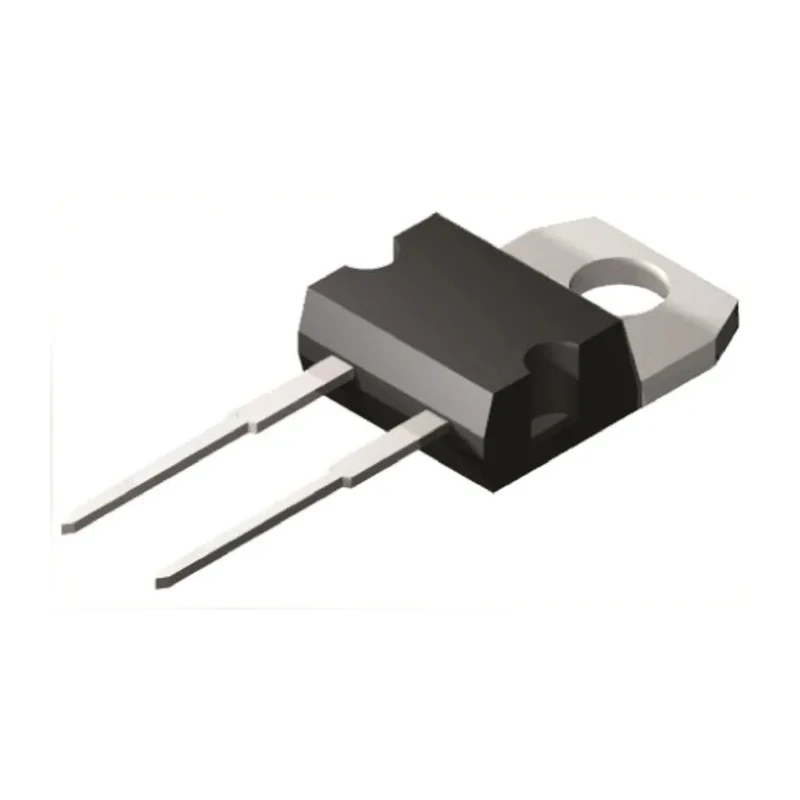

Wolfspeed 1200 V 14 A Silicon Carbide Schottky Diode Through Hole 2-Pin TO-220 C4D10120A

Wolfspeed C4D10120A is a Silicon Carbide (SiC) Schottky Diode optimized for high performance in power electronic applications. It features a through-hole 2-pin TO-220 package that facilitates easy mounting and robust mechanical stability. Operating at a maximum continuous forward current of 14 amperes and a peak reverse repetitive voltage of 1200 volts, it is suitable for high voltage, high efficiency circuits.

The diode utilizes Wolfspeed's Z-Rec™ technology offering excellent thermal management and minimal power losses at high switching frequencies, a critical factor in switch-mode power supplies and high-speed inverter applications.

This device exhibits zero reverse recovery current and temperature-independent switching characteristics, enhancing efficiency and reliability. Its fast switching speeds minimize switching losses and reduce heatsink requirements, thus permitting more compact electronic designs.

Engineered to operate over a broad temperature range (-55°C to 175°C), the Wolfspeed C4D10120A diode offers longevity and consistent performance under demanding environmental conditions.

Physical dimensions are well-defined for integration: 15.62 mm height, 4.7 mm width, and 10.41 mm length, making it compatible with standard TO-220 mounting layouts. Its maximum forward voltage drop of 3 V ensures efficient conduction while the peak non-repetitive forward surge current of 71 A protects against transient events.

This new-condition Wolfspeed diode is manufactured in China and is especially suitable for industrial, electronics manufacturing, power supply design, and automotive electronic systems.

Maximum continuous forward current of 14 amperes for robust power handling. Peak reverse repetitive voltage rating of 1200 volts ensures high voltage endurance. Package type is TO-220 with a 2-pin configuration suitable for through-hole mounting.

Operates reliably within a temperature range from -55°C to 175°C. Features extremely fast switching performance with minimal power loss. Designed with Z-Rec series technology for enhanced thermal conductivity and reduced power loss.

Maximum forward voltage of 3 volts ensuring efficient conduction. Peak non-repetitive forward surge current rated at 71 amperes for transient tolerance. Height, width, and length dimensions of 15.62 mm, 4.7 mm, and 10.41 mm respectively.

Made in China with a new product condition suitable for industrial and electronic applications.
