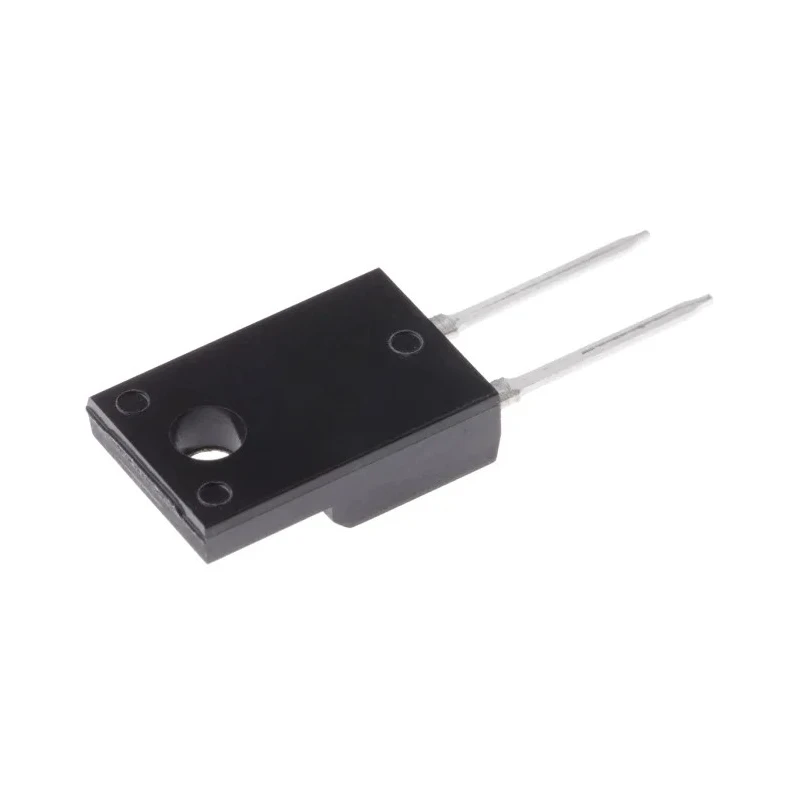

Wolfspeed 600 V 4 A Single Z-Rec Silicon Carbide Schottky Diode 2-Pin TO-220 C3D02060F

Wolfspeed C3D02060F is a Silicon Carbide Schottky diode designed to deliver superior performance in high voltage and high-frequency applications. Featuring a 600 V peak reverse voltage and a 4 A maximum continuous forward current, this diode is engineered for power efficiency and thermal management.

The device uses Wolfspeed's Z-Rec series technology that offers zero reverse recovery current and minimal forward recovery voltage. This leads to reduced power loss and heat generation, enabling operation at elevated temperatures up to 175°C.

Constructed in a robust TO-220 through-hole package, the diode simplifies mounting in power electronic assemblies. Its 2-pin configuration suits various industrial and commercial electronic circuit designs, including switch-mode power supplies and high-speed inverters.

The diode exhibits excellent thermal conductivity and a positive temperature coefficient forward voltage, allowing paralleling of multiple devices without risk of thermal runaway. Additionally, it significantly reduces heatsink requirements, lowering overall system costs.

Typical applications include power factor correction boost diode circuits and high efficiency power conversion modules in industrial, automotive, and renewable energy sectors. Rated for 600 V peak reverse repetitive voltage ensuring reliable blocking capability.

Maximum continuous forward current up to 4 A for moderate power applications. Z-Rec technology delivers fast switching with minimal losses. Through-hole TO-220 package ensures ease of integration and effective heat dissipation.

Temperature range from -55°C to 175°C suitable for harsh operating environments. Compact physical dimensions facilitate dense PCB layouts. Positive temperature coefficient minimizes thermal runaway risks. Optimized for use in switch-mode power supplies and inverters.

Set includes a single Wolfspeed C3D02060F diode in TO-220 package ready for industrial PCB assembly. Explore extensive ranges of Wolfspeed semiconductors and power components on EnvMart for advanced industrial and commercial applications.
