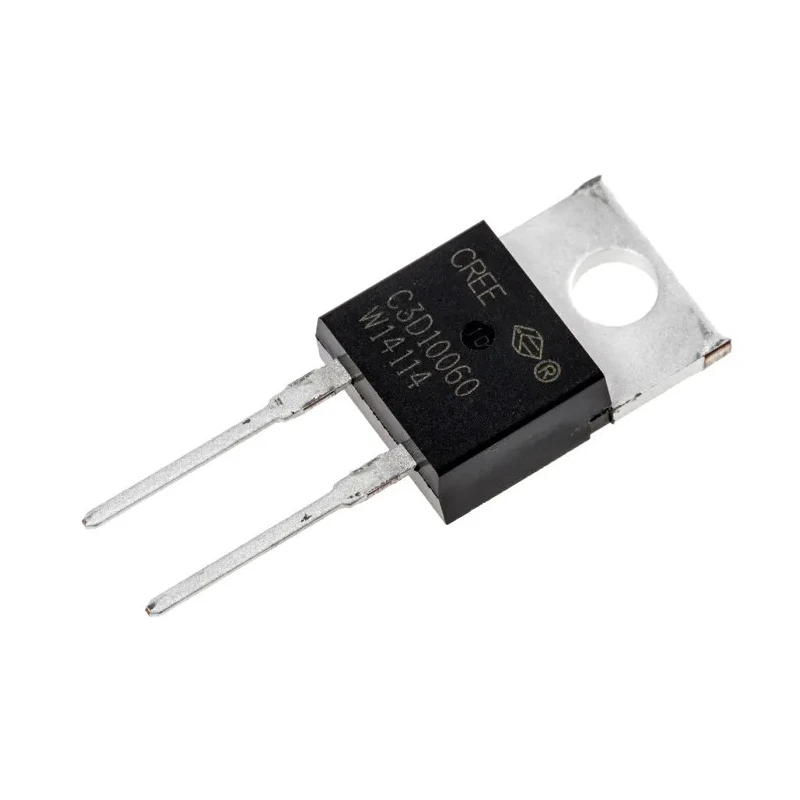

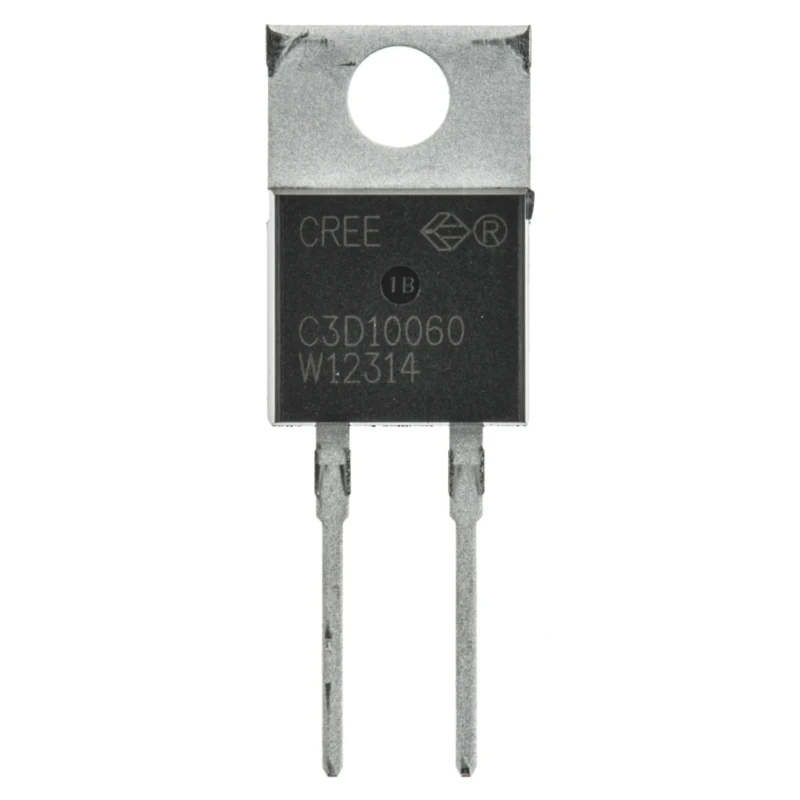

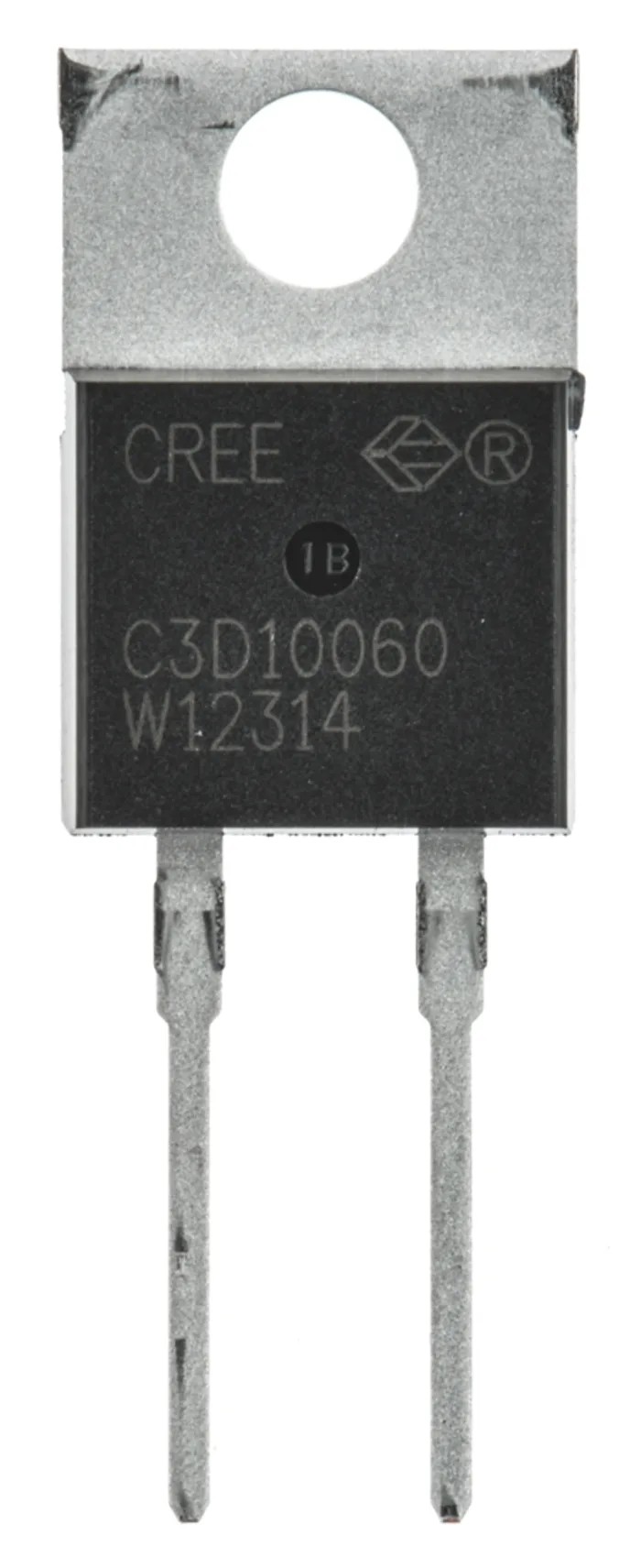

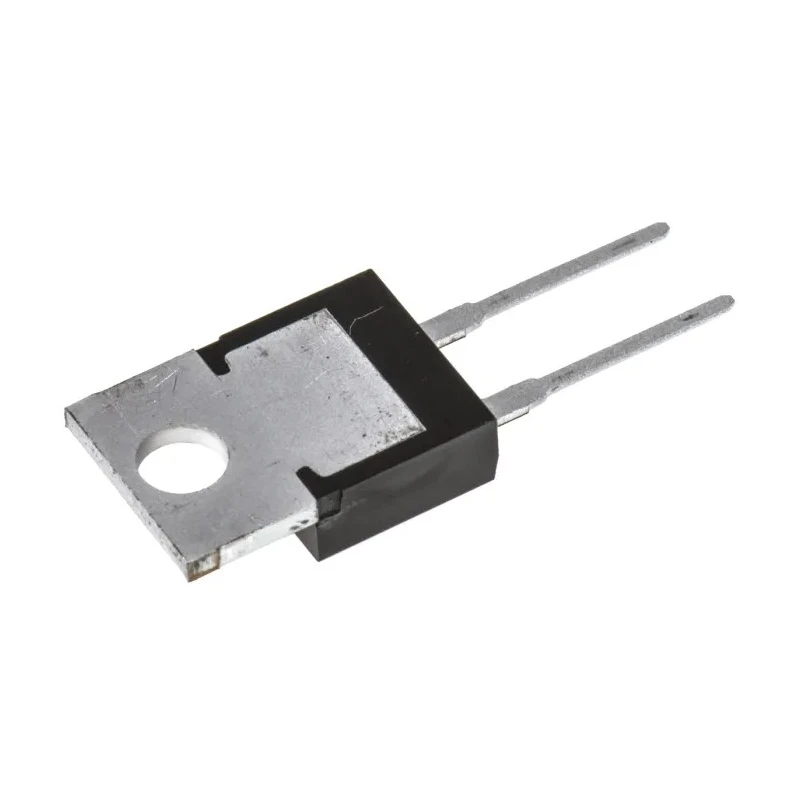

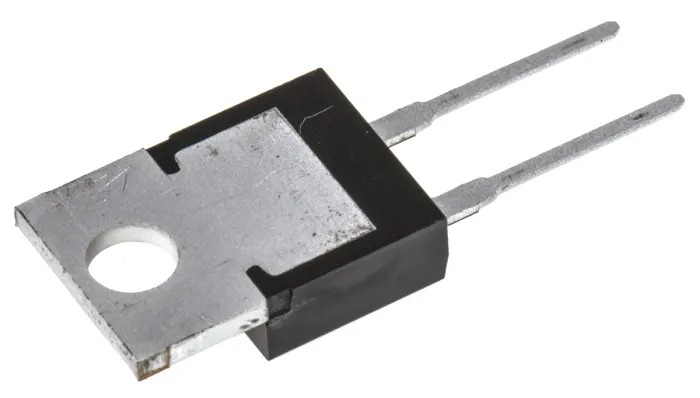

Wolfspeed 600 V 10 A Schottky Diode Single Z-Rec Silicon Carbide Through Hole TO-220 Package C3D10060A

Wolfspeed C3D10060A is a high-performance Silicon Carbide (SiC) Schottky diode designed for industrial and commercial electronic applications requiring high efficiency and reliability. This single diode in a TO-220 through-hole package is rated for 600 V peak reverse repetitive voltage and a maximum continuous forward current of 10 A, making it ideal for high voltage and high temperature environments.

Utilizing the advanced Z-Rec technology, it exhibits significant improvements over standard Schottky barrier diodes including zero reverse recovery current, extremely fast switching times, and temperature-independent switching behavior. These features reduce power loss and minimize heatsink requirements, enhancing overall system efficiency.

The C3D10060A diode operates reliably over a wide temperature range from -55°C to 175°C and has a peak non-repetitive forward surge current rating of 250 A. Its compact physical dimensions (15.62 mm height, 10.41 mm length, and 4.7 mm width) and industry-standard TO-220 package allow for easy integration into power modules and circuits.

This diode is well suited for high efficiency switch-mode power supplies, high-speed inverters, and power factor correction (PFC) boost applications in industrial, automotive, and power management systems. The positive temperature coefficient forward voltage characteristic permits paralleling multiple devices without risk of thermal runaway.

Features a through hole mount on a TO-220 package. Silicon Carbide Z-Rec Schottky diode construction for enhanced efficiency and thermal performance. Maximum continuous forward current of 10 A with peak reverse repetitive voltage rating of 600 V.

Extremely low forward voltage drop (max 2.4 V), reducing power dissipation. Wide operating temperature range from -55°C up to 175°C ensures industrial grade reliability. Compact package dimensions: height 15.62 mm, length 10.41 mm, width 4.7 mm.

Peak non-repetitive forward surge current rating of 250 A for transient robustness. Complies with automotive standard AEC-Q101. Manufactured in China, ensuring quality and consistency. Set contains one Wolfspeed C3D10060A diode supplied in tube packaging suitable for manufacturing insertion.
