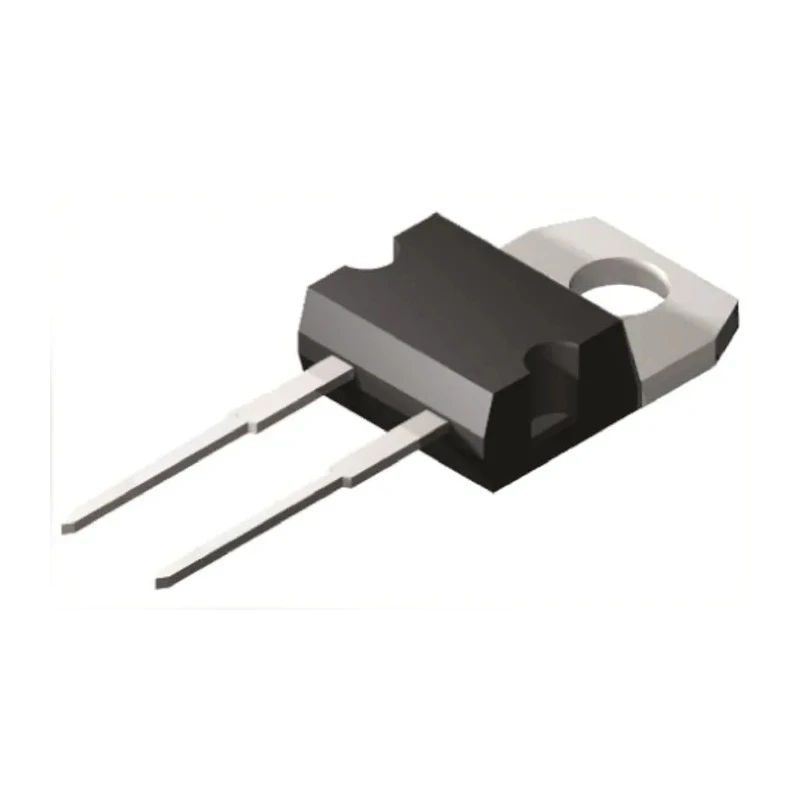

Wolfspeed 1200 V 14 A Schottky Diode 2-Pin TO-220 Package C4D10120A

Wolfspeed C4D10120A Schottky Diode is a high-performance Silicon Carbide (SiC) device designed for industrial and electronic applications requiring high efficiency and durability. This diode features a 1200 V peak repetitive reverse voltage and a maximum continuous forward current of 14 A, housed in a 2-pin TO-220 through-hole package for easy mounting.

Its Z-Rec series technology delivers zero reverse recovery current and forward recovery voltage, enabling temperature-independent switching behavior that enhances performance at high switching frequencies. The device exhibits extremely fast switching with minimal power losses and a positive temperature coefficient forward voltage, reducing the risk of thermal runaway and making it suitable for paralleling in circuits.

Engineered for use in switch-mode power supplies, high-speed inverters, and power factor correction (PFC) boost diode applications, the Wolfspeed C4D10120A allows for a reduction in heatsink size due to its superior thermal conductivity. It also maintains stable performance between -55°C minimum operating temperature and 175°C maximum operating temperature.

The diode’s compact dimensions of approximately 15.62 mm height, 10.41 mm length, and 4.7 mm width facilitate integration into various electronic assemblies. With a peak non-repetitive forward surge current rating of 71 A, the device withstands transient overload conditions effectively.

High efficiency silicon carbide Schottky diode for high-voltage applications. Zero reverse recovery current and temperature-independent switching behavior. Maximum continuous forward current rating of 14 A with 1200 V peak reverse voltage.

Extremely fast switching with minimal losses and positive temperature coefficient. Operating temperature range from -55°C to 175°C ensures reliability. Compact 2-pin TO-220 package suitable for through-hole mounting. Reduction in heatsink requirements due to improved thermal conductivity.

Peak non-repetitive forward surge current rating of 71 A. Optimized for power factor correction boost diode applications. This Wolfspeed Schottky diode is manufactured in China and aligns with high industrial standards to deliver robust performance in semiconductor applications.
