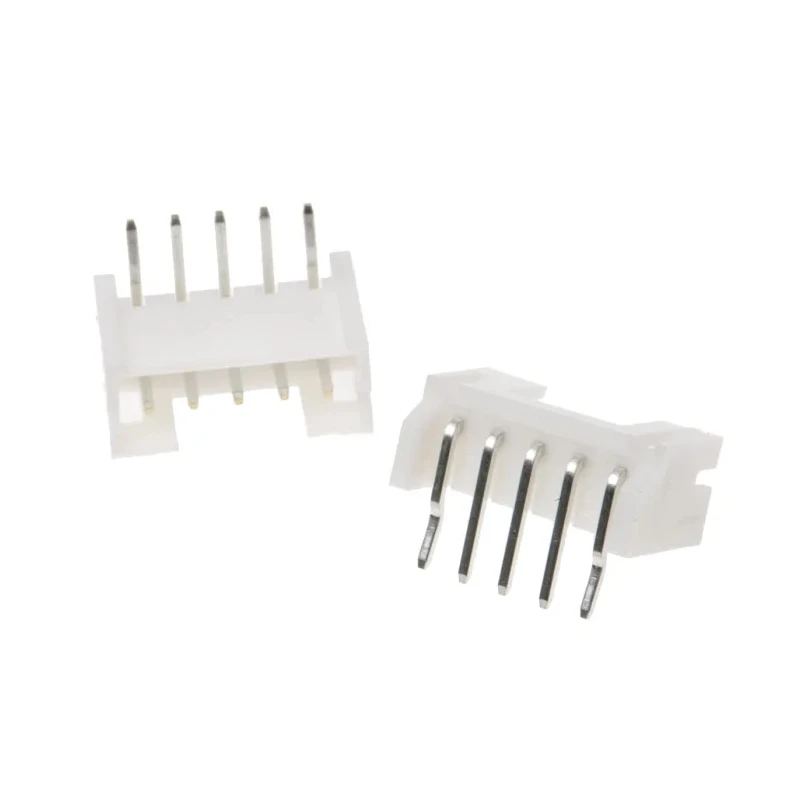

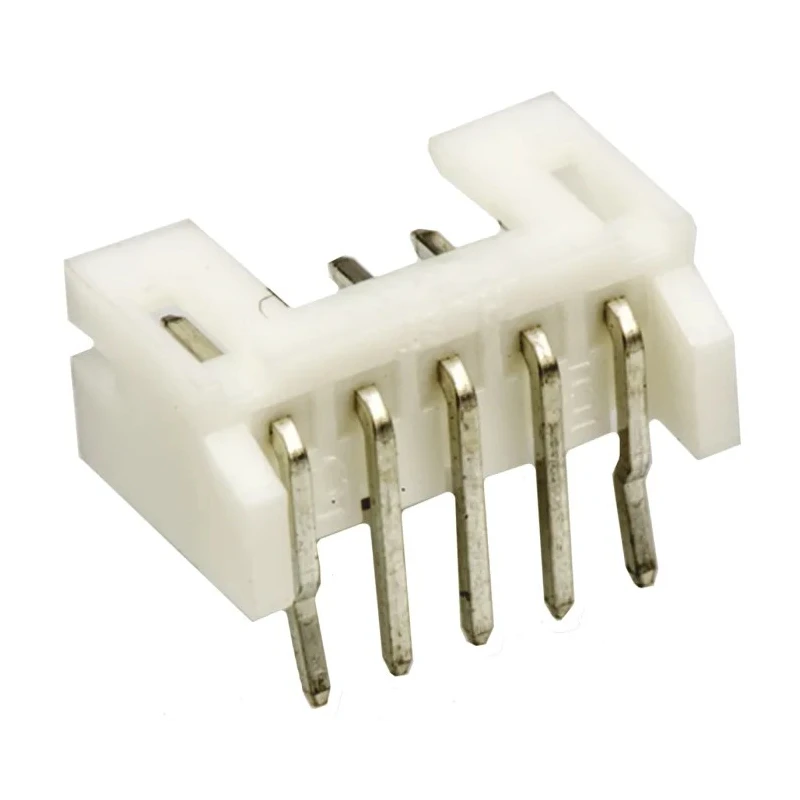

JST PH Series Right Angle Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded S5B-PH-K-S(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST PH Series Right Angle Through Hole PCB Header, 5 Contacts, 2 mm Pitch, 1 Row, Shrouded S5B-PH-K-S(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	100V
Brand	JST
Orientation	Right Angle
Current	2A
Model	S5B-PH-K-S(LF)(SN)
Mount Type	Through Hole
Housing Material	Polyamide
Contact Material	Brass
Series	PH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.4mm

Key Features

The connector features a right angle orientation for PCB board mounting.
It is shrouded for enhanced protection and insulation.
The housing is made of durable polyamide material ensuring high reliability.
Contacts are brass material plated with tin for corrosion resistance.
Suitable for currents up to 2A and voltages up to 100V.
Designed for through hole mount using solder termination type for secure attachment.
Operates reliably within temperature range of -25°C to 85°C.
Tail pin length and mating pin length both are precisely 3.4 mm.

Product Description

JST S5B-PH-K-S(LF)(SN) is a right angle through hole PCB header from the PH Series, designed for wire-to-board applications with a 2 mm pitch and featuring 5 contacts in a single row. It is a shrouded header, offering reliable insulation and protection, making it ideal for compact, high-density PCB connections in industrial and electronic equipment.

The housing is constructed from high-quality polyamide, known for its durability and electrical insulating properties. Contacts are made from brass and plated with tin, which provides excellent corrosion resistance and low contact resistance. This connector supports currents up to 2 amps and maximum voltage of 100 volts, suitable for a variety of electronic circuits.

The product is designed for through hole mounting with solder termination type, ensuring secure mechanical and electrical connection to printed circuit boards. The tail and mating pin lengths are both 3.4 mm, optimized for secure mating.

It operates reliably within a temperature range from -25°C up to 85°C, suitable for diverse environmental conditions encountered in industrial and commercial electronics.

Applications include electronic devices, industrial control systems, communication equipment, and other PCB-based assemblies where a compact, robust, and high-quality connector is required.

The connector features a right angle orientation for PCB board mounting. It is shrouded for enhanced protection and insulation. The housing is made of durable polyamide material ensuring high reliability. Contacts are brass material plated with tin for corrosion resistance.

Suitable for currents up to 2A and voltages up to 100V. Designed for through hole mount using solder termination type for secure attachment. Operates reliably within temperature range of -25°C to 85°C. Tail pin length and mating pin length both are precisely 3.4 mm.
