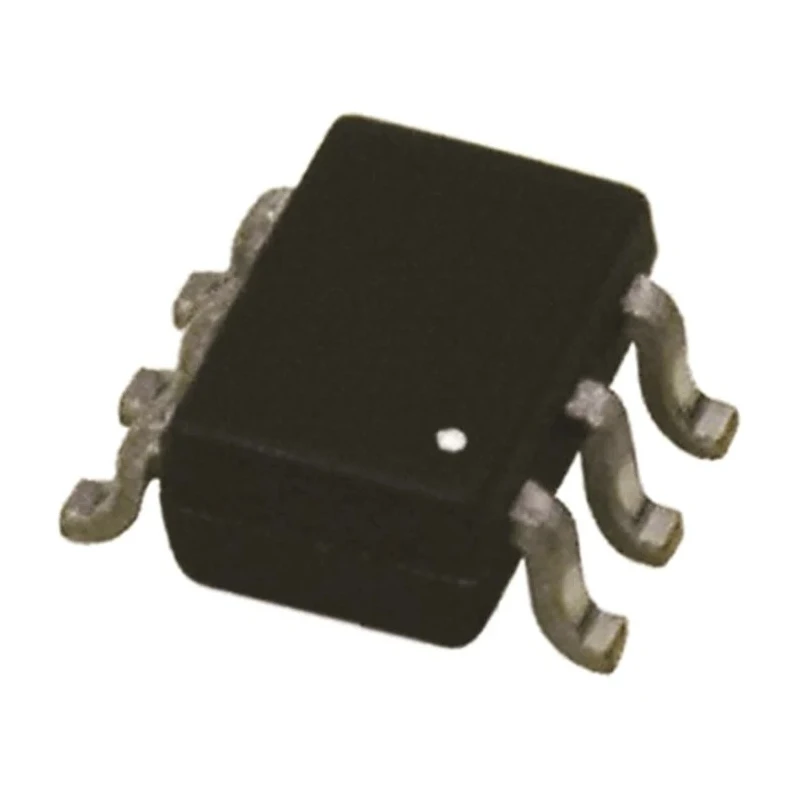

DiodesZetex Digital Transistor, 100 mA NPN + PNP, 50 V, 6-Pin SOT-363 DCX114EU-7-F

DiodesZetex DCX114EU-7-F digital transistor is a dual resistor dual digital transistor combining NPN and PNP transistor polarity in a compact 6-pin SOT-363 surface mount package. It features an isolated transistor configuration, designed for surface mounting in compact electronic circuits.

This device supports a maximum DC collector current of 100 mA and maximum collector-emitter voltage of 50 V, with power dissipation up to 200 mW. It exhibits a minimum DC current gain (hFE) of 30 and operates efficiently with transition frequency up to 250 MHz, making it suitable for wide range of digital switching and amplification tasks.

The transistor can operate reliably in temperature conditions ranging from -55°C to 150°C, providing robustness under demanding industrial or automotive environments. With dimensions of 2.2 mm length, 2.2 mm width, and 1.1 mm height, it offers a compact footprint for space-efficient circuit designs. The product meets the AEC-Q101 automotive standard, ensuring durability and quality compliance for automotive and other high-reliability applications.

DiodesZetex digital transistors are resistor-equipped bipolar transistors designed to be directly driven from digital sources without additional external components, simplifying circuit design and enhancing reliability.

The device comes in a compact 6-pin surface mount SOT-363 package suitable for space-saving designs. It has isolated transistor configuration with dual resistor integrated digital transistors. Maximum power dissipation is 200 mW enabling reliable operation under moderate loads.

Operating temperature range spans from -55°C to 150°C, suitable for harsh industrial environments. The minimum DC current gain (hFE) is 30 ensuring adequate amplification for digital switching. Maximum transition frequency is 250 MHz, allowing high-speed switching applications.

Small form factor dimensions: length 2.2 mm, width 2.2 mm, height 1.1 mm. Automotive standard compliance with AEC-Q101 certification ensures durability for automotive applications.

These Digital Transistors are widely used in electronics manufacturing, industrial automation, automotive electronics, and other commercial electronic systems requiring reliable bipolar transistor switching with integrated bias resistors.
