Nexperia Digital Transistor 100 mA NPN 50 V 3-Pin UMT PDTC114YU,115

Free Delivery in India | Lowest Global Shipping Charges

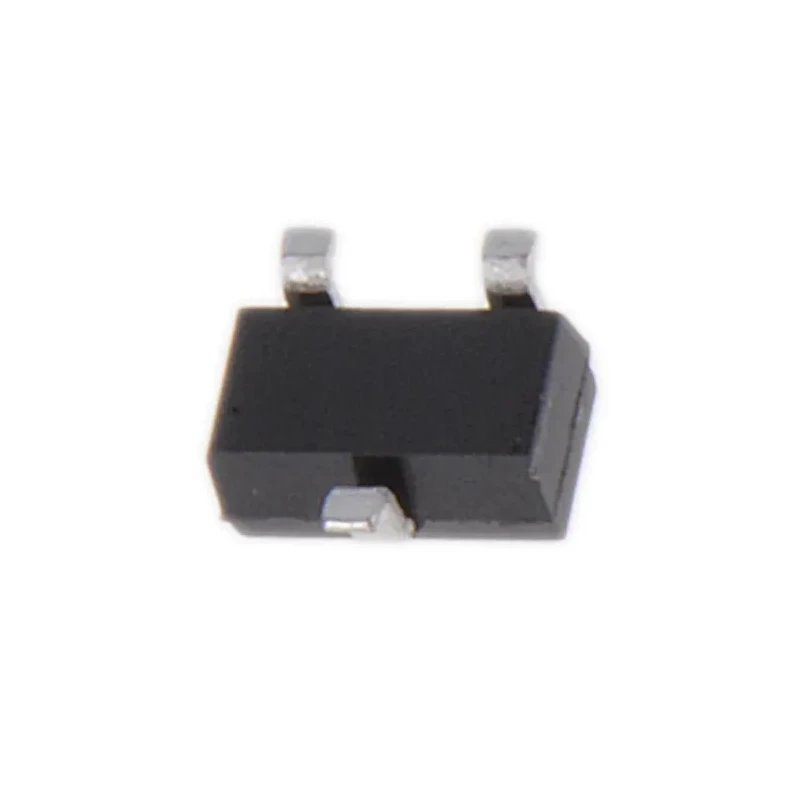

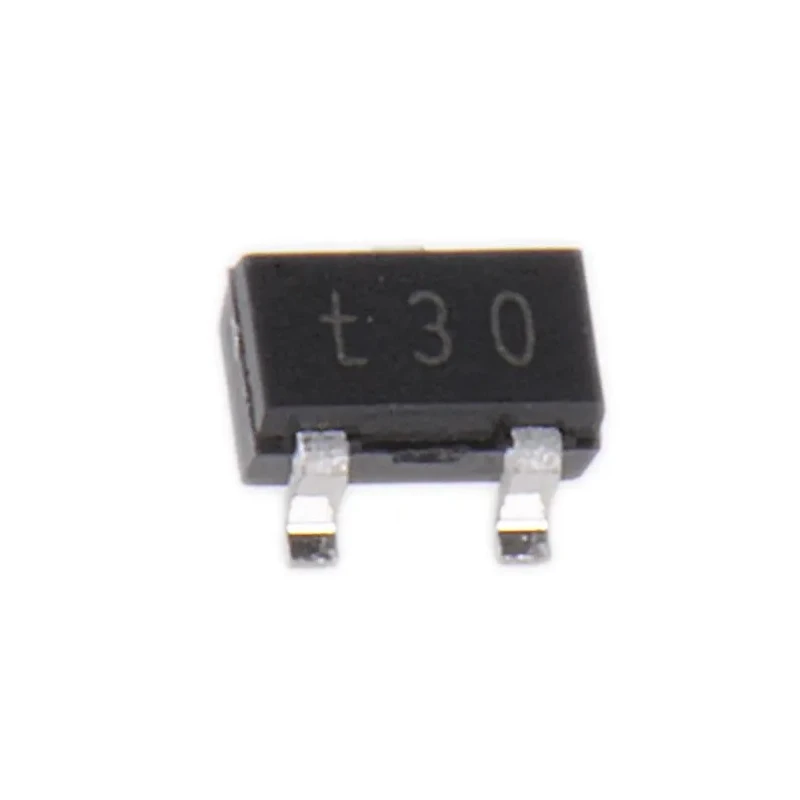

Nexperia Digital Transistor 100 mA NPN 50 V 3-Pin UMT PDTC114YU,115

Name: Nexperia Digital Transistor 100 mA NPN 50 V 3-Pin UMT PDTC114YU,115
Brand: Nexperia
SKU: 122872
Price: 0.03 USD
Availability: InStock



Category Digital Transistor Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	PDTC114YU,115
Width	2.2mm
Mount Type	Surface
Series	PDTC114Y
Maximum Operating Temperature	150°C
Package Type	UMT
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Single
Maximum Transition Frequency ft	230MHz

Key Features

Supports a maximum DC collector current of 100 mA.
Maximum collector emitter voltage is rated at 50 V.
Equipped with a single transistor configuration in an easy-to-mount surface package.
Features a minimum DC current gain of 100 ensuring reliable switching performance.
High maximum operating temperature up to 150°C ensures durability under heavy use.
Compact dimensions with 2.2mm length, 2.2mm width, and 1.1mm height for space-saving designs.
Compliance with RoHS standards and automotive AEC-Q101 qualification for quality assurance.
Maximum power dissipation of 200 mW and transition frequency of 230 MHz for efficient operation.

Product Description

Nexperia PDTC114YU,115 digital transistor is a high-performance NPN transistor designed for discrete semiconductor applications, featuring a maximum collector emitter voltage of 50 V and a maximum DC collector current of 100 mA. The device uses a 3-pin UMT package with surface mount technology providing compact form and ease of integration in electronic circuits.

This transistor has a single transistor configuration equipped with integrated resistor(s) facilitating direct digital source driving. It exhibits a minimum DC current gain (hFE) of 100, ensuring efficient switching and amplification capabilities. The transistor operates reliably at temperatures ranging from -65°C to 150°C, making it suitable for harsh operating environments.

Its maximum power dissipation is 200 mW with a transition frequency up to 230 MHz, supporting usage in high-frequency applications. The device has a height of 1.1 mm, length and width measuring 2.2 mm each, making it suitable for designs where pcb real estate is limited. This transistor complies with RoHS regulations and meets the automotive standard AEC-Q101, indicating its robustness and quality for automotive and industrial uses.

Nexperia digital transistor PDTC114YU,115 is widely used in industrial, automotive, communications, and consumer electronics for signal amplification and switching tasks. Its integrated resistors simplify the driving circuitry and enhance noise immunity.

Supports a maximum DC collector current of 100 mA. Rated for maximum collector emitter voltage of 50 V. Single transistor configuration with integrated resistors for direct digital driving. Minimum DC current gain of 100.

Operating temperature range from -65°C to 150°C. Compact 3-pin UMT surface mount package. Compliant with RoHS and AEC-Q101 automotive standards. Maximum power dissipation of 200 mW and transition frequency of 230 MHz. Dimensions: Length 2.2 mm, Width 2.2 mm, Height 1.1 mm.

Made in Malaysia. Explore more Nexperia semiconductor products and Digital Transistors in the EnvMart catalog for your industrial, automotive, and electronics design needs.
