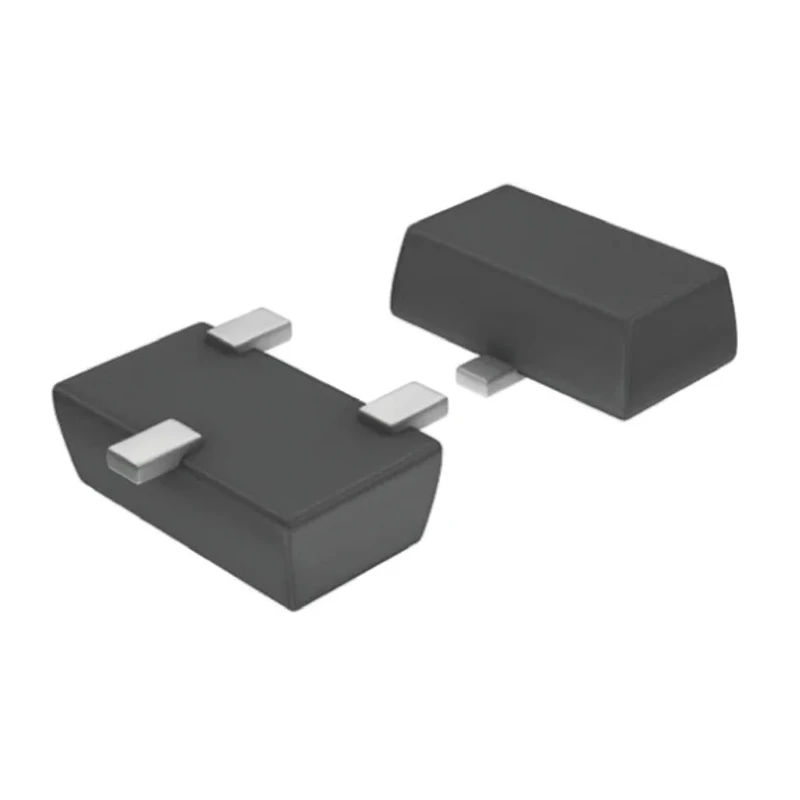

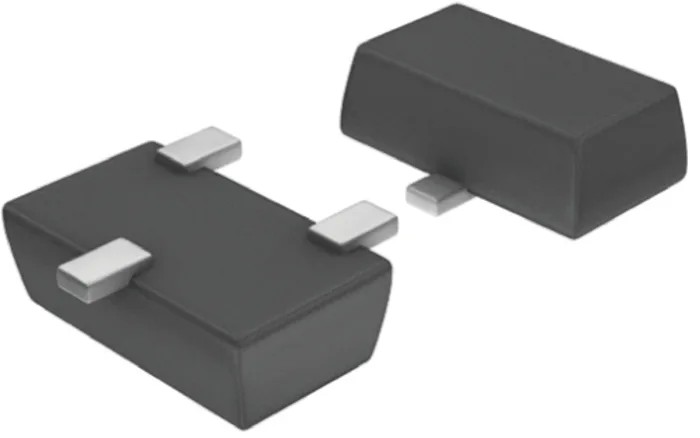

onsemi Digital Transistor 50 V NPN Surface SOT-723, 3-Pin DTC114YM3T5G

onsemi DTC114YM3T5G Digital Transistor is a compact and efficient NPN bipolar transistor equipped with integrated resistors, offered in the SOT-723 surface mount package and featuring a 3-pin design. The device supports a maximum collector-emitter voltage of 50 V and a power dissipation rating of 297 mW, suitable for low power switching and amplification in digital circuits.

This transistor incorporates dual resistors, which allow it to be driven directly from digital logic outputs without the need for additional external components, enhancing circuit simplicity and reliability. The compact physical dimensions of 1.25 mm length, 0.85 mm width, and 0.55 mm height facilitate space-saving circuit board layouts in electronic applications.

Rated for reliable operation up to 150°C and compliant with automotive AEC-Q101 standards, this component is suitable for automotive, industrial, and consumer electronics requiring durable and high-quality semiconductor devices. The transistor’s minimum DC current gain of 80 makes it efficient for amplification purposes while maintaining low power consumption.

Typical use cases include digital switching, signal amplification, and interface circuits in various industrial, automotive, and consumer electronic products. The surface mount package type supports modern automated assembly line production enhancing manufacturing efficiency.

Maximum collector-emitter voltage: 50 V. Package type: SOT-723 surface mount. Transistor polarity: NPN. Integrated dual resistor for digital driving. Power dissipation: 297 mW. Operating temperature up to 150°C. Minimum DC gain: 80.

Pin count: 3. Dimensions: 1.25 x 0.85 x 0.55 mm (L x W x H). Automotive standard: AEC-Q101 compliant.

This product is designed for advanced electronics manufacturing processes and applications in industrial, automotive, and consumer sectors. Explore other semiconductor components and Digital Transistors on EnvMart for your project needs.
