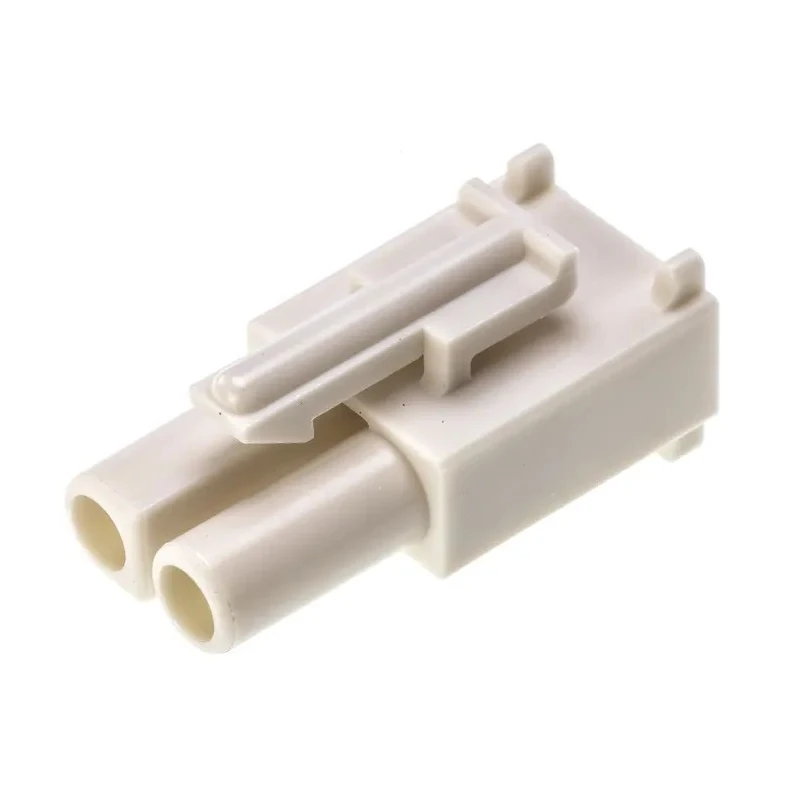

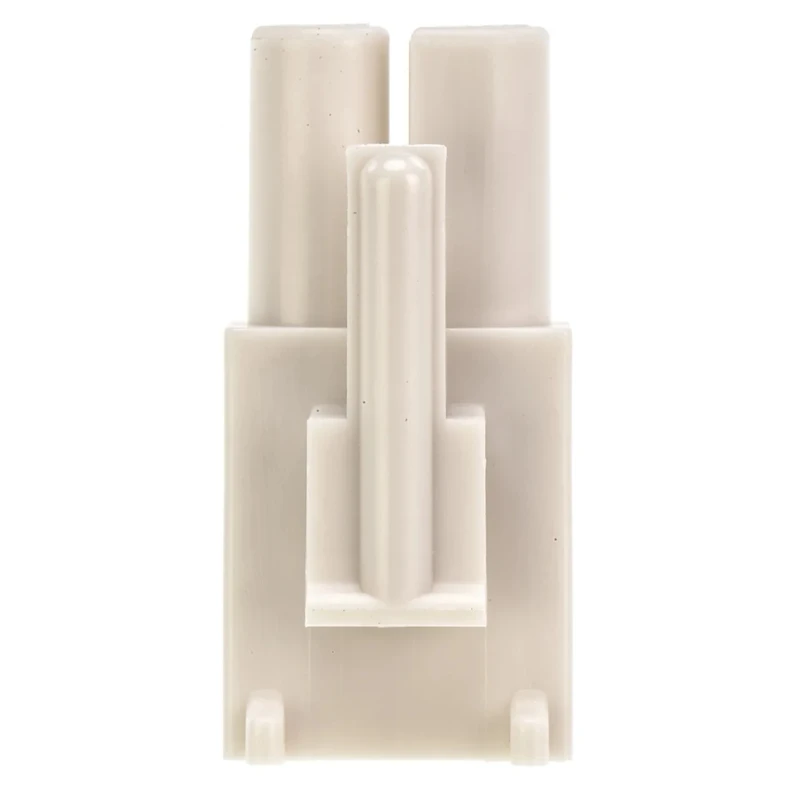

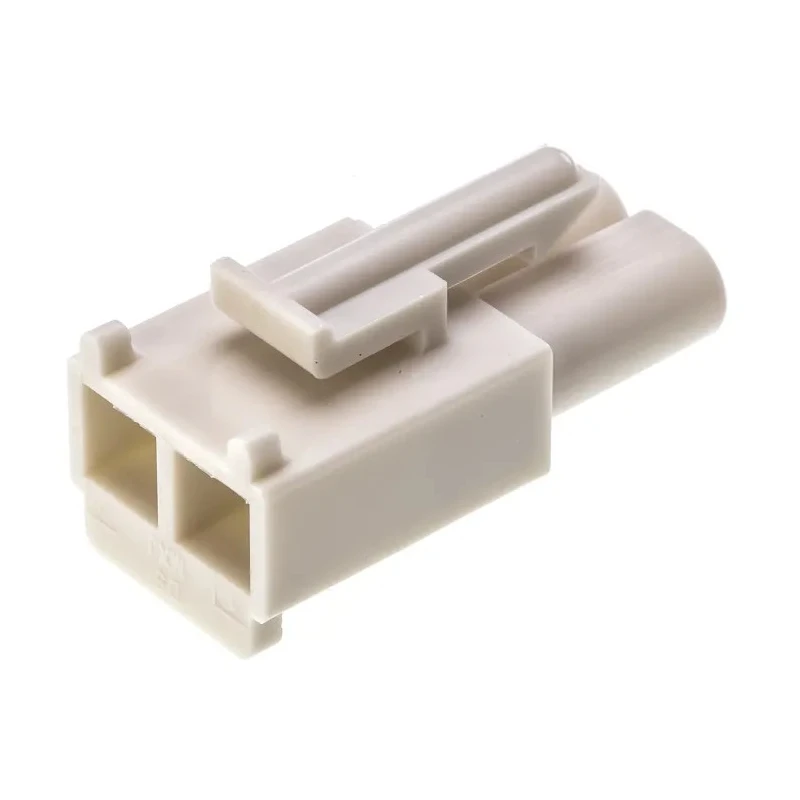

Molex Standard .093" Female Connector Housing 6.7 mm Pitch 2 Way 1 Row Straight 39-03-6025
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 14.3mm |
| Width | 15.1mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Standard .093" |
| Number of Rows | 1 |
| Pitch | 6.7mm |
| For Use With | 2CKT Receptacle |
| Pay online using | Or choose to pay later via bank transfer |
| Number of Contacts | 2 |
| Connector Gender | Female |
Key Features
- The connector housing has a pitch of 6.7 mm for precise alignment.
- Constructed with durable nylon housing material ensuring electrical insulation and robustness.
- Supports 2 contacts with female connector gender for secure connections.
- Features positive locking and polarization to prevent mismating.
- Compatible with 2CKT receptacle connectors and suitable for wire to board and wire to wire configurations.
- Designed for use in applications such as refrigerators, microwaves, desktop computers, motherboards, and hard disk drives.
- Fully isolated terminals provide safety and performance benefits.
Product Description
Molex 39-03-6025 Standard .093" Female Connector Housing is a cable mount connector housing featuring a 6.7 mm pitch, 2 contact points arranged in a single row, and a straight orientation. Designed with a robust nylon housing material, this connector housing offers exceptional durability and electrical insulation for use in industrial and consumer electronic applications.
The 3191 series housings accept industry standard 2.36 mm diameter .093" male pin and female socket connectors, making them highly versatile for medium power applications found in household appliances such as refrigerators and microwaves. Additionally, their application extends to data communications including desktop computers, motherboards, and hard disk drives.
Key characteristics include positive locking and polarization to ensure secure mating, fully isolated terminals to prevent electrical faults, and compatibility with wire to board and wire to wire configurations. The connector is designed to mate with specific connectors in the 3191 and 5219 series, enhancing system integration and reliability.
The connector housing offers a 6.7 mm pitch spacing for reliable contact alignment. Nylon housing material provides mechanical strength and insulation. The 2 way, 1 row female connector design facilitates effective electrical connections.
Positive locking and polarization features enhance connection security and accuracy. Its cable mount type and straight orientation adapt to various assembly needs. Compatible with a variety of crimp terminals and crimp tools for ease of installation.
The product originates from Japan, ensuring quality manufacturing standards.
This Connector Housing is ideal for use in industrial, commercial, and consumer electronics where reliable power and signal connections are required. The choice of materials and design details make it a dependable component for assembly lines and electronic device manufacturing environments.
Explore more high-quality connector solutions in EnvMart's Electronics & Electricals category for your power connector and PCB connector needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 6.7 mm, allowing for precise alignment of contacts.
This model supports 2 contacts, arranged in a single row configuration.
The connector housing is constructed from durable nylon material, providing electrical insulation and robustness.
This housing features a female connector gender, designed for secure connections.
The orientation of this connector housing is straight, suitable for various assembly needs.
The dimensions of this connector housing are 14.3 mm in length and 15.1 mm in width.
This connector housing is suitable for applications in refrigerators, microwaves, desktop computers, motherboards, and hard disk drives.
This housing is compatible with 2CKT receptacle connectors and specific connectors in the 3191 and 5219 series.
This model includes positive locking and polarization features to prevent mismating and enhance connection security.
This connector housing supports a cable mount type, facilitating easy installation.
This connector housing originates from Japan, ensuring quality manufacturing standards.
The series designation of this connector housing is Standard .093", indicating its compatibility with .093" male pin and female socket connectors.
