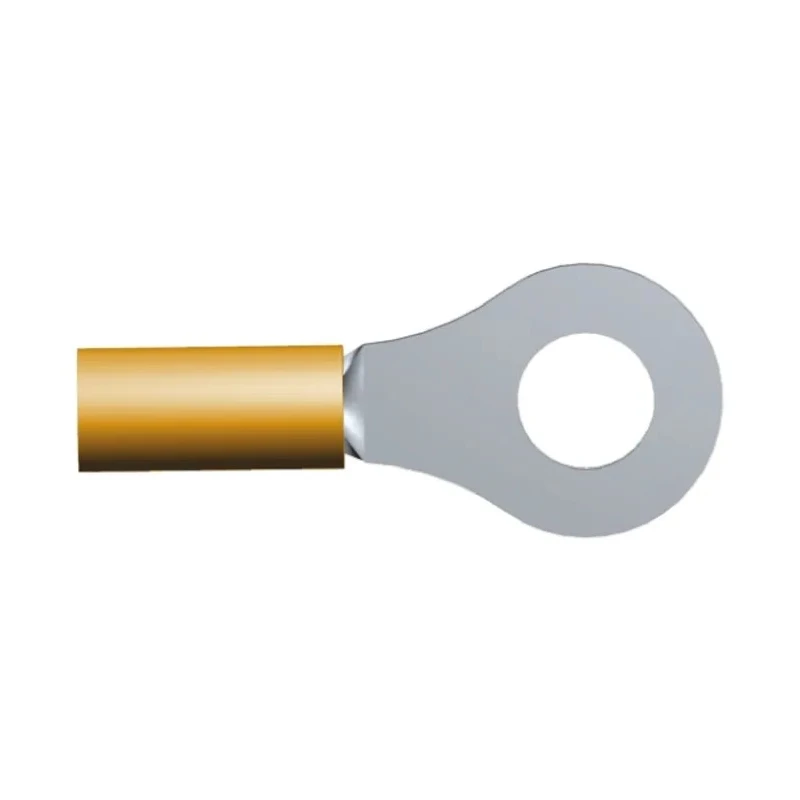

TE Connectivity DG STRATO-THERM Insulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG Orange 321897
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Orange |
| THICKNESS | 0.79mm |
| Model | 321897 |
| Insulation | Insulated |
| Overall Length | 20.22mm |
| Contact Material | Nickel |
| Series | DG STRATO-THERM |
| Maximum Operating Temperature | 649°C |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5458PBrand: TE ConnectivityManufacturers Part No.: 321897 |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with solid nickel contact material for high conductivity.
- Features insulation support allowing use in high temperature environments up to 649°C.
- Outer ring diameter measures 7.92 mm and inner ring diameter 4.34 mm for precise stud fit.
- Overall length of terminal is 20.22 mm with a thickness of 0.79 mm.
- Compatible with wire sizes from 0.26 mm² to 1.65 mm² (22 AWG to 16 AWG).
- Color-coded orange insulation sleeve for easy identification.
- Designed for reliable crimp termination maximizing electrical contact area.
- Meets RoHS standards ensuring compliance with environmental regulations.
Product Description
TE Connectivity 321897 DG STRATO-THERM insulated ring terminal is engineered for demanding electrical and industrial applications where high temperature resistance is essential. This insulated ring terminal fits a M4 stud and supports wire sizes from 22 AWG to 16 AWG, providing a reliable and secure electrical connection.
Constructed from solid nickel contact material, it offers excellent conductivity and durability. The orange insulation sleeve is made of high temperature resistant material ensuring performance up to 649°C, suitable for environments where standard insulated crimps fail.
The terminal features an outer ring diameter of 7.92 mm and an inner ring diameter of 4.34 mm along with a thickness of 0.79 mm, guaranteeing a precise and secure fit on the stud. The overall length of 20.22 mm optimizes connector space while maintaining mechanical strength.
This product is ideal for industrial, manufacturing, construction, HVAC, and electrical wiring applications requiring high reliability and heat tolerance. Its color-coded insulation facilitates quick wire gauge selection and installation.
DG STRATO-THERM terminals use a diamond grip crimping system that forces the wire into serrations, maximizing electrical contact area for optimal conductivity. These ring terminals comply with RoHS environmental standards, ensuring they are free from hazardous substances.
Solid nickel contact material for durability. Supports wire sizes from 22 AWG to 16 AWG (0.26 mm² to 1.65 mm²). High temperature resistance up to 649°C. Insulated with orange color-coded sleeve. Outer ring diameter: 7.92 mm; inner ring diameter: 4.34 mm.
Overall length: 20.22 mm; thickness: 0.79 mm. Designed for secure M4 stud installation. Compliant with RoHS standards.
Set your projects apart with TE Connectivity’s high-quality DG STRATO-THERM insulated Ring Terminals for dependable electrical connections under extreme conditions. Explore more in the Wire Terminals & Splices category at EnvMart for compatible accessories and related components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It can operate at a maximum temperature of 649°C, making it suitable for high temperature environments.
This terminal supports wire sizes ranging from 22 AWG to 16 AWG, which corresponds to 0.26 mm² to 1.65 mm².
The outer ring diameter is 7.92 mm, the inner ring diameter is 4.34 mm, and the overall length is 20.22 mm with a thickness of 0.79 mm.
The contact material is solid nickel, which provides high conductivity and durability.
It features an orange insulation sleeve made of high temperature resistant material for enhanced performance.
This model is designed to fit an M4 stud size, ensuring a secure connection.
Yes, it meets RoHS standards, ensuring it is free from hazardous substances.
It uses a diamond grip crimping system that forces the wire into serrations, maximizing the electrical contact area for optimal conductivity.
The country of origin for this product is India.
It is suitable for industrial, manufacturing, construction, HVAC, and electrical wiring applications that require high reliability and heat tolerance.
The thickness of the terminal is 0.79 mm, which contributes to its mechanical strength.
The insulation sleeve is color-coded orange, which facilitates quick wire gauge selection and installation.
