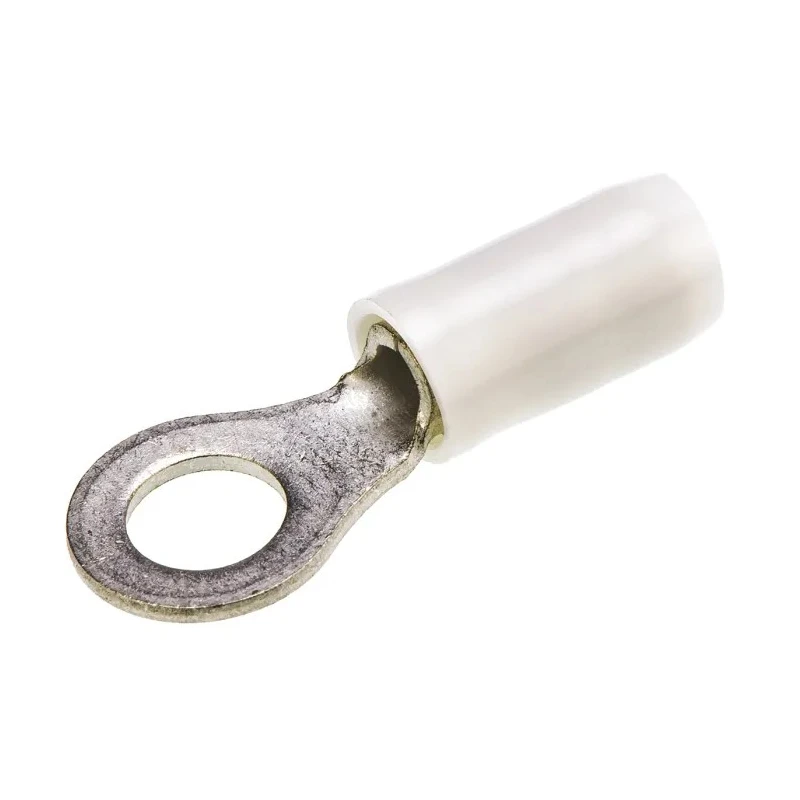

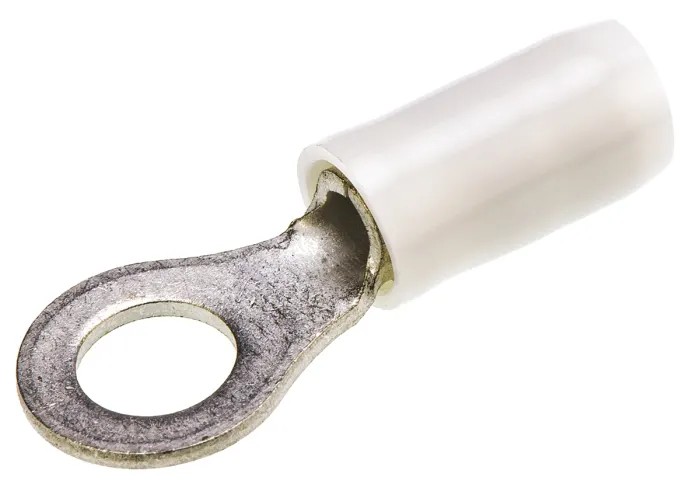

TE Connectivity PIDG Insulated Ring Terminal, M5 Stud Size, 14 AWG - 12 AWG Wire Size, Nylon Insulation, Red White 152872
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red, White |
| THICKNESS | 0.75mm |
| Model | 152872 |
| Insulation | Insulated |
| Overall Length | 22mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 710-5590PBrand: TE ConnectivityManufacturers Part No.: 152872 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.65mm² |
| Maximum Wire Size mm² | 3.45mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 12AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 5mm |
| Stud Size | M5 |
Key Features
- High conductivity copper body ensures excellent electrical performance.
- Copper sleeve improves wire insulation support and prevents fraying.
- Serrated wire barrel provides maximum contact and tensile strength after crimping.
- Colour coded red and white nylon insulation sleeves enable easy wire size identification.
- Funnelled wire entry allows easy and fast wire insertion during production.
- Supports wire sizes from 14 AWG minimum to 12 AWG maximum, suitable for a range of wiring applications.
- Maximum operating temperature is 105 degrees Celsius ensuring durability under thermal stress.
- Designed for uniform and reliable crimps with specialized tool dies.
Product Description
TE Connectivity 152872 PIDG Insulated Ring Terminal is engineered for reliable and uniform electrical connections, featuring an M5 stud size and compatible with 14 AWG to 12 AWG wire sizes. It includes a high conductivity copper body with a tin-plated contact surface for optimal electrical transmission and corrosion resistance. The nylon insulation sleeve is colour coded red and white for quick wire gauge identification, and the copper sleeve within enhances insulation support while preventing wire fraying.
The serrations inside the wire barrel ensure maximum contact and tensile strength after crimping, promoting stable mechanical connections in a variety of challenging environments. The funnelled entry design provides effortless wire insertion, facilitating efficient high-speed production applications.
This ring terminal is suitable for industrial, construction, automotive, aerospace, electrical panel, transportation, and manufacturing applications that require dependable wire terminations. The design meets requirements of MIL-T-7928, Type II, Class 1 and 2, offering quality assurance in demanding industry scenarios.
High conductivity copper body for effective electrical contact. Copper sleeve improves wire insulation support. Serrations in wire barrel enhance tensile and contact strength. Colour coded nylon insulation aids quick wire size identification.
Funnelled wire entry for easy insertion. Rated for maximum operating temperature of 105°C. Precision design supports uniform and reliable crimps. Complies with industry standards for reliability. Versatile usage across industrial, aerospace, automotive and electrical markets.
Designed for technicians and engineers who demand consistent wire crimp solutions, this PIDG insulated Ring Terminal from TE Connectivity demonstrates quality craftsmanship and application versatility. Browse the Electronics & Electricals category on EnvMart for more high-performance terminals and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports wire sizes from 14 AWG minimum to 12 AWG maximum, making it suitable for various wiring applications.
The stud size for this terminal is M5, which allows it to fit specific mounting applications.
It features a high conductivity copper body with a tin-plated contact surface and nylon insulation for enhanced durability and corrosion resistance.
The maximum operating temperature for this ring terminal is 105 degrees Celsius, ensuring it can withstand thermal stress in various environments.
It has a funnelled wire entry design that allows for easy and fast wire insertion, which is beneficial for high-speed production applications.
This terminal is insulated with nylon, which is colour coded red and white for quick wire gauge identification.
The overall length of this terminal is 22 mm, which is designed for compatibility with various applications.
The inner ring diameter is 5 mm and the outer ring diameter is 8.71 mm, allowing for specific fitment requirements.
It is suitable for industrial, construction, automotive, aerospace, electrical panel, transportation, and manufacturing applications that require reliable wire terminations.
The serrated wire barrel provides maximum contact and tensile strength after crimping, promoting stable mechanical connections.
The country of origin for this terminal is India, reflecting its manufacturing standards.
The thickness of this terminal is 0.75 mm, contributing to its overall structural integrity.
