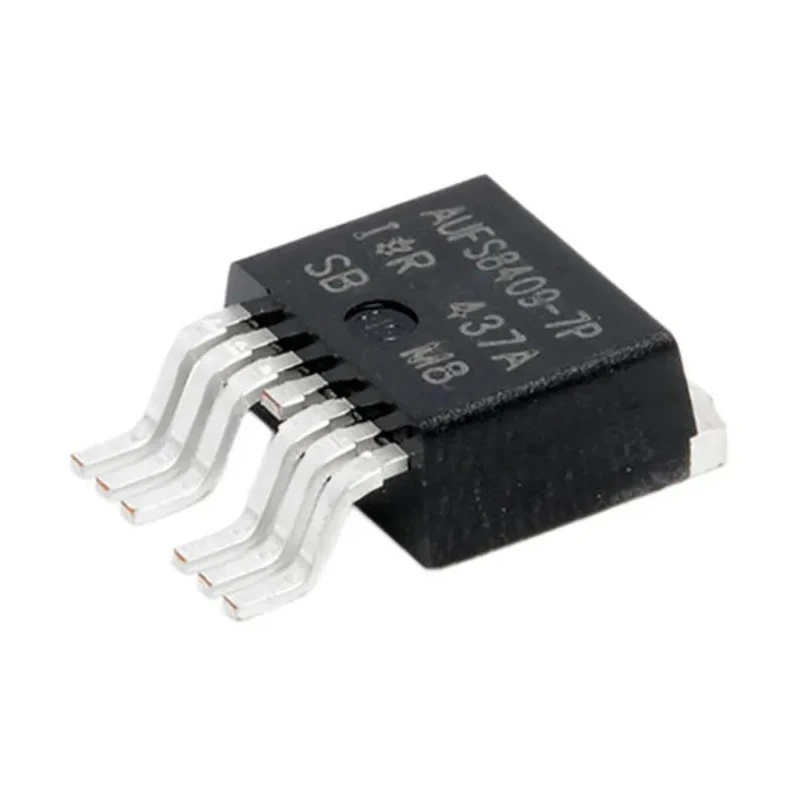

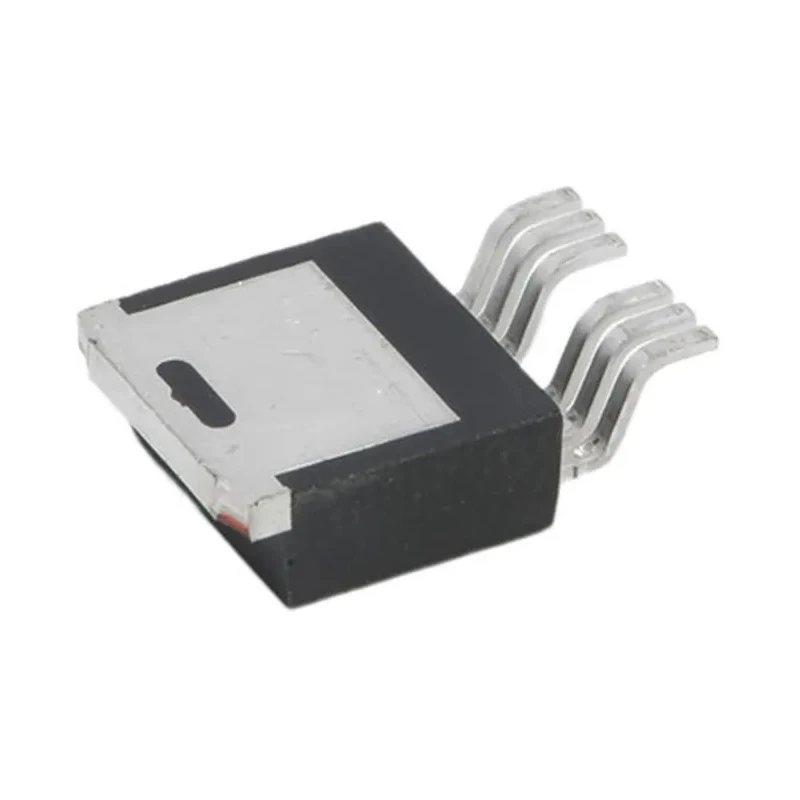

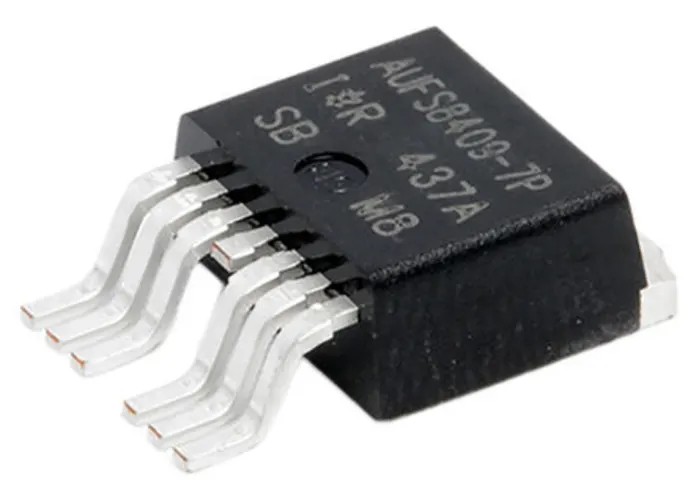

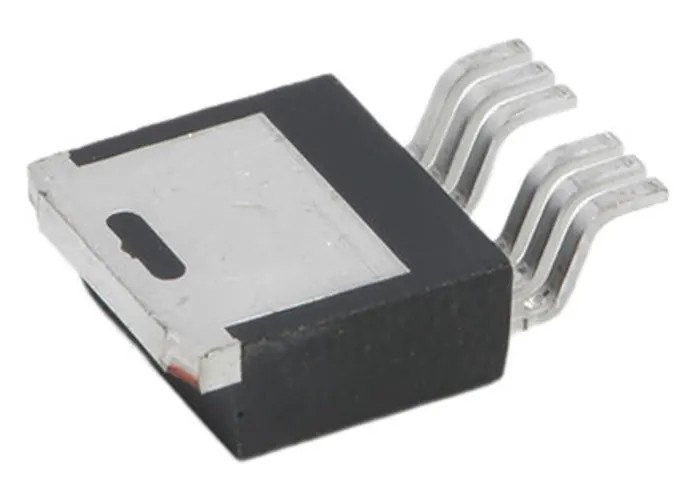

Infineon StrongIRFET N-Channel MOSFET 240A, 60V, Enhancement Mode, 7-Pin TO-263 IRFS7534TRL7PP

Infineon IRFS7534TRL7PP is a StrongIRFET series N-Channel MOSFET featuring a maximum continuous drain current of 240A and a maximum drain-source voltage of 60V. This enhancement mode MOSFET is housed in a 7-pin TO-263 surface mount package, measuring 10.67mm in length, 9.65mm width, and 4.83mm height, making it suitable for compact PCB designs.

The device exhibits a low maximum drain-source resistance of 1.95mΩ, minimizing conduction losses and improving efficiency in power management circuits. It supports a typical gate charge of 200nC at the gate-source voltage threshold, allowing efficient switching with minimal delay.

With a maximum power dissipation of 290W when mounted on appropriate PCBs and a maximum operating temperature of 175°C, the IRFS7534TRL7PP MOSFET is engineered for demanding environments such as automotive electronics, industrial automation, and power supply systems.

Its robust avalanche rating and gate-source voltage tolerance of ±20V ensure reliable operation under transient conditions and voltage spikes. The enhanced body diode characteristic further improves performance in synchronous rectifier and motor drive applications.

Low on-resistance reduces power loss and enhances efficiency. High current capability supports demanding power applications. Robust gate voltage limits ensure secure switching. Compact and standard TO-263 package facilitates easy PCB integration.

Suitable for brushed and BLDC motor drives, DC/DC converters, and AC/DC power circuits. This MOSFET is ideal for use in industrial electronic controls, power conversion systems, automotive electronics, and laboratory power supplies.
