JST Female Crimp Terminal for BL, HL, MWP, SL Connector Housings 22 AWG Min, 18 AWG Max SSF-21T-P1.4

Free Delivery in India | Lowest Global Shipping Charges

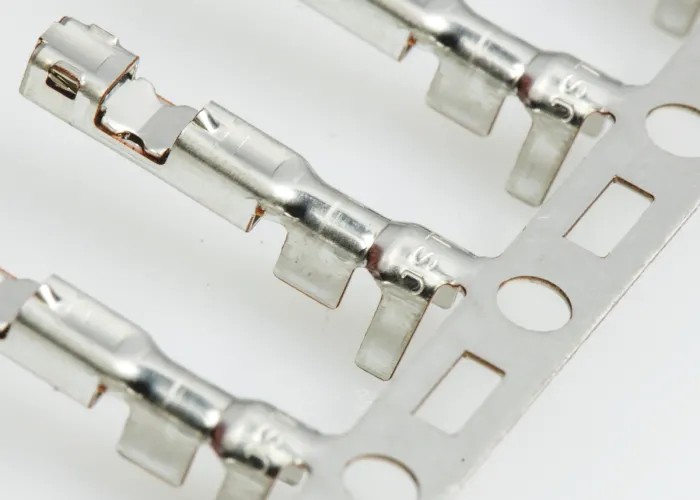

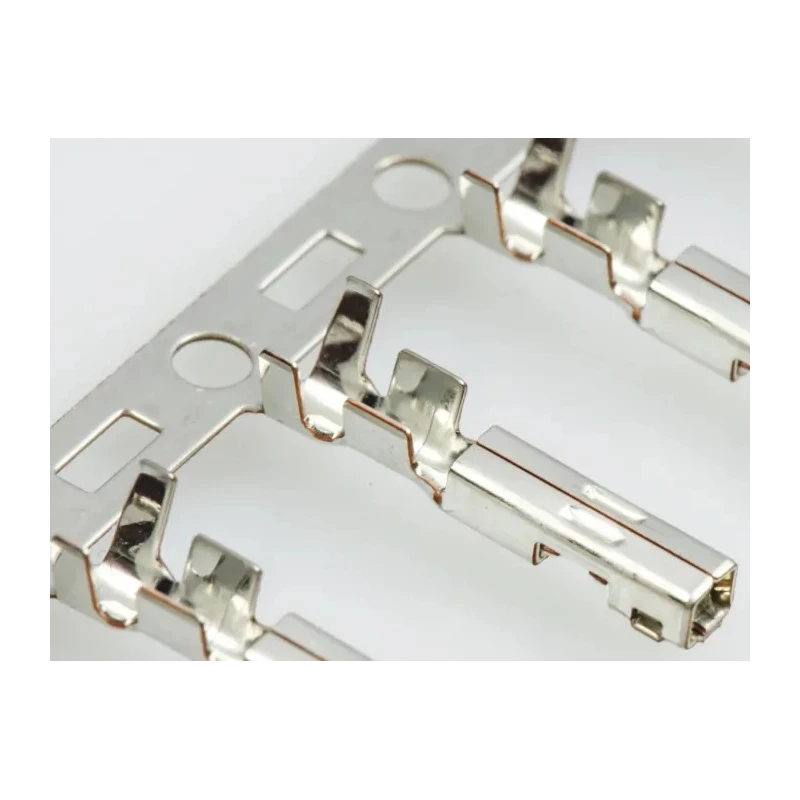

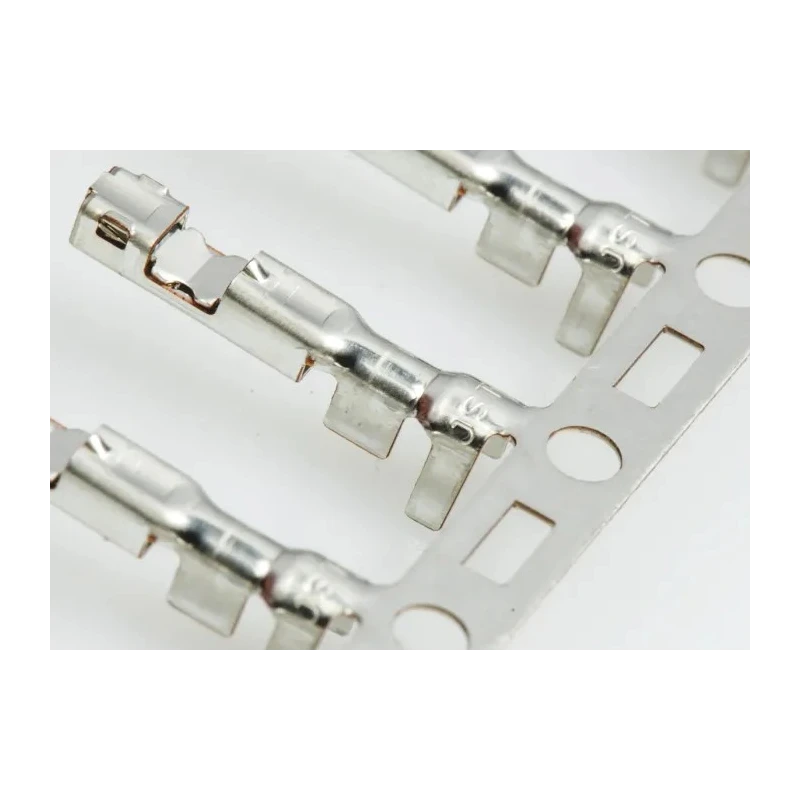

JST Female Crimp Terminal for BL, HL, MWP, SL Connector Housings 22 AWG Min, 18 AWG Max SSF-21T-P1.4



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	7A
Model	SSF-21T-P1.4
Gender	Female
Contact Material	Phosphor Bronze
Series	BL, HL, MWP, SL
Termination Type	Crimp
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-25°C
For Use With	BL, HL, MWP and SL Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	10mΩ
The HL Wire-to-Wire and Wire-to-Board Connector range from JST features	a contact with a low insertion force , housing lance, inner-housing lock, secondary retainers and a panel lock construction

Key Features

Designed for use with BL, HL, MWP, and SL connector housings.
Accepts wire size from 22 AWG (0.3mm²) minimum to 18 AWG (0.75mm²) maximum.
Constructed from phosphor bronze with tin plating for reliable conductivity.
Rated for current up to 7 amperes.
Termination type is crimp for secure wire attachment.
Operates within a temperature range of -25°C to 90°C.
Features low contact resistance of maximum 10 milliohms.
Designed for applications requiring reliable wire-to-wire or wire-to-board connections.

Product Description

JST SSF-21T-P1.4 female crimp terminal is engineered for precision and durability in electronic assemblies. Compatible with BL, HL, MWP, and SL series connector housings, this terminal supports wire gauges ranging from 22 AWG (0.3 mm²) minimum to 18 AWG (0.75 mm²) maximum. Constructed from phosphor bronze and plated with tin, it ensures optimal electrical conductivity and corrosion resistance.

With a maximum current rating of 7 amperes, the crimp termination provides secure mechanical and electrical connections suitable for varied industrial and commercial electronics applications.

This terminal maintains a low maximum contact resistance of 10 milliohms, enhancing signal performance and reliability in wire-to-wire and wire-to-board connections. Operating temperature tolerance from -25°C up to 90°C enables performance stability in demanding environments.

The JST HL series terminals feature low insertion force contacts, housing lances, inner-housing locks, secondary retainers, and panel lock constructions to assure secure and reliable mating in connectors.

Widely used in electronics manufacturing, assembly, and repair, these crimp terminals improve production efficiency by allowing ready insertion into machinery. Pair with the appropriate HL Series Crimp Hand Tool (stock number 688-0837) for optimal installation.

Designed for use with BL, HL, MWP, and SL connector housings. Supports wire sizes 0.3 - 0.75 mm² (22 - 18 AWG) with insulation diameter from 1.5 to 2.2 mm. Phosphor bronze contact material with tin plating for enhanced conductivity and durability.

Low contact resistance ensures signal integrity. Operates reliably in temperature ranges from -25°C to 90°C. Crimp termination type provides robust wire attachment. Facilitates efficient automated assembly processes.
