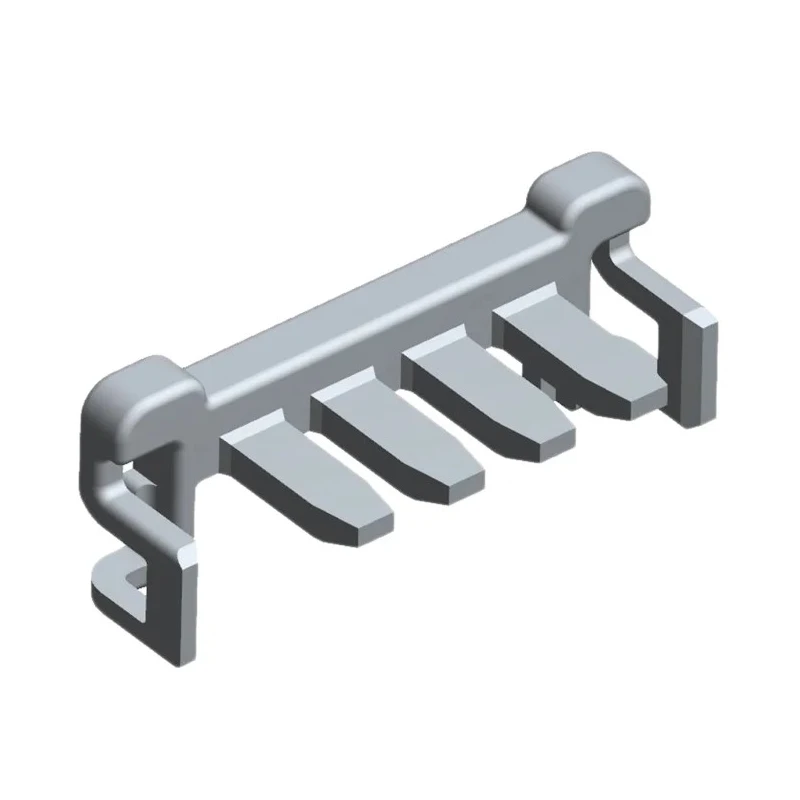

Molex Retainer for 2.0mm DuraClik TPA Wire-to-Board Housing 26 AWG Min Crimp 22 AWG Max 3A Current 505152-0400
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 3A |
| Contact Material | Phosphor Bronze |
| Series | 505152 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| For Use With | 505151 DuraClik TPA Wire-to-Board Housing, 505153 DuraClik TPA Wire-to-Board Terminal |
| Standards/Approvals | RoHS, SAE Automotive vibration standards |
| Contact Plating | Gold over Tin |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Compatible with Molex 505151 DuraClik TPA wire-to-board housing and 505153 terminal.
- Constructed with phosphor bronze contact material for durability.
- Features gold over tin contact plating for enhanced conductivity and corrosion resistance.
- Supports crimp termination type ensuring secure wire connections.
- Operating temperature range from -40°C to 125°C, suitable for harsh environments.
- Meets RoHS compliance and SAE automotive vibration standards.
- Designed for automotive, industrial, factory automation, and lighting applications.
- Provides terminal retention up to 20N with the TPA terminal retainer design.
Product Description
Molex 505152-0400 retainer is engineered for use with 2.0mm DuraClik TPA wire-to-board housing systems, delivering reliable and secure terminal retention. It supports minimum wire size of 26 AWG and maximum up to 22 AWG with a rated current capacity of 3 amperes.
The retainer utilizes phosphor bronze contact material, ensuring excellent mechanical strength and conductivity, combined with gold over tin plating to provide superior corrosion resistance and stable electrical performance.
This component features a crimp termination type, facilitating efficient and secure wire-to-board connections in a variety of environments. It operates reliably across a wide temperature range from -40°C to 125°C, meeting stringent automotive passenger compartment requirements and SAE vibration standards.
This product is RoHS compliant, reflecting its suitability for environmentally conscious applications. It is specifically designed for high vibration and high temperature wire-to-board applications across automotive, industrial, factory automation, and lighting sectors.
The DuraClik design includes polarization and keying features that prevent incorrect mating, along with an audible locking click for confirmation. The terminal position assurance (TPA) retainer provides up to 20N retention force, ensuring terminals remain securely positioned during operation.
Compatible with DuraClik 2.0mm wire-to-board housings and terminals. Phosphor bronze contact material offers durability and conductivity. Gold over tin plating enhances corrosion resistance and electrical performance. Operating temperature from -40°C to 125°C for automotive and industrial environments.
Meets SAE automotive vibration standards for robust application. RoHS compliant and environmentally friendly. Secure terminal retention with up to 20N force.
This Molex retainer is an essential component in applications requiring dependable wire retention and connectivity in demanding industrial and automotive environments. Browse EnvMart for more Molex connectors and related products suited for your technical needs.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Molex retainer has a rated current capacity of 3 amperes.
It supports a minimum wire size of 26 AWG and a maximum wire size of 22 AWG.
The retainer is constructed with phosphor bronze contact material and features gold over tin contact plating for enhanced conductivity and corrosion resistance.
It operates reliably across a temperature range from -40°C to 125°C.
This product meets RoHS compliance and SAE automotive vibration standards.
It utilizes a crimp termination type, ensuring secure wire connections.
It is compatible with the Molex 505151 DuraClik TPA wire-to-board housing and the 505153 DuraClik TPA wire-to-board terminal.
The terminal position assurance (TPA) design provides up to 20N of retention force.
It is specifically designed for automotive, industrial, factory automation, and lighting applications.
The maximum contact resistance is 10mΩ.
The country of origin for this retainer is India.
Yes, the DuraClik design includes polarization and keying features to prevent incorrect mating, along with an audible locking click for confirmation.
