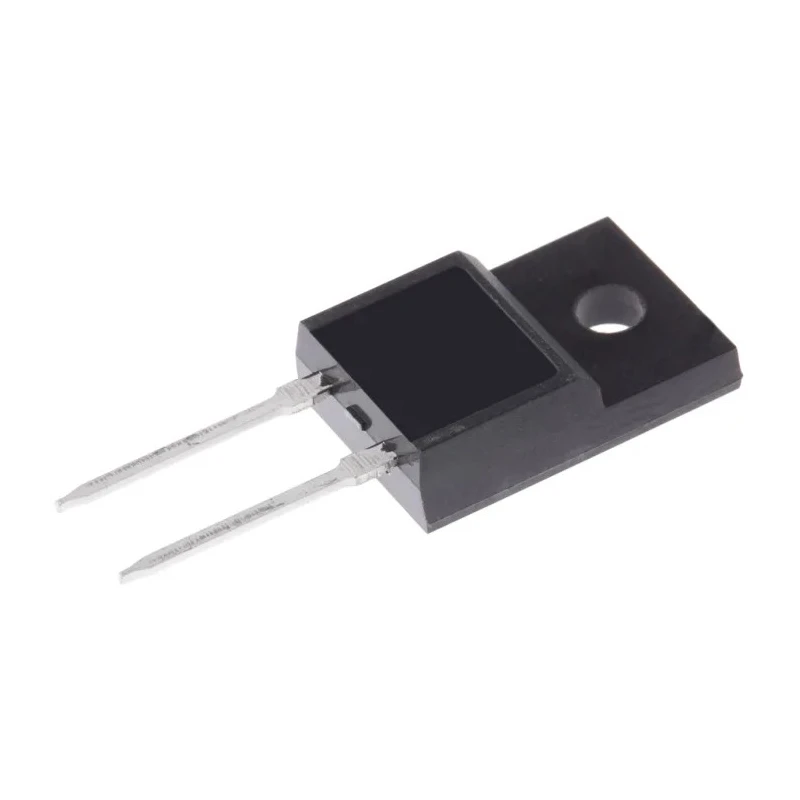

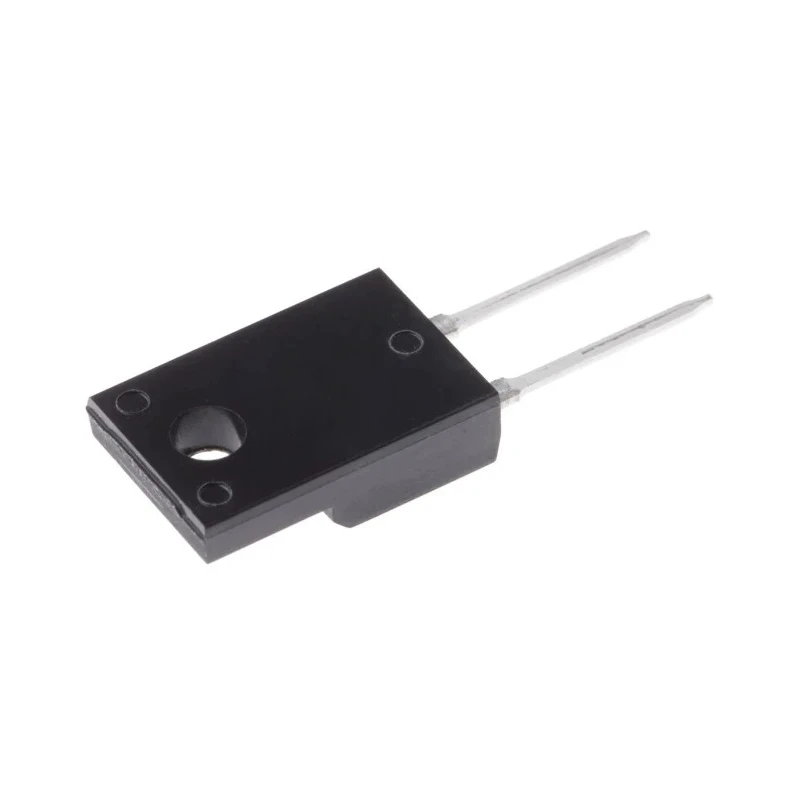

Vishay Silicon Junction Switching Diode 8 A 600 V 2-Pin Through Hole TO-220F UGF8JT-E3/45

Vishay UGF8JT-E3/45 is a silicon junction switching diode designed for high efficiency and reliability in power electronics applications. This 2-pin through hole component is housed in a TO-220F package, supporting a maximum forward current of 8 A and peak reverse voltage of 600 V, making it suitable for demanding industrial use cases.

The diode offers an ultrafast recovery time of 25 ns, minimizing switching losses in high-frequency circuits such as switched mode power supplies, inverters, and freewheeling diode configurations. Its maximum forward voltage of 1.75 V ensures efficient conduction with low heat dissipation.

Designed for robustness, the UGF8JT-E3/45 supports a peak non-repetitive forward surge current of 100 A and operates reliably across a wide temperature range from -55°C up to 150°C. This makes it suitable for industrial, automotive, and manufacturing environments where thermal stability and surge capability are critical.

The diode complies with automotive standard AEC-Q101, certifying it for use in automotive electronics that demand high quality and endurance. Its compact TO-220F form factor with dimensions of 15.24 mm height, 10.26 mm length, and 4.83 mm width allows easy integration into circuit boards with through hole mounting.

This component is ideal for use in power supplies, inverters, and as a freewheeling diode in various electronic circuits requiring fast switching and high current handling. The product is manufactured in China, maintaining Vishay’s global quality standards.

The diode features a 2-pin through hole mount design for easy PCB installation. Maximum forward voltage of 1.75 V ensures efficient operation at rated current. Ultrafast recovery time of 25 ns suits high-frequency switching applications.

Operating temperature range from -55°C to 150°C supports industrial environments. Peak non-repetitive forward surge current capability of 100 A provides robustness against transient peaks. Compact dimensions of 15.24 mm height, 10.26 mm length, and 4.83 mm width enable space-saving designs.

Meets automotive standard AEC-Q101 ensuring quality and reliability for automotive electronics. Ideal for switched mode power supplies, inverters, and freewheeling diode applications. Discover a range of Vishay power electronics and Switching Diodes in the Electronics & Electricals category on EnvMart.
