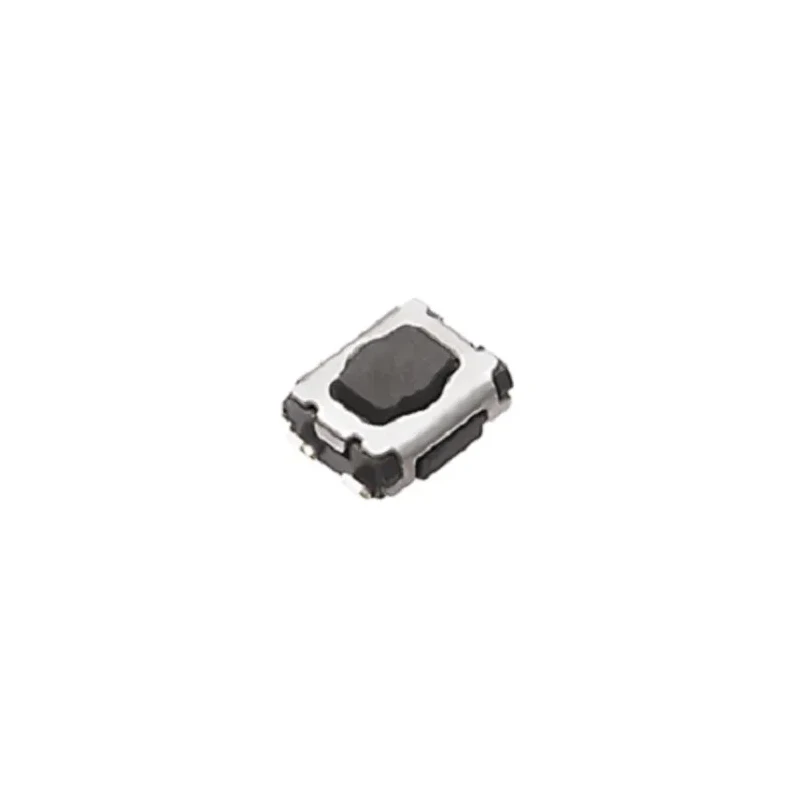

Panasonic White Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAM02W
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 1.7mm |
| Model | EVPAAM02W |
| Mount Type | Surface |
| Series | EVPA |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Terminal type | J Bend |
| Switch Operation | Push-On |
| Actuator Colour | White |
| Actuator Length | 2.2mm |
| Contact DC Voltage | 15V dc |
| Actuator Style | Push Plate |
| Actuator Orientation | Straight |
| Switch Contact Current | 20mA |
| Operating Force | 3.5N |
| Mechanical Life | 500000Cycles |
Key Features
- The switch features a white push plate actuator with a 2.2 mm length.
- SPST contact configuration supports 20mA switching current at 15 V dc.
- Surface mount type facilitates easy PCB assembly.
- Mechanical life rated at 500000 cycles ensures durability.
- Operating force is 3.5 N, providing a tactile feedback.
- Maximum operating temperature is 85 °C for robust performance.
- Terminal type is J Bend for secure electrical connection.
- Actuator orientation is straight, with a push-on operation.
Product Description
Panasonic EVPAAM02W is a high-quality white tactile switch with a push plate actuator measuring 2.2 mm in length. It incorporates a Single Pole Single Throw (SPST) contact configuration, capable of switching 20mA current at 15 V dc, making it suitable for a variety of low-voltage electronic applications.
This surface mount tactile switch is designed with a straight actuator orientation and push-on operation, providing reliable and responsive user input. The actuator's white color and push plate style enable intuitive tactile feedback for precise actuation.
The switch's compact height at 1.7 mm and small external dimensions contribute to efficient PCB space utilization in portable electronic devices. Its J Bend terminal type ensures secure soldering and mechanical stability.
Constructed to withstand industrial conditions, the switch supports a maximum operating temperature of 85 °C and offers a long mechanical life of up to 500000 cycles. The required operating force of 3.5 N balances comfort and reliability in operation.
Manufactured in Japan, this component meets stringent quality criteria for electronics manufacturing and industrial automation. It finds applications in portable electronic equipment, keyless entry systems, and other devices that require precise tactile input switches.
The switch provides dependable operation with a resistive load electrical rating from 10 μA at 2 V DC up to 20 mA at 15 V DC. Its push plate actuator style combined with surface mounting makes it ideal for compact and efficient design layouts.
The product supports various industrial uses including automation, control panels, and electronic instrumentation. Panasonic's EVPA series assures superior tactile performance and durability for electronic switch applications.
Set contains one Panasonic EVPAAM02W tactile switch ready for circuit board assembly and operation. Explore more Tactile Switches and electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tactile switch features a Single Pole Single Throw (SPST) contact configuration.
The maximum operating temperature for this switch is 85 °C.
This model has a mechanical life rating of 500,000 cycles.
The required operating force for this switch is 3.5 N.
The height of this tactile switch is 1.7 mm.
This model uses a J Bend terminal type for secure electrical connections.
The actuator length of the push plate is 2.2 mm.
The contact current rating for this switch is 20 mA.
This switch supports surface mounting, facilitating easy PCB assembly.
This tactile switch is manufactured in Japan.
This switch is suitable for portable electronic equipment, keyless entry systems, and other devices requiring precise tactile input.
The contact voltage rating for this switch is 15 V DC.
