| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.2mm |
| Length | 2mm |
| Model | BAV303-TR |
| Width | 1.2mm |
| Mount Type | Surface |
| Series | BAV303 |
| Maximum Operating Temperature | 175°C |
| Case | DO-204AL, molded epoxy over glass body |
| Package Type | MicroMELF |
| Sub Type | Silicon Junction |
| Minimum Operating Temperature | -65°C |
| Polarity | Color band denotes cathode end |
| Terminals | Matte tin plated leads, solderable per |
| Pin Count | 2 |
| Diode Configuration | Single |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 50ns |
| Maximum Forward Current If | 250mA |
| Maximum Peak Reverse Repetitive Voltage Vrrm | 250V |

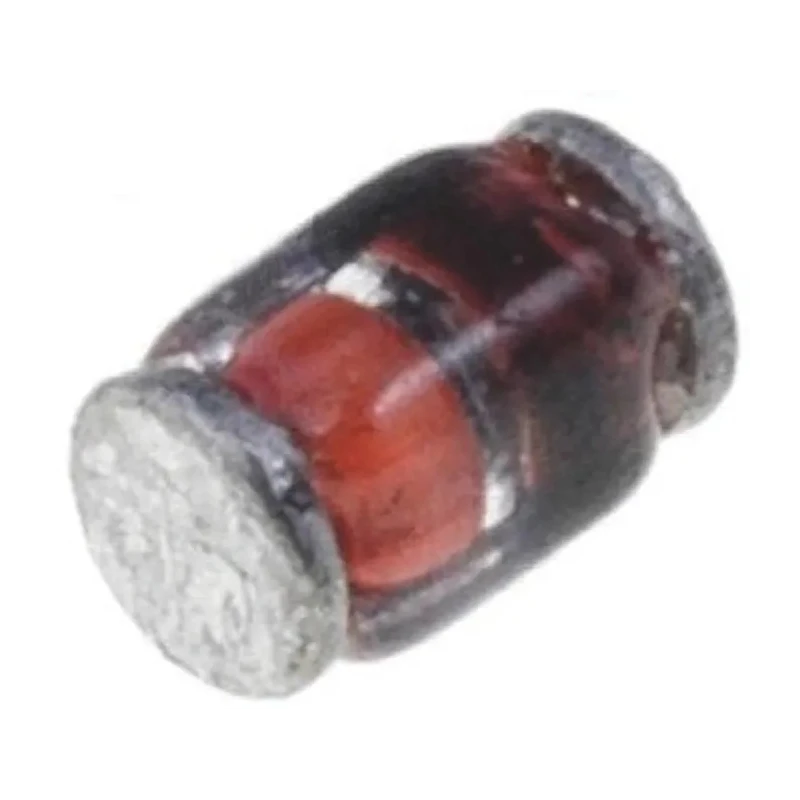

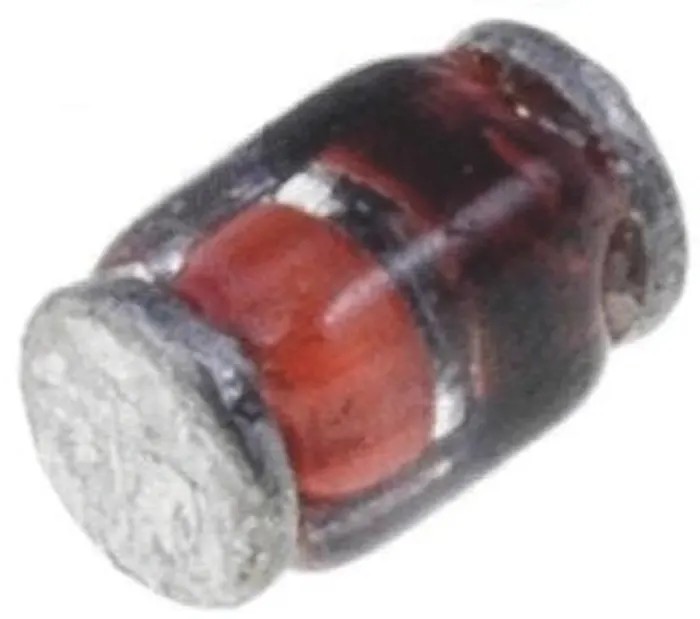

Vishay BAV303-TR is a high reliability silicon junction switching diode designed for fast switching and low leakage in electronic applications. Encapsulated in a MicroMELF surface-mount package, it offers a compact footprint suitable for modern PCB designs. The diode supports a maximum forward current (If) of 250 mA and a peak reverse voltage (Vrrm) of 250 V, making it versatile for low to medium power circuits.
This component features a glass passivated junction and a superectifier structure for enhanced durability and electrical performance. Its fast switching times (peak reverse recovery time of 50 ns) reduce switching losses and improve circuit efficiency in high-frequency applications.
Operating temperatures range from -65°C to 175°C, suited for demanding industrial and commercial environments. Its low leakage current (typically less than 0.2 μA) helps maintain circuit efficiency and stability.
Applications include high voltage rectification in G2 grid CRTs, TV snubber circuits, and camera flash snubber circuits, highlighting its role in precision and protection in electronic systems.
The physical package is a DO-204AL type with a molded epoxy over a glass body, ensuring mechanical robustness and flame retardance (UL 94 V-0 rating). Matte tin plated leads are solderable according to JESD standards, ensuring secure and reliable PC board mounting. Its polarity is clearly indicated with a cathode-end color band.
Supports high reliability usage due to the cavity-free glass passivated junction. Provides fast switching operation suitable for power rectification and protection circuits. Compact MicroMELF surface mount package reduces PCB footprint.
Wide operating temperature range covers industrial and commercial usage scenarios. Mechanically robust epoxy package with flame retardant rating ensures safety and endurance. Certified for RoHS compliance and commercial grade quality.
This Vishay diode is ideal for designers and engineers seeking a dependable, high-performance switching diode with compact size and excellent electrical characteristics. Explore more Vishay semiconductor components for comprehensive electronic solutions at EnvMart.
