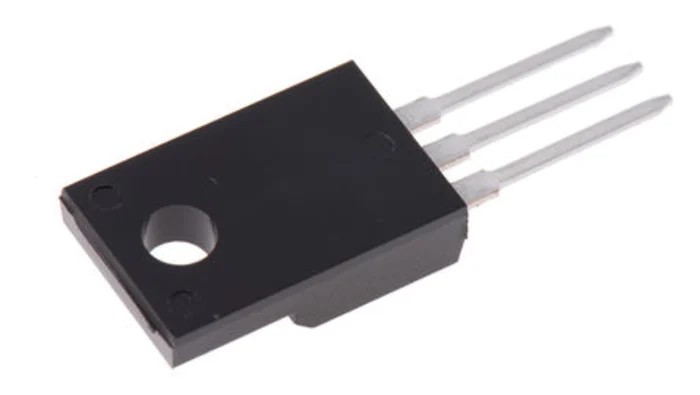

Vishay 200 V 18 A Ultrafast Rectifier General Purpose 3-Pin TO-220F BYVF32-200-E3/45
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 15.24mm |
| Length | 10.26mm |
| Model | BYVF32-200-E3/45 |
| Width | 4.83mm |
| Mount Type | Through Hole |
| Series | BYVF32 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220F |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | AEC-Q101, JESD 201, JESD 22-B102, JESD 22-B106, J-STD-002, RoHS, UL 94 V-0 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 18A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Common Cathode |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 600μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 25ns |
Key Features
- The diode features a low forward voltage drop of 1.15 V for efficient power conversion.
- It supports a maximum operating temperature of 150°C ensuring durability in harsh conditions.
- The rectifier has a peak non-repetitive forward surge current rating of 150 A for transient tolerance.
- A peak reverse recovery time of 25 ns enables high-speed switching applications.
- Mount type is through-hole suitable for robust PCB assembly.
- The device complies with automotive standards including AEC-Q101 and various industry certifications.
- Its compact dimensions (Length 10.26 mm, Width 4.83 mm, Height 15.24 mm) suit space constrained designs.
- Operates reliably down to -65°C minimum temperature for extended environmental range.
Product Description
Vishay BYVF32-200-E3/45 is a high-performance ultrafast rectifier diode designed for general purpose use in electronic circuits. It is capable of handling a continuous forward current of 18 A and withstanding a reverse repetitive voltage up to 200 V. The device is housed in a compact TO-220F package with 3 pins and through-hole mounting, making it suitable for robust assembly in a variety of industrial and automotive electronics.
The rectifier's fast recovery time of 25 ns and low forward voltage of 1.15 V enhance efficiency in power conversion and switching applications, reducing energy losses and heat generation. Its peak non-repetitive surge current rating of 150 A ensures reliable operation under transient load conditions.
The operating temperature range from -65°C to 150°C underlines the diode's capability to withstand harsh environments typically encountered in automotive, industrial, and manufacturing contexts. Compliance with standards such as AEC-Q101, RoHS, JESD 201, and UL 94 V-0 guarantees quality, safety, and environmental robustness.
This Vishay diode is widely applicable in power supply circuits, automotive electronics, industrial machinery, and other areas requiring durable, efficient rectification. Its small physical footprint allows integration into space-constrained designs without compromising performance.
Key specifications include a common cathode diode configuration and peak reverse current of 600 μA. The device is manufactured in China and meets stringent automotive quality standards.
The diode features a low forward voltage drop of 1.15 V for efficient power conversion. It supports a maximum operating temperature of 150°C ensuring durability in harsh conditions. The rectifier has a peak non-repetitive forward surge current rating of 150 A for transient tolerance.
A peak reverse recovery time of 25 ns enables high-speed switching applications. Mount type is through-hole suitable for robust PCB assembly. The device complies with automotive standards including AEC-Q101 and various industry certifications.
Its compact dimensions (Length 10.26 mm, Width 4.83 mm, Height 15.24 mm) suit space constrained designs. Operates reliably down to -65°C minimum temperature for extended environmental range. Explore more semiconductors and discrete diode products at EnvMart for your next industrial or automotive electronics project.
Explore more products in our Schottky Diodes & Rectifiers category.
