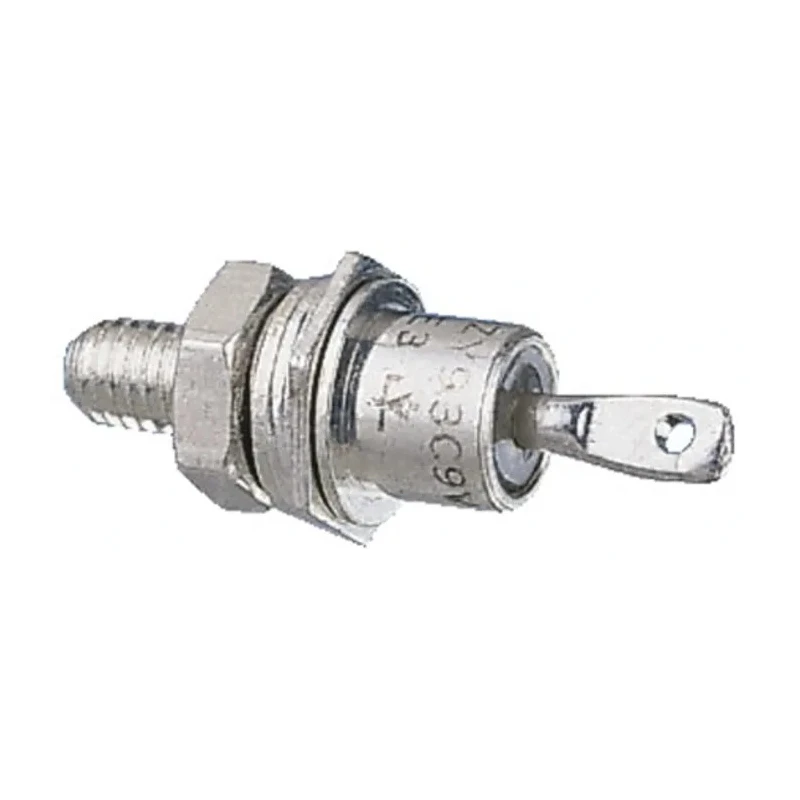

Vishay 1 kV 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF100

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1 kV 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF100

Name: Vishay 1 kV 85 A Fast Recovery Diode 2-Pin DO-203AB VS-85HF100
Brand: Vishay
SKU: 376764
Price: 14.43 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.35mm
Brand	Vishay
Height	17.35mm
Length	36.5mm
Model	VS-85HF100
Mount Type	Screw
Series	VS-85HF
Maximum Operating Temperature	125°C
Package Type	DO-203AB
Minimum Operating Temperature	-40°C
Pin Count	2
Maximum Continuous Forward Current If	85A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Stud Cathode
Rectifier Type	Fast Recovery
Peak Reverse Current Ir	20mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.4kA
Maximum Forward Voltage Vf	1.75V
Peak Reverse Recovery Time trr	500ns

Key Features

The diode features a fast recovery type ideal for efficient rectification.
It supports a maximum continuous forward current of 85 A.
Peak reverse repetitive voltage is rated at 1 kV for robust operation.
Designed with a stud cathode diode configuration for reliable mounting.
Peak non-repetitive forward surge current of 1.4 kA supports transient overloads.
Maximum forward voltage drop is 1.75 V ensuring low power losses during conduction.
Peak reverse recovery time is 500 nanoseconds allowing fast switching.
Operational temperature range from -40°C to 125°C suits various industrial environments.

Product Description

Vishay VS-85HF100 fast recovery diode is a high-performance semiconductor device designed for power electronic applications requiring efficient and reliable rectification. This diode supports a maximum continuous forward current of 85 A and a peak reverse repetitive voltage of 1 kV, making it suitable for high voltage power supply circuits.

The 2-pin DO-203AB package with stud cathode configuration allows secure screw mounting, ensuring stable mechanical and electrical connections in industrial equipment.

The diode is capable of handling a peak non-repetitive forward surge current of 1.4 kA, providing robustness against transient current spikes often encountered in switching and power control systems.

Its fast recovery rectifier type achieves a peak reverse recovery time of only 500 nanoseconds, which reduces switching losses and electromagnetic interference in high-frequency operations.

Operating temperature ranges from -40°C to 125°C, supporting varied industrial, laboratory, and manufacturing environments. The compact dimensions (17.35 mm diameter, 36.5 mm length) facilitate integration in space-constrained electronic assemblies.

This diode is ideal for applications in power supplies, inverters, rectification circuits, and other industrial electronics demanding fast recovery and high current ratings. The diode features a fast recovery type ideal for efficient rectification.

It supports a maximum continuous forward current of 85 A. Peak reverse repetitive voltage is rated at 1 kV for robust operation. Designed with a stud cathode diode configuration for reliable mounting. Peak non-repetitive forward surge current of 1.4 kA supports transient overloads.

Maximum forward voltage drop is 1.75 V ensuring low power losses during conduction. Peak reverse recovery time is 500 nanoseconds allowing fast switching. Operational temperature range from -40°C to 125°C suits various industrial environments.

Package type DO-203AB offers a compact form factor with 17.35 mm diameter and 36.5 mm length. No automotive or industry standard approvals are specified. Browse Vishay semiconductor components and Schottky diodes at EnvMart for quality solutions in industrial power electronics.
