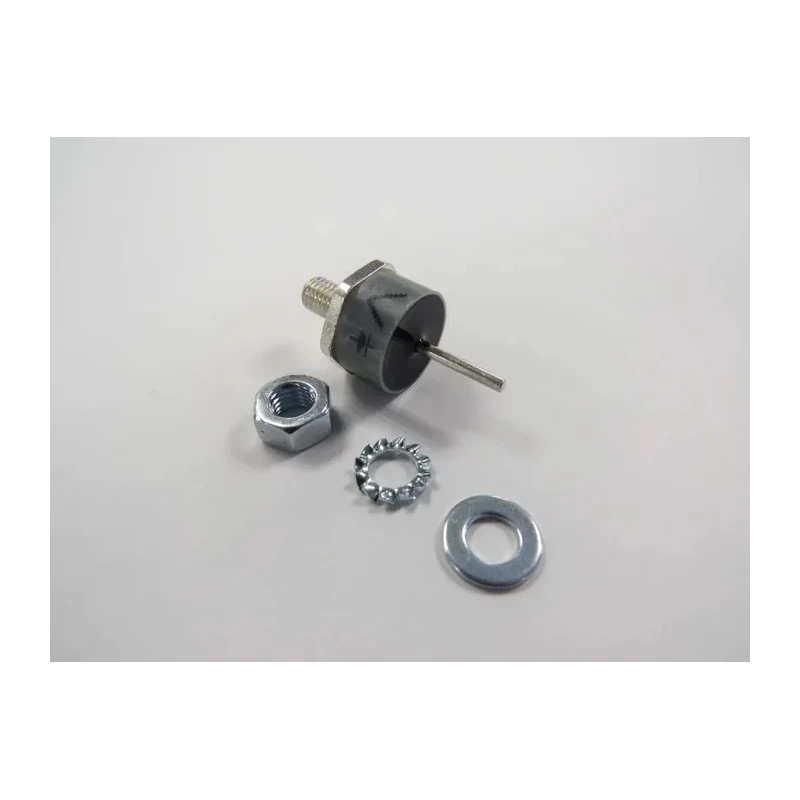

Vishay 800 V 80 A Standard Recovery Stud Mount Diode DO-2013AB VS-80PFR80W

Free Delivery in India | Lowest Global Shipping Charges

Vishay 800 V 80 A Standard Recovery Stud Mount Diode DO-2013AB VS-80PFR80W

Name: Vishay 800 V 80 A Standard Recovery Stud Mount Diode DO-2013AB VS-80PFR80W
Brand: Vishay
SKU: 376760
Price: 8.31 USD
Availability: InStock



Category Diode Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	17.25mm
Brand	Vishay
Height	17.25mm
Length	36.4mm
Model	VS-80PFR80W
Width	18.9mm
Mount Type	Stud Mount
Series	VS-80PF(R).(W)
Maximum Operating Temperature	180°C
Package Type	DO-2013AB
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	2
Maximum Continuous Forward Current If	80A
Peak Reverse Repetitive Voltage Vrrm	800V
Diode Configuration	Stud Anode
Rectifier Type	Recovery
Peak Reverse Current Ir	9mA
Peak Non-Repetitive Forward Surge Current Ifsm	1.6kA
Maximum Forward Voltage Vf	1.4V

Key Features

This diode supports a maximum continuous forward current of 80 A.
It withstands a peak reverse repetitive voltage of 800 V.
The recovery rectifier type ensures effective switching performance.
Mount type is stud mount with a robust 2-pin configuration.
Operating temperature ranges from -55°C to a maximum of 180°C.
Maximum forward voltage drop is 1.4 V, minimizing power loss.
Peak non-repetitive forward surge current of 1.6 kA provides high surge capability.
Compact dimensions include length 36.4 mm, height 17.25 mm, width 18.9 mm, and diameter 17.25 mm.

Product Description

Vishay VS-80PFR80W Standard Recovery Diode is engineered for industrial and electronic applications requiring reliable power rectification. This stud mount diode packaged in the DO-2013AB format supports a maximum continuous forward current of 80 A and can sustain peak reverse repetitive voltage up to 800 V.

It features a stud anode diode configuration optimized for high current and voltage performance. The maximum forward voltage is limited to 1.4 V which helps improve overall efficiency and reduces thermal losses.

Operating temperature ranges from -55°C to 180°C, allowing usage in demanding environments such as power supplies, inverters, and industrial machinery. Its peak non-repetitive surge current rating of 1.6 kA ensures robust handling of transient current spikes.

The diode's compact dimensions - length 36.4 mm, height and diameter both 17.25 mm, and width 18.9 mm - facilitate integration into various power assemblies. The 2-pin stud mount design provides secure mechanical and electrical connection.

Manufactured in India, this device conforms to RoHS environmental standards, assuring reduced hazardous substances. Supports 80 A continuous forward current for high power applications. 800 V peak reverse voltage for effective blocking capability.

Standard recovery diode type ideal for switching and rectification. Robust stud mount DO-2013AB package for reliable installation. Wide operating temperature range from -55°C to 180°C. Low forward voltage drop of 1.4 V to improve efficiency.

High surge current tolerance of 1.6 kA for transient events. Compact and standardized package dimensions for easy integration. RoHS compliant for environmental safety and sustainability.

This Vishay Diode model VS-80PFR80W is suitable for industrial power electronics, automotive electronics, power management, and semiconductor design applications. It supports use cases such as power rectification, voltage regulation, and protection circuits in construction, manufacturing, electrical, and electronic systems.
