Pico Technology PC Based Oscilloscope 10 MHz Bandwidth 2-Channel USB Powered PICOSCOPE 2204A

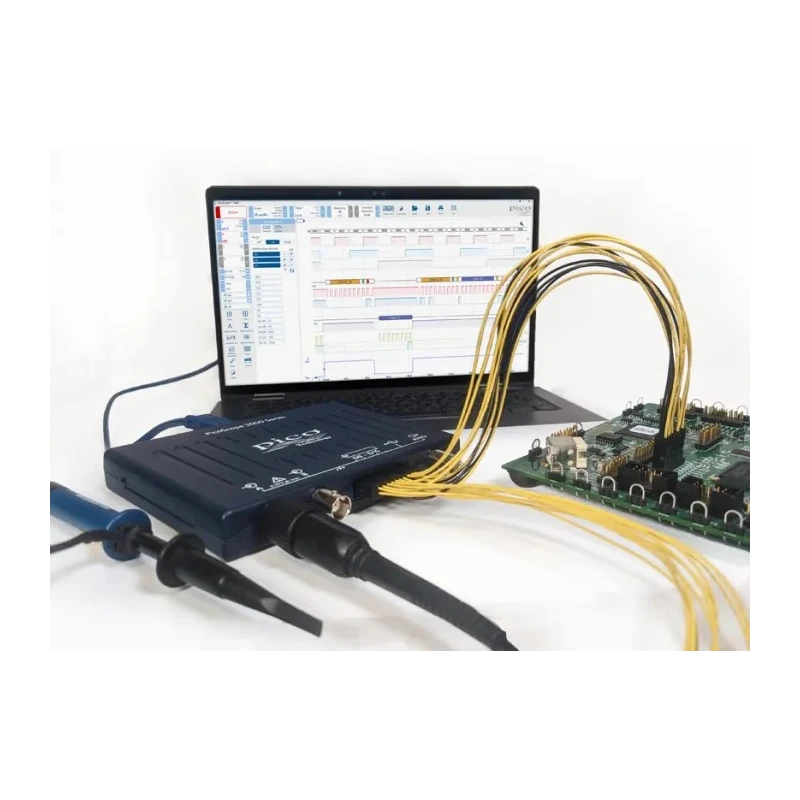

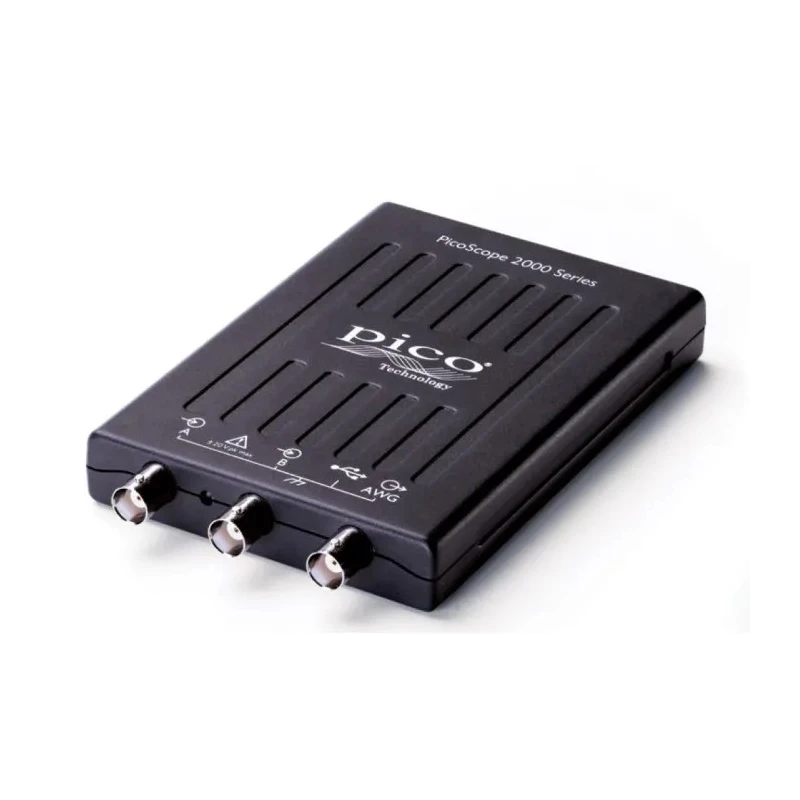

Pico Technology PICOSCOPE 2204A PC Based Oscilloscope is a compact and affordable diagnostic instrument featuring a 10 MHz bandwidth and 2 analogue input channels. It is USB powered and designed for bench use, providing excellent portability and ease of connection near the circuit under test.

This oscilloscope delivers a high sample rate of 100 MS/s enabling precise waveform capture and analysis. Powered via USB, it does not require an external power supply, facilitating mobile testing setups in industrial, education, laboratory, and electronics servicing environments.

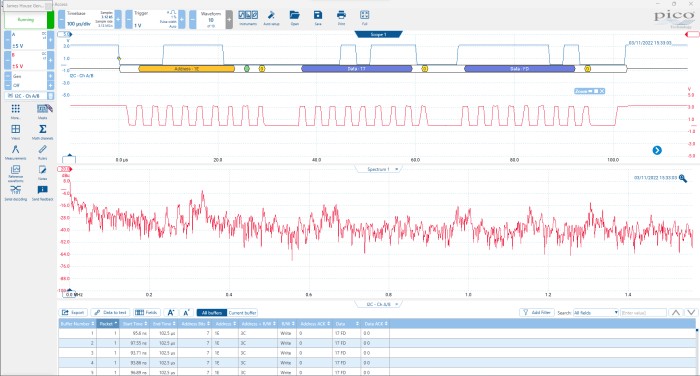

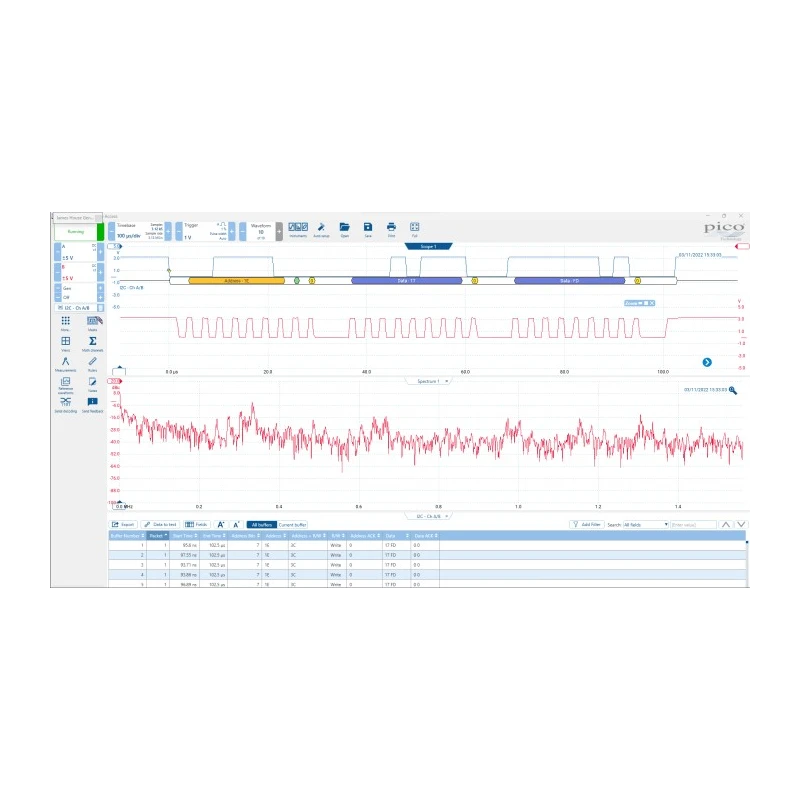

The product comes bundled with PicoScope 6 software which incorporates powerful functions including serial bus decoding and mask limit testing as standard features. Its interface supports multiple protocols including CAN, IIC, LIN, RS232, SPI, UART, and USB connections, providing versatile communication options.

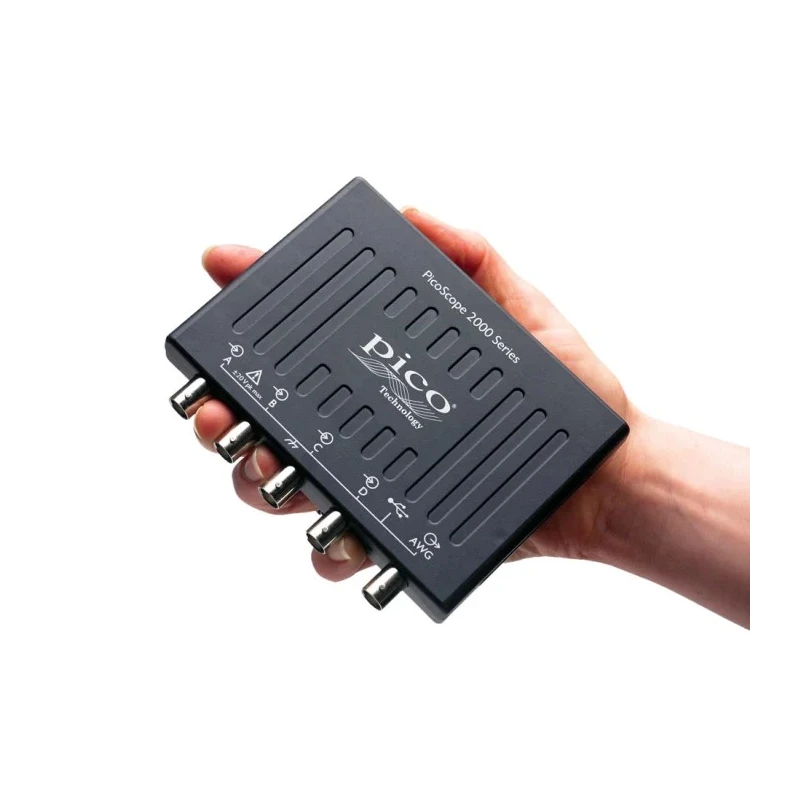

Advanced digital triggers, persistence display modes, and an equivalent-time sampling mode expand the scope’s analytical capabilities. The device dimensions are 142 mm length, 92 mm width, and 19 mm height, making it compact for spaces with limited bench availability.

Included with the oscilloscope are two 60 MHz probes, a USB cable, a quick start guide, and a software reference CD to enable immediate usage. Certified to safety standards such as EN 61010-1:2010 and compliant with WEEE, EN61326-1:2006, and FCC Part 15 Subpart B, it meets industry requirements for laboratory and industrial testing.

This model is suitable for diverse applications spanning design, testing, education, monitoring, fault finding, and repairs across electronics, industrial, laboratory, HVAC, and manufacturing sectors.

USB-powered and portable for flexible bench testing. High sample rate supports detailed signal analysis. Comprehensive software with advanced testing features. Supports broad communication interfaces. Compact form factor fits limited workspaces.

Includes probes and all necessary connection accessories. Certified to international testing and safety standards. Suitable for multiple industrial and educational applications. Discover more Oscilloscopes and measurement instruments available on EnvMart for industrial, laboratory, and field applications.
