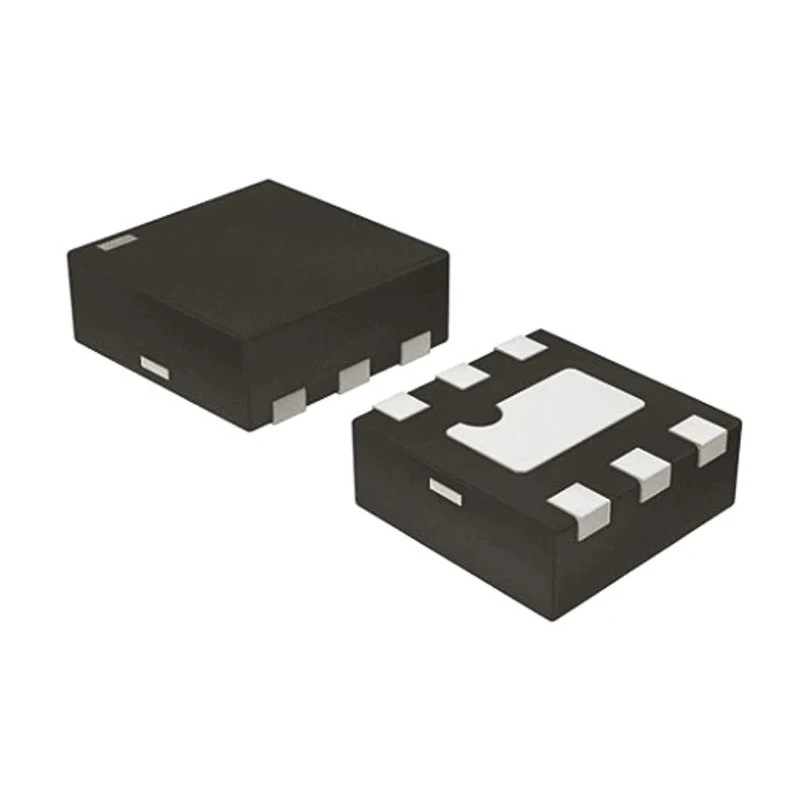

Vishay 5-Element Bi-Directional ESD Protection Diode 200 W 6-Pin LLP75 GMF05C-HSF-GS08

Vishay GMF05C-HSF-GS08 is a high-performance 5-element bi-directional ESD Protection Diode tailored for safeguarding sensitive electronic components against electrostatic discharge and transient voltage spikes. Rated for a peak pulse power dissipation of 200 W, this diode is housed in a low-profile 6-pin LLP75 surface-mount package, making it suitable for modern compact PCB designs.

This device features a common anode configuration with a minimum breakdown voltage of 6 V and a maximum reverse stand-off voltage of 5 V, ensuring robust protection and compatibility with various industrial electronics. The clamping voltage of 12.5 V effectively suppresses voltage transients, while the maximum peak pulse current rating of 12 A provides resilience under demanding ESD conditions.

Designed for reliability, the diode operates efficiently within a wide temperature range from -55°C to 125°C, suitable for automotive, industrial, and commercial electronic applications. Its minimal reverse leakage current of 1 µA reduces power loss, contributing to energy-efficient circuit protection.

The GMF05C-HSF-GS08's ultra-compact dimensions of 1.65 mm length and width and just 0.6 mm height facilitate high-density mounting on printed circuit boards where space savings are critical. This diode complies with RoHS standards, reflecting its environmentally friendly design and manufacturing process. Produced in China under Vishay's stringent quality controls, it delivers trusted performance for electrostatic discharge protection.

The device features a common anode diode configuration suitable for bi-directional ESD protection. It has a minimum breakdown voltage of 6 V with a maximum reverse stand-off voltage of 5 V. The clamping voltage is specified at 12.5 V ensuring effective suppression of transient voltage spikes.

Operating temperature range extends from -55°C to 125°C for reliable industrial performance. The diode supports a maximum peak pulse current of 12 A with a test current of 1 mA. Physical dimensions are compact with 1.65 mm length and width and a height of 0.6 mm, making it ideal for surface-mount applications.

Maximum reverse leakage current is very low at 1 µA, minimizing losses. The product is RoHS compliant and manufactured in China.

This diode is ideal for industrial, automotive, telecommunications, and consumer electronics applications requiring reliable ESD protection. Its small form factor and surface mount capability enable easy integration into high-density electronic assemblies. For a comprehensive range of semiconductor protection solutions, explore more products in the Electronics & Electricals category at EnvMart.
