| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | MMBZ12VAL,215 |
| Width | 1.4mm |
| Mount Type | Surface |
| Series | MMBZ |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 2 |
| Clamping Voltage VC | 17V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Anode |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 11.4V |
| Maximum Reverse Stand-off Voltage Vwm | 8.5V |
| Peak Pulse Power Dissipation Pppm | 40W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 2.35A |
| Maximum Reverse Leakage Current | 5nA |

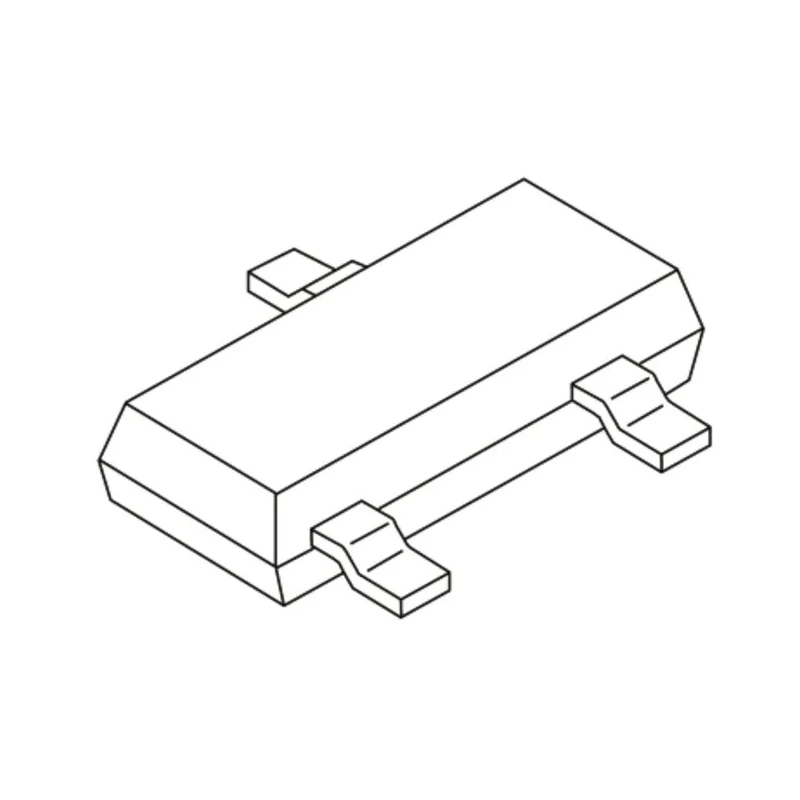

Nexperia MMBZ12VAL,215 2-Element Uni-Directional ESD Protection Diode is engineered for protecting sensitive electronics from electrostatic discharge and transient voltage spikes. Encapsulated in a small SOT-23 (TO-236AB) surface-mount package, this diode features a common anode configuration and low capacitance to ensure minimal signal distortion in high-speed applications.
Capable of handling peak pulse power dissipation up to 40 W, the diode has a minimum breakdown voltage of 11.4 V and a maximum reverse stand-off voltage of 8.5 V, making it suitable for protecting circuits in industrial, automotive, and consumer electronic devices. The clamping voltage of 17 V effectively limits voltage spikes during ESD events.
The device contains 2 elements per chip with 3 pins and operates efficiently between -55°C and 150°C, complying with automotive standard AEC-Q101. Its maximum reverse leakage current is extremely low at 5 nA, promoting energy efficiency and reliability in the field.
The compact dimensions of 3 mm length, 1.4 mm width, and 1.1 mm height allow for integration into dense PCB layouts, while the low capacitance design is ideal for data line protection applications where signal integrity is critical.
This diode is designed to offer reliable ESD protection in industrial, automotive, consumer electronics, telecommunications, and manufacturing applications. The SOT-23 surface mount package simplifies assembly and reduces PCB space requirements.
The 2-element design ensures effective uni-directional protection against voltage transients and electrostatic discharge. Withstanding harsh operating environments, it supports long-lasting device protection under extreme temperatures.
Widely used in circuit protection scenarios to enhance product durability and compliance with ESD immunity standards.
This product is part of the MMBZ series by Nexperia, manufactured in China, and supplied as new. It is ideal for engineers and designers requiring compact, robust, and efficient ESD Protection Diodes for advanced electronic boards.
