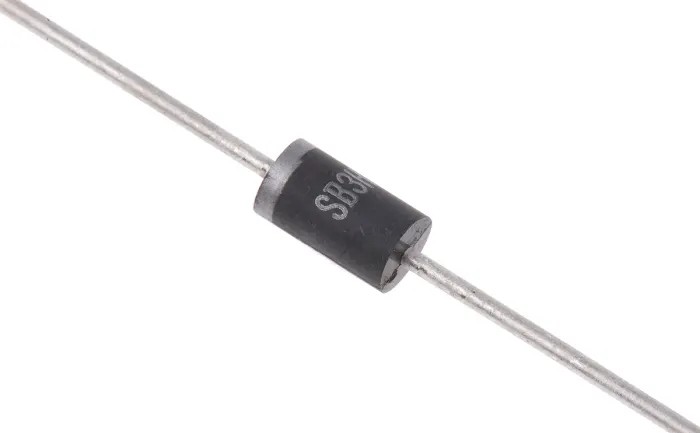

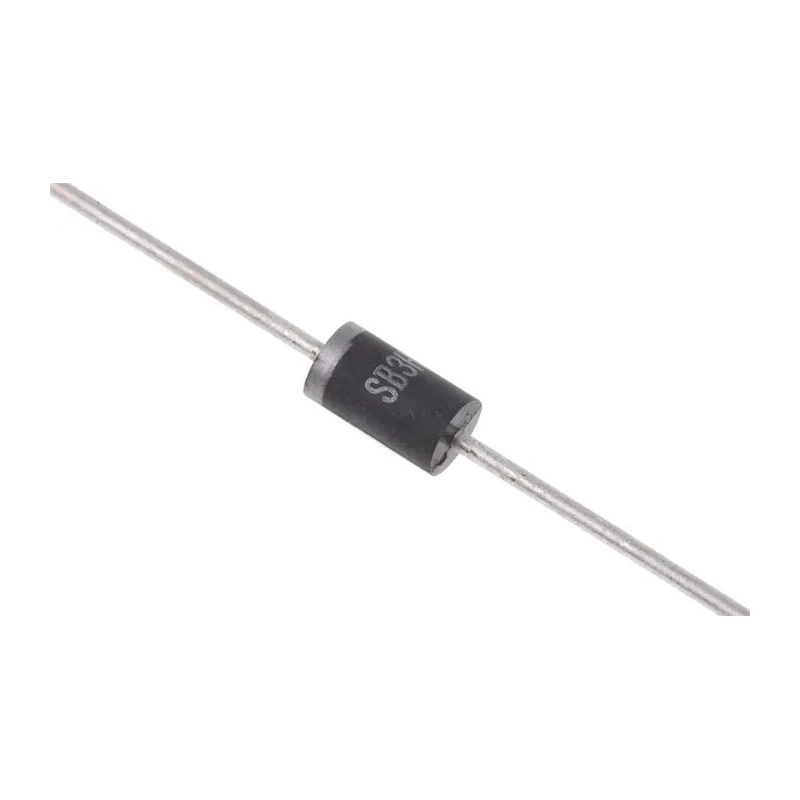

Vishay 90 V 3 A Schottky Rectifier Diode Through Hole DO-201AD SB3H90-E3/54

Vishay SB3H90-E3/54 is a high-performance Schottky rectifier diode rated for 90 volts and 3 amps, packaged in a through hole DO-201AD 2-pin configuration. It is engineered to provide fast switching action with very low forward voltage drop, making it ideal for reducing power loss in industrial electronic applications.

The diode supports a maximum continuous forward current of 3 amps and peak reverse repetitive voltage of 90 volts, with a low forward voltage of 800 millivolts. It is designed to operate efficiently in harsh environments, with a temperature range from -55°C minimum to 175°C maximum.

Its compact physical dimensions of 9.5 mm length and 5.3 mm diameter facilitate easy mounting on circuit boards. The device is a single diode type and features peak non-repetitive forward surge current capacity of 100 amps for reliable transient handling.

This Schottky diode is primarily used for power rectification and switching in various industrial, laboratory, and electronics manufacturing settings. Its fast switching speed and low power dissipation make it suitable for power supplies, voltage clamping, and freewheeling diode applications.

Maximum continuous forward current of 3 A. Peak reverse repetitive voltage rating of 90 V. Maximum forward voltage drop of 800 mV. Operating temperature range from -55°C to 175°C. Peak surge current tolerance of 100 A. Compact DO-201AD through hole 2-pin package.

Single diode configuration for versatile power applications. This diode is manufactured in China and meets the requirements for high-performance Schottky rectification components. Explore the wide range of Vishay Schottky diodes at EnvMart for your industrial and electronics projects.
