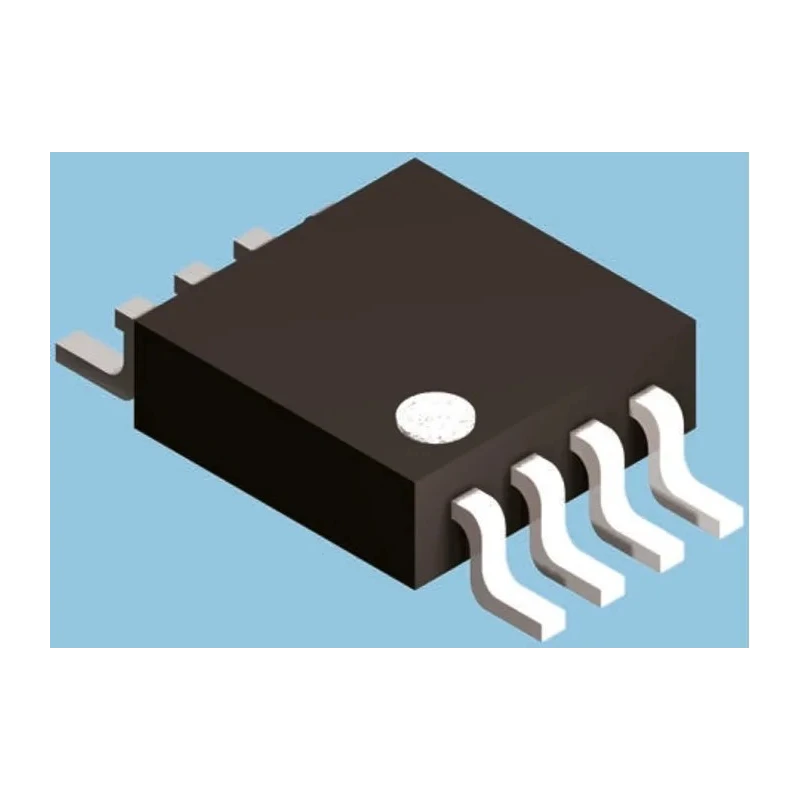

Texas Instruments 2-Channel Buffer & Line Driver, 3 State, Non-Inverting, 8-Pin US8 SN74LVC2G241DCUR

Texas Instruments SN74LVC2G241DCUR is a 2-channel buffer and line driver IC in the low-voltage CMOS (LVC) logic family. It features a non-inverting, 3 state output design intended for efficient signal buffering and line driving in electronic circuits.

This device supports a wide operating voltage range from 1.65 V to 5.5 V, making it suitable for various low-voltage applications. Its low supply current consumption of 10 μA enables power-efficient operation, ideal for battery-powered and low-power designs.

The SN74LVC2G241DCUR is packaged in an 8-pin US8 surface-mount package with compact dimensions (1.3 mm height, 3.15 mm length, and 2.9 mm width), allowing space-efficient PCB layouts. It can operate in extreme temperature conditions from -40 °C up to 125 °C, suitable for industrial and commercial environments.

Functional characteristics include a maximum propagation delay of 4.1 ns at a load capacitance (CL), ensuring fast signal responses. The device supports a maximum output current of ±32 mA, providing strong drive capability for external loads.

This line interface IC is compatible with input LVTTL/TTL signals, delivering output levels suitable for LVCMOS devices. Its non-inverting polarity guarantees signal stability and integrity across complex circuit designs.

Common applications include buffering and driving signal lines in computing, communication, instrumentation, and control systems. This model is a member of the 74LVC2G241 family of devices from Texas Instruments known for high speed and low power consumption.

Supports operating voltage from 1.65 V to 5.5 V. Features low supply current of 10 μA for power efficiency. Maximum propagation delay time is 4.1 ns at CL load. Designed for surface mount with 8 pins and US8 package type.

Operates reliably in temperature ranges from -40 °C to 125 °C. Non-inverting logic polarity ensures signal integrity. Compatible with LVTTL/TTL inputs and outputs LVCMOS level signals. Maximum output currents of ±32 mA support robust driving capability.

Compact dimensions with height 1.3 mm, length 3.15 mm, and width 2.9 mm.

This product is suitable for industrial, electronic manufacturing, laboratory instrumentation, communication equipment design, and other related fields. Browse the Electronics & Electricals category at EnvMart for more semiconductor components and interface IC solutions.
