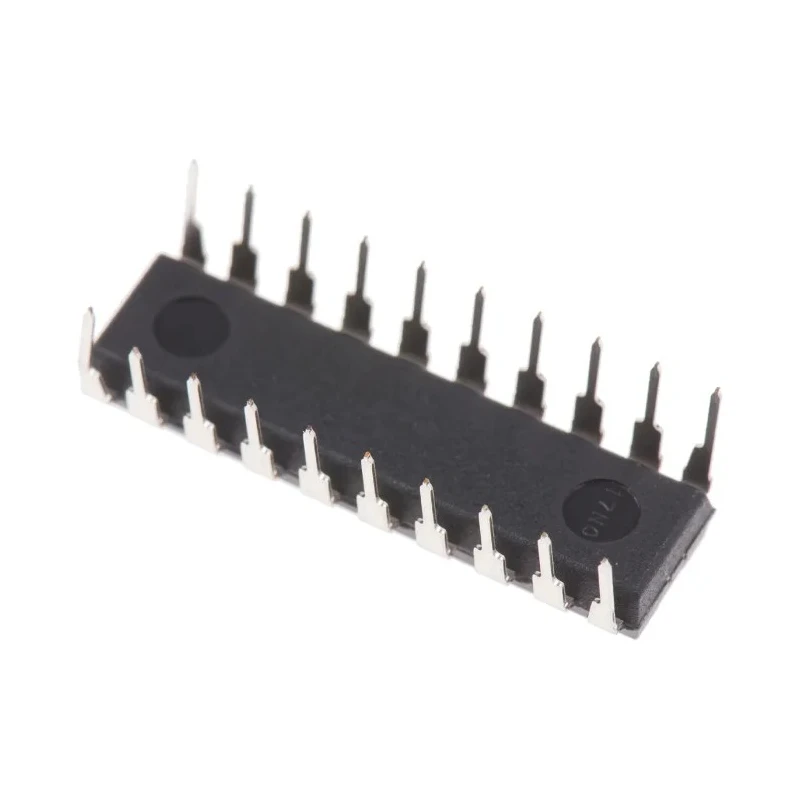

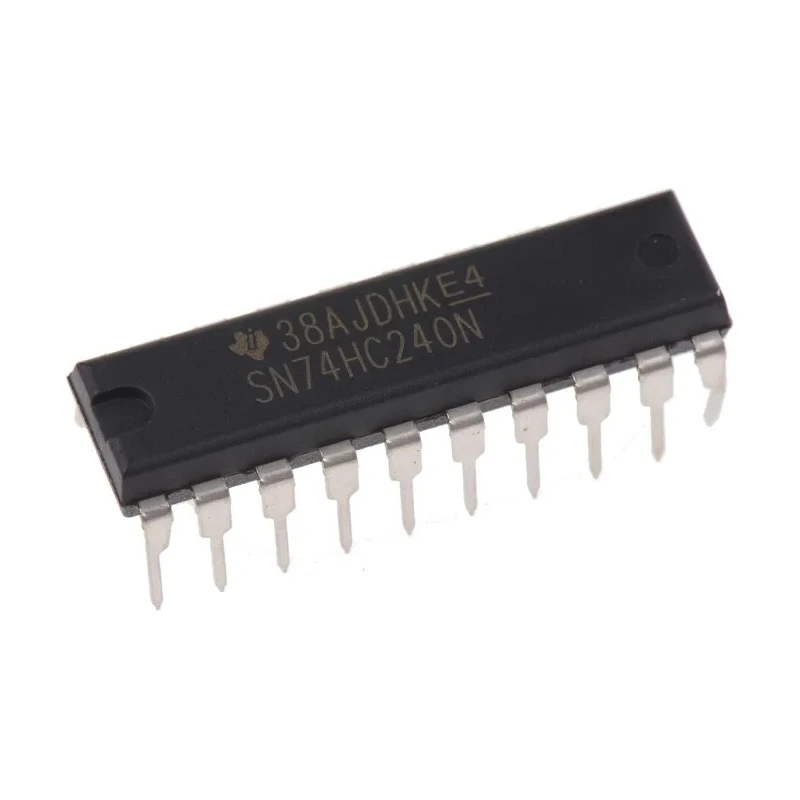

Texas Instruments 8-Channel Buffer & Line Driver, 3 State, Inverting, 20-Pin PDIP SN74HC240N

Texas Instruments SN74HC240N is a high-speed CMOS logic 8-channel buffer and line driver featuring inverting outputs with three-state functionality. It is designed using silicon gate CMOS technology to deliver fast switching speeds similar to LSTTL while maintaining the low power consumption benefits of CMOS devices. This device is housed in a 20-pin PDIP through-hole package, making it suitable for easy PCB mounting in various electronic applications.

Operating with a supply voltage range of 2 to 6 volts, the SN74HC240N supports a wide range of digital circuits and systems. Its maximum propagation delay of 9 nanoseconds ensures quick signal transmission, improving the efficiency of communication lines. The device provides maximum output currents of ±7.8 mA, enabling it to drive moderate loads effectively.

The IC operates reliably in a temperature range from -40°C to 85°C, making it suitable for demanding industrial and commercial environments. With low supply current of just 80 microamperes, it optimizes power consumption, beneficial for battery-powered and low power designs. The buffer supports single-ended inputs and offers three-state outputs with inverting polarity, enabling it to interface effectively with CMOS logic circuits.

Its compact package size of 26.92 mm length, 6.6 mm width, and 5.08 mm height facilitates integration in space-constrained electronic assemblies. The Texas Instruments 74HC family devices are well-known for their robustness and compatibility, and this IC is no exception.

Operates between 2 to 6 volts supply voltage. Maximum propagation delay time of 9 nanoseconds for fast switching. Through-hole 20-pin PDIP package for convenient mounting. Single-ended input and three-state, inverting outputs.

Maximum output currents of ±7.8 mA for moderate loads. Temperature range from -40°C to 85°C ensuring industrial suitability. Low supply current of 80 μA for power-efficient designs. Compatible with CMOS logic level inputs and outputs.

This IC is ideal for use in industrial automation, instrumentation, communication systems, and other electronic circuits requiring reliable line driving and buffering functions. Browse more in the Semiconductor category at EnvMart for complementary digital ICs and components.
