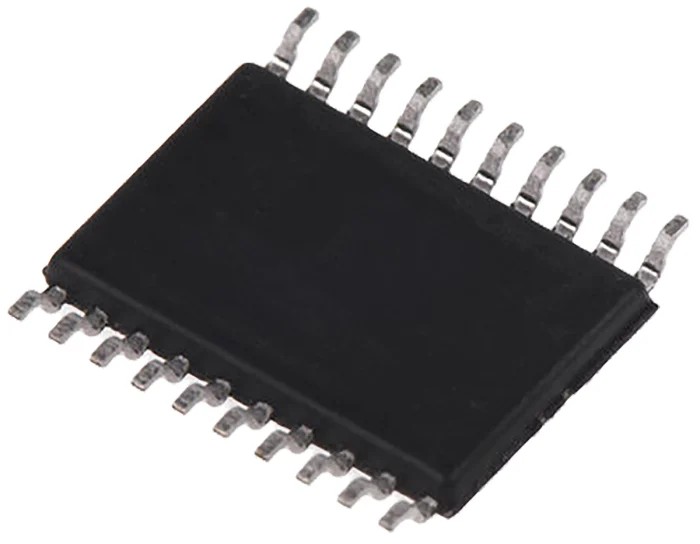

DiodesZetex 8-Channel Buffer & Line Driver, 3 State, Inverting, 20-Pin TSSOP, 1.65V to 3.6V Supply 74LVC244AT20-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.2mm |
| Length | 6.6mm |
| Model | 74LVC244AT20-13 |
| Width | 6.6mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | 74LVC244A |
| Input Type | CMOS |
| Maximum Operating Temperature | 150°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 8 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 20 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | Buffer & Line Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -24mA |
| Maximum Propagation Delay Time @ CL | 2.5ns |
| Supply Current | 40μA |
| Maximum Low Level Output Current | 24mA |
Key Features
- Operates at a minimum supply voltage of 1.65V up to a maximum of 3.6V.
- Features 8 CMOS inputs and provides 3 state outputs with inverting polarity.
- Designed with a maximum propagation delay time of 2.5 nanoseconds at capacitive load.
- Supports a wide operating temperature range from -40°C to 150°C for industrial environments.
- Compact 6.6mm length and width with a low profile height of 1.2mm.
- Low supply current of 40 microamperes ensures energy efficient performance.
- Package type is TSSOP suitable for surface mount technology.
- Compatible with Input LVTTL/TTL and Output LVCMOS logic families.
Product Description
DiodesZetex 74LVC244AT20-13 is an 8-channel buffer and line driver IC designed for applications requiring 3 state inverting outputs. It is housed in a 20-pin Thin Shrink Small Outline Package (TSSOP) optimized for surface mounting. The device operates over a supply voltage range of 1.65V to 3.6V, making it ideal for low voltage CMOS circuits.
This buffer/line driver IC belongs to the 74LVC logic family, featuring CMOS input technology and compatible with LVTTL/TTL inputs and LVCMOS outputs. It delivers high output drive capability with a maximum high-level output current of -24mA and low-level output current of 24mA, enabling it to drive significant loads.
With a maximum propagation delay of 2.5 nanoseconds at a capacitive load and a low quiescent current of only 40 microamperes, it provides efficient and fast signal buffering. The IC supports industrial temperature ranges from -40°C to 150°C, ensuring reliability in harsh environments.
The compact package measures 6.6 mm in length and width with a slim profile height of 1.2 mm, suitable for high-density PCB layouts. This product is manufactured in China and does not have specific automotive certifications.
Common uses include industrial automation, communication interface line buffering, and signal conditioning in embedded systems and electronic devices requiring reliable high-speed signal buffering with low power consumption.
Operates within 1.65V to 3.6V supply voltage range. 8 channel buffering with inverting logic and 3 state capability. Surface mount TSSOP package for space-constrained applications. Compatible with LVTTL/TTL inputs and LVCMOS outputs.
Robust performance across -40°C to 150°C operating temperatures. Low quiescent current of 40μA for energy-efficient operation. Maximum propagation delay 2.5ns at standard load. High output current drive capability supporting various load types.
Explore more semiconductor components and buffer ICs at EnvMart for robust electronic designs and applications.
Explore more products in our Line Interface ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a supply voltage range of 1.65V to 3.6V.
It features 8 channels for buffering and line driving applications.
The maximum propagation delay time is 2.5 nanoseconds at a capacitive load.
It is housed in a 20-pin Thin Shrink Small Outline Package (TSSOP), suitable for surface mounting.
This model is compatible with LVTTL/TTL inputs and provides LVCMOS outputs.
The supply current is 40 microamperes, contributing to its energy-efficient performance.
It supports an operating temperature range from -40°C to 150°C, making it suitable for industrial environments.
The maximum high-level output current is -24mA.
The package has a height of 1.2mm and a length and width of 6.6mm.
It belongs to the 74LVC logic family, utilizing CMOS input technology.
Common applications include industrial automation, communication interface line buffering, and signal conditioning in embedded systems.
The outputs are inverting, providing a 3-state capability.
