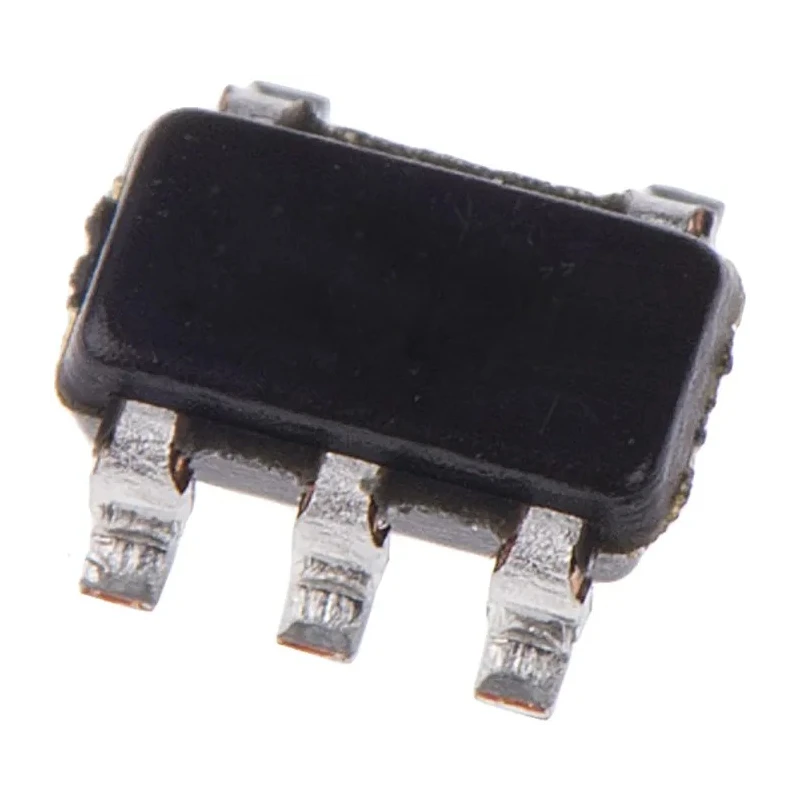

Texas Instruments Buffer & Line Driver, 3 State, Inverting, Single Channel, 5-Pin SOT-23 Package SN74LVC1G240DBVR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.1mm |
| Length | 2.75mm |
| Model | SN74LVC1G240DBVR |
| Width | 1.75mm |
| Mount Type | Surface |
| Compatibility | Input LVTTL/TTL, Output LVCMOS |
| Output type | 3 State |
| Series | SN74LVC1G240 |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Polarity | Inverting |
| IC Type | Buffer & Line Driver IC |
| Number Of Channels | 1 |
| Operating Voltage | 1.65 to 5.5 V |
| Pin Count | 5 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | LVC |
| Logic Function | Buffer, Driver |
| Minimum Supply Voltage | 1.65V |
| Maximum High Level Output Current | -32mA |
| Maximum Propagation Delay Time @ CL | 3.7ns |
| Supply Current | 10μA |
| Maximum Low Level Output Current | 32mA |
Key Features
- Operates with a supply voltage range of 1.65 V to 5.5 V for flexible interfacing.
- Features inverting logic function with a single-ended input and 3-state output.
- Compact SOT-23 surface mount package with 5 pins for space-efficient PCB design.
- Maximum propagation delay time of 3.7 ns at capacitive load ensures high-speed signal processing.
- Wide operating temperature range from -40°C to 125°C suitable for industrial environments.
- Low supply current of 10 μA supports energy-efficient operation.
- Compatible with LVTTL/TTL inputs and LVCMOS outputs for broad system compatibility.
- ESD protection exceeding JESD 227 standards enhances device reliability.
Product Description
Texas Instruments SN74LVC1G240DBVR is a high-performance buffer and line driver designed for industrial and electronic interface applications. This component belongs to the 74LVC1G family and operates within a supply voltage range of 1.65 V to 5.5 V, providing a flexible solution suitable for low-voltage CMOS logic circuits.
The device features a single inverting buffer channel with three-state output capabilities, allowing it to drive lines while controlling bus access in systems requiring signal multiplexing. It comes in a compact 5-pin SOT-23 surface mount package, ideal for space-constrained PCB layouts.
Key electrical characteristics include a maximum propagation delay of 3.7 nanoseconds with a capacitive load, maximum output current ratings of -32 mA for high level and 32 mA for low level outputs, and a supply current of just 10 microamperes, which emphasize its suitability for high-speed and low-power applications. The IC supports input compatibility with LVTTL and TTL logic levels, and output compatibility with LVCMOS signaling. It complies with stringent latch-up current and ESD protection standards, ensuring robustness in demanding industrial environments.
This buffer and line driver is useful in various applications such as industrial automation, communication interfaces, and embedded control systems that require reliable line driving with controlled logic levels and power efficiency. Its wide temperature range from -40°C to 125°C makes it appropriate for automotive and other harsh condition deployments.
Operates across a broad voltage range from 1.65 V to 5.5 V. Compact 5-pin SOT-23 packaging suitable for surface mounting on PCBs. Single inverting channel with three-state output for bus control applications. Low supply current ensures minimal power consumption.
High current output capability for driving loads. High-speed switching with propagation delay of 3.7 ns. Wide operating temperature range for industrial and automotive use. Robust ESD and latch-up protection standards compliance.
Set contains 1 Pc Texas Instruments SN74LVC1G240DBVR Buffer & Line Driver IC. Explore more semiconductor components and interface ICs in our Electronics & Electricals catalog at EnvMart.
Explore more products in our Line Interface ICs category.
