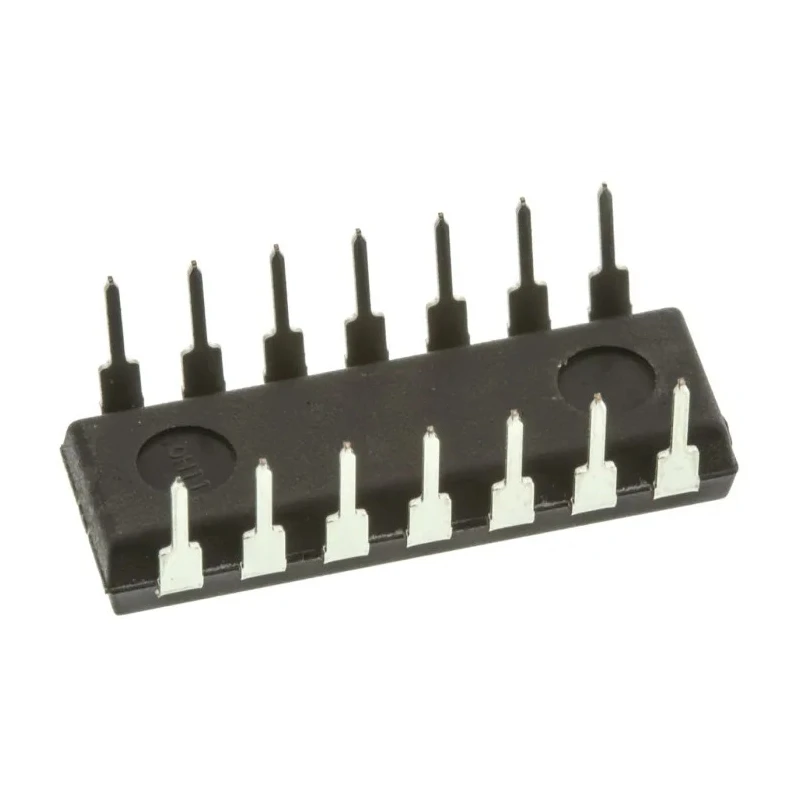

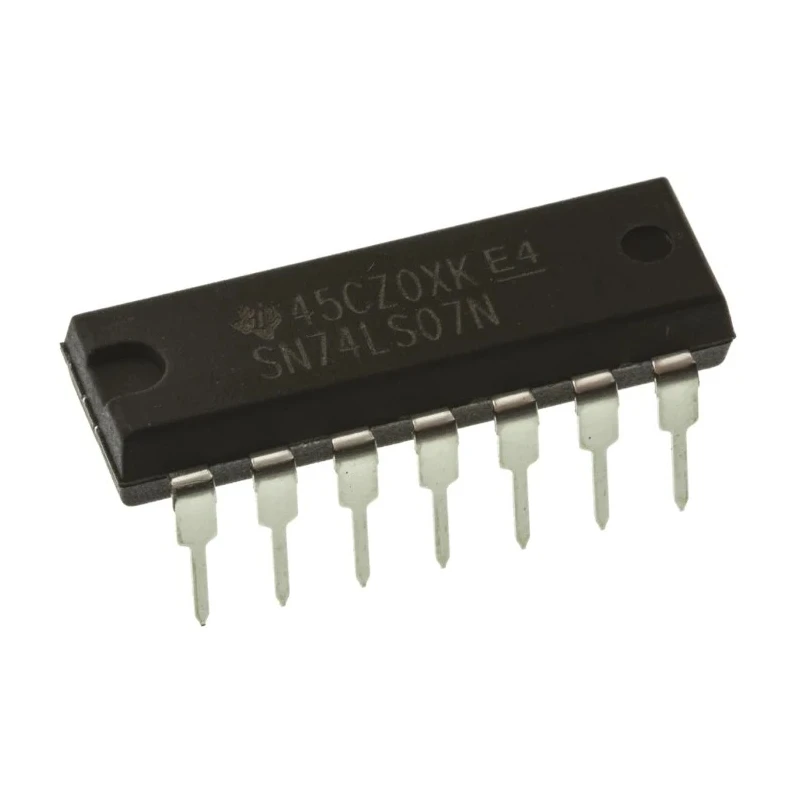

Texas Instruments 6-Channel Buffer & Line Driver Open Collector Non-Inverting 14-Pin PDIP SN74LS07N

Texas Instruments SN74LS07N is a 6-channel buffer and line driver integrated circuit designed to provide non-inverting open collector outputs. This device belongs to the 74LS family of low power Schottky logic and delivers efficient buffering and driving capabilities suitable for a variety of electronic applications.

The SN74LS07N operates over a supply voltage range from 4.75V to 5.25V, making it compatible with typical digital circuit power rails. The open collector outputs allow wired-AND logic and level shifting capabilities, ideal for driving LEDs, relays, and other devices.

This IC features through-hole mounting with a 14-pin PDIP package, facilitating easy integration into various PCB designs. Its maximum propagation delay time is 12 nanoseconds at the specified load, ensuring fast signal transmission.

The device supports an operating temperature range from 0°C to 70°C, suitable for general commercial and industrial environments. Electrical characteristics include a maximum low-level output current of 40mA, maximum high-level output current of -0.25mA, and a supply current of 45mA, offering a robust output drive capability.

Dimensions of 19.69mm length, 6.6mm width, and 5.08mm height ensure a compact footprint suitable for dense circuit layouts. This component is manufactured in Malaysia to meet trusted quality standards.

Belongs to the 74LS logic family incorporating Schottky diode technology. Six buffer and driver channels with non-inverting open collector outputs. Through-hole mount style in 14-Pin PDIP package. Operating voltage range from 4.75V to 5.25V.

Propagation delay time of 12ns with specified load. Operating temperature range from 0°C to 70°C. Maximum low level output current is 40mA and high level output current -0.25mA. Supply current consumption of 45mA typical.

Compact size with dimensions 19.69mm x 6.6mm x 5.08mm (LxWxH). Made in Malaysia.

This IC is widely used in electronics for signal buffering and line driving in applications like digital circuits, instrumentation, and communication equipment. It is well suited for industrial, laboratory, and commercial electronics projects requiring reliable logic buffering with open collector outputs.
