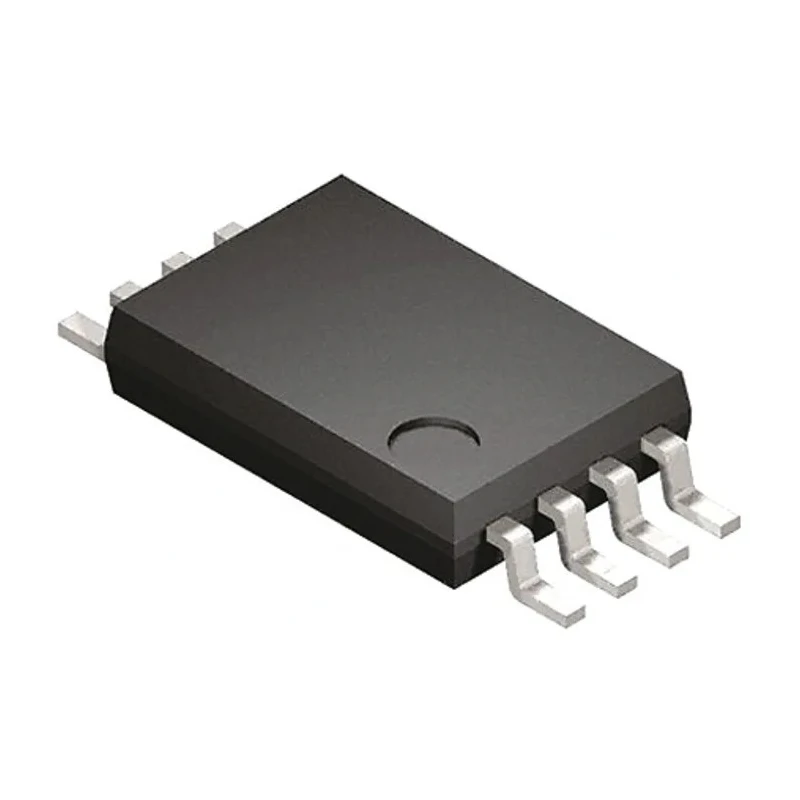

Nexperia 2-Channel Buffer & Line Driver, 3 State, Inverting, 8-Pin TSSOP 74LVC2G240DP,125

Nexperia 74LVC2G240DP,125 is a 2-channel buffer and line driver IC designed to provide inverting outputs with 3 state capability, packaged in an 8-pin TSSOP surface mount format. Operating from 1.65 V to 5.5 V supply voltage, this device integrates Schmitt Trigger inputs ensuring enhanced noise immunity, making it suitable for digital signal buffering in complex systems.

This IC is optimized for industrial, electronic, and semiconductor applications where compact design and high-speed switching (5 ns propagation delay) are critical. With a maximum output current of ±32 mA, it can drive moderately loaded buses and transmission lines effectively.

The 74LVC2G240DP,125 is RoHS compliant, supporting environmental and regulatory standards. It operates reliably over a broad temperature range (-40°C to 125°C), making it apt for automotive and industrial environments, albeit without formal automotive qualification.

Its dual channel with 3 state outputs facilitates bus-oriented applications, allowing outputs to be placed in a high impedance state, enabling multiple devices to share a common bus line without interference.

Key features include Schmitt Trigger input for clean signal processing and inverting logic which is useful for signal conditioning in industrial control, measurement systems, and communication devices.

Operates between 1.65 V and 5.5 V supply voltages enabling compatibility with low voltage systems. 8-pin TSSOP package supports compact PCB layouts and surface mount technology. High-speed operation with maximum propagation delay of 5 ns at typical load capacitance.

Wide operating temperature range ensures suitability for harsh environments. Robust drive capability with output current of ±32 mA suitable for various loads. Schmitt Trigger input enhances noise immunity and signal integrity.

This Nexperia buffer and line driver IC is ideal for applications in industrial automation, data communication, instrumentation, and other electronic systems requiring reliable signal buffering and line driving. It supports efficient signal management essential in modern electronic designs.
