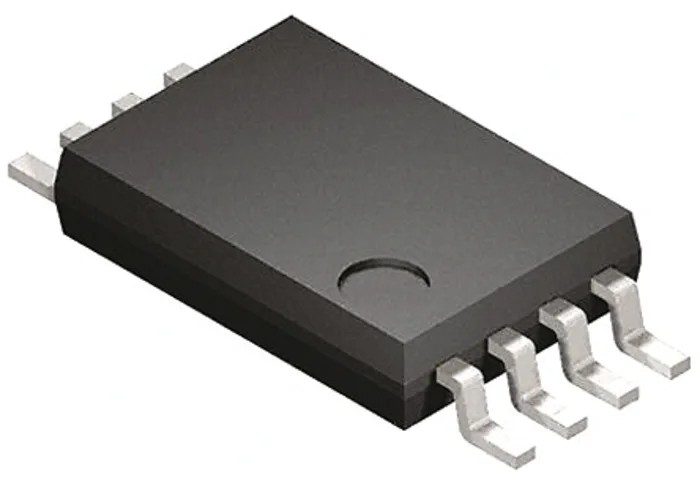

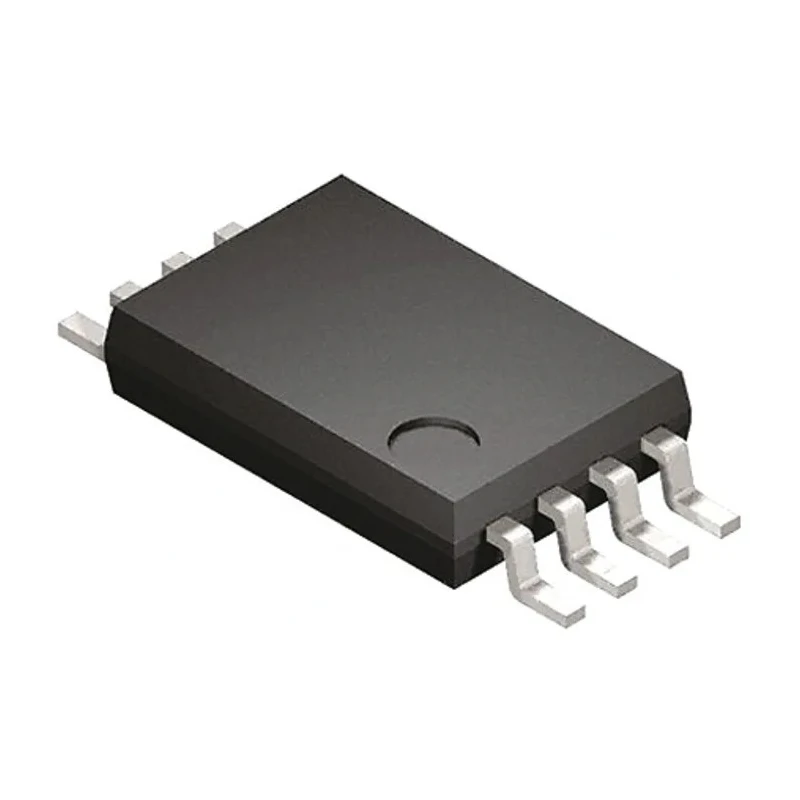

Nexperia 2-Channel Buffer & Line Driver, 3 State, Inverting, 8-Pin TSSOP 74LVC2G240DP,125

Nexperia 74LVC2G240DP,125 is a 2-channel buffer and line driver IC featuring 3-state inverting outputs packaged in an 8-pin TSSOP surface mount device. It supports a wide operating voltage range from 1.65 V up to 5.5 V, making it suitable for a variety of low voltage digital logic applications.

The device uses Schmitt trigger inputs, providing enhanced noise immunity and clean switching characteristics. Its 3-state outputs allow for flexible bus-oriented designs where multiple devices share signal lines.

With a maximum propagation delay of 5 ns and a low supply current of only 4 μA, the 74LVC2G240DP,125 offers fast, efficient operation. It supports operation over a temperature range from -40°C to 125°C, ensuring robust performance in industrial and commercial environments.

The 8-pin TSSOP package is ideal for space-constrained PCB layouts common in modern electronic designs. It is compliant with RoHS directives, supporting environmentally responsible manufacturing.

This buffer and line driver is compatible with input signals of LVTTL and TTL logic levels, while outputs conform to LVCMOS levels, ensuring ease of integration into mixed-logic systems and standard interface IC requirements.

Common applications include industrial automation, communication equipment, computing devices, instrumentation, and other electronic systems requiring reliable line driving with tri-state control.

Features 2 channels with buffering and line driving function. 3-state inverting outputs for bus sharing and flexible control. Operates from 1.65 V to 5.5 V supply for versatile voltage environments. Low supply current enhances system energy efficiency.

Schmitt trigger inputs provide noise immunity and clean switching. Fast propagation delay of 5 nanoseconds suitable for high-speed logic. Wide temperature range (-40°C to 125°C) for industrial grade reliability. Surface mount 8-pin TSSOP for compact PCB footprint.

RoHS compliant for environmentally safe use and manufacture. Compatible with LVTTL/TTL inputs and LVCMOS outputs for system integration. Explore more electronic components and semiconductor solutions in the Line Interface ICs category at EnvMart.
