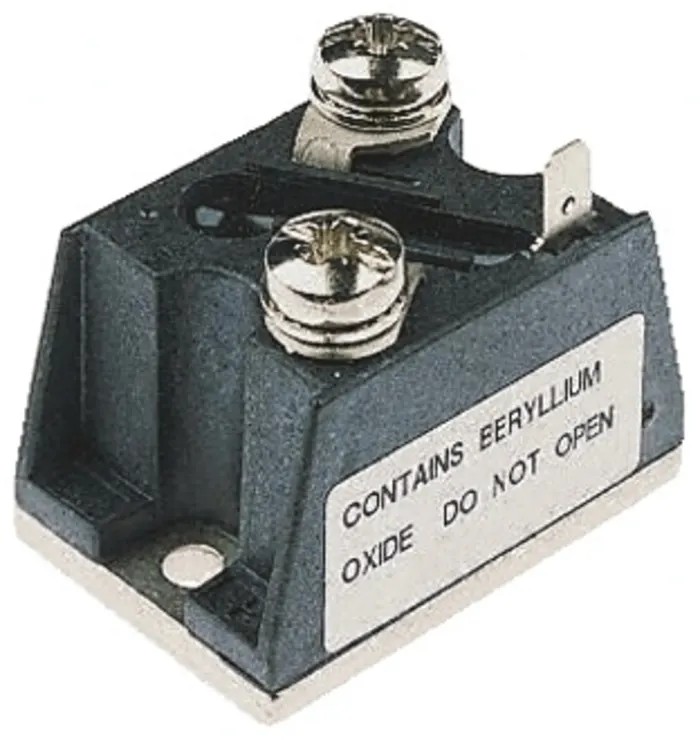

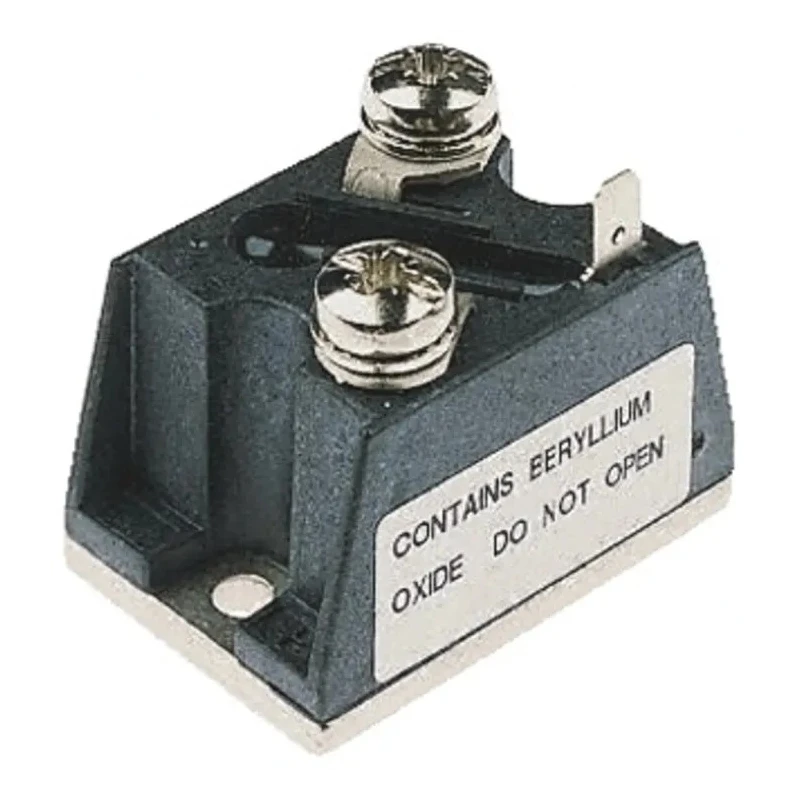

Vishay Power Diode 600 V 40 A 2-Pin D-55 Panel Mount VS-T40HF60

Vishay VS-T40HF60 Power Diode is a high-quality, industrial-grade semiconductor device designed for efficient power rectification with a maximum continuous forward current of 40 A and peak reverse repetitive voltage of 600 V. This diode utilizes a 2-pin D-55 package and panel mount type configuration for ease of assembly and reliability.

This diode features an electrically isolated base plate allowing the use of a common heatsink, facilitating compact and rapid assembly designs in electronic and industrial applications. It handles substantial surge currents up to 600 A and withstands operating temperatures from -40°C to 150°C, ensuring robustness in harsh operating conditions.

With dimensions of 41 mm in length, 27 mm in width, and 25 mm diameter and height, the diode is optimized for integration into power supplies, battery chargers, welders, motor control systems, and general industrial current rectification tasks. Its maximum forward voltage drop of 1.3 V ensures efficient energy conversion with minimal losses. This device meets RoHS compliance directives and is constructed to meet industrial standards.

Key features include electrical isolation, high surge current capacity, large creepage distances, and robustness for industrial-level usage. The VS-T40HF60 belongs to the VS-T40HF series of silicon junction diodes, providing reliable performance in various power rectification needs.

Panel mount type and D-55 package ensure stable installation. Electrically isolated base plate for common heatsink use and simplified mechanical designs. Supports 600 V peak reverse repetitive voltage and 40 A continuous forward current.

Maximum operating temperature up to 150°C allows wide application range. Peak non-repetitive forward surge current of 600 A ensures durability. Dimensions optimized for compact industrial assemblies. Compliant with RoHS directive 2002/95/EC and industrial standards.

This diode is an excellent choice for industrial, electronic components, power and connector applications including power supplies, motor controls, battery chargers, and welders. Its reliable performance and robust design make it ideal for manufacturing, HVAC, and general industrial current rectification tasks.
