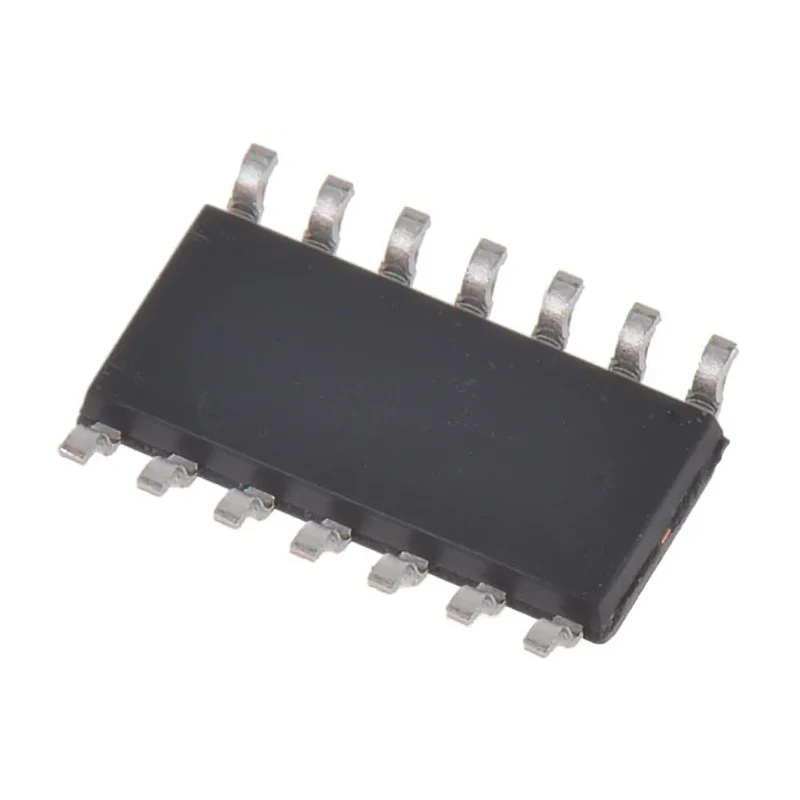

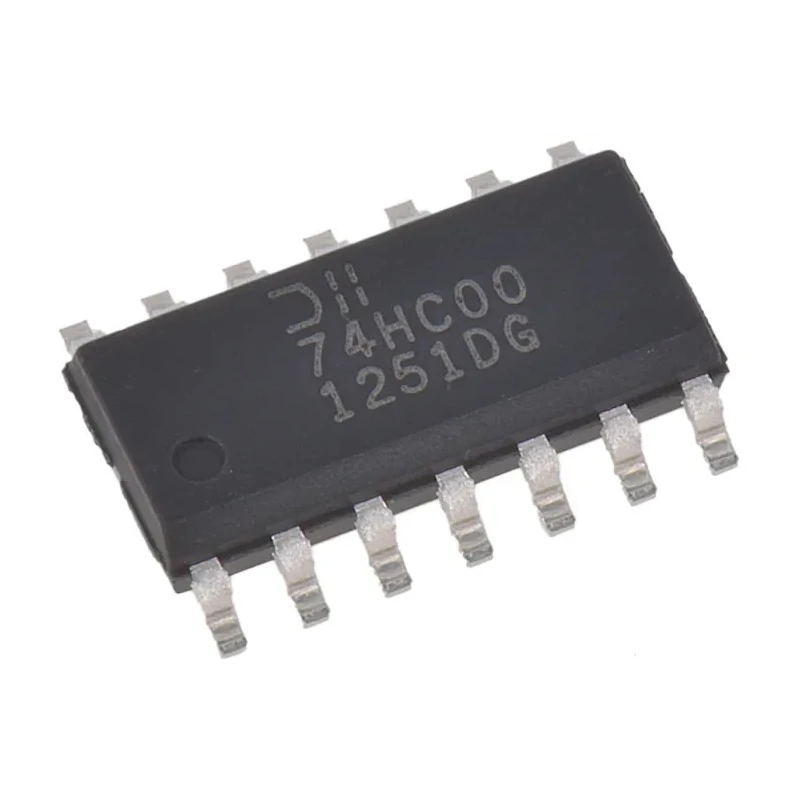

DiodesZetex 4 2-Input NAND Schmitt Trigger Input Logic Gate, 14-Pin SOIC, Surface Mount, 74HC00S14-13

DiodesZetex 74HC00S14-13 is a 4 2-Input NAND Schmitt Trigger logic gate IC housed in a 14-Pin SOIC surface mount package. It belongs to the 74HC family of high-speed CMOS digital logic devices designed for low power consumption and high performance.

This logic gate IC integrates four independent NAND gates, each with Schmitt trigger input functionality to provide superior noise immunity and signal stability in industrial and commercial electronics applications. The IC is capable of operating over a supply voltage range of 2 V to 6 V, making it compatible with a wide variety of circuit designs.

The device features a maximum propagation delay time of 23 nanoseconds at a capacitive load of 15pF, facilitating fast switching operations essential for high-frequency digital logic circuits. The push-pull output stage can source or sink up to 4 mA current at 4.5 V supply, ensuring robust output drive capabilities.

Designed to operate reliably over a temperature range from -40°C to 125°C, the 74HC00S14-13 is suitable for applications in industrial, automotive (non-automotive standard in this case), and commercial electronic systems. Its compact SOIC package with a pin count of 14 and package dimensions of 8.74 mm length by 1.48 mm height supports space-efficient PCB layouts.

Use cases include implementation in digital logic circuits requiring NAND logic with Schmitt trigger inputs for debouncing signals, waveform shaping, and noise reduction in electronic control units, signal processing boards, and embedded systems.

Contains four independent 2-input NAND gates with Schmitt trigger inputs for enhanced noise immunity. Implemented in a 14-Pin SOIC surface-mount package suited for compact PCB designs. Operates at supply voltage range from 2V to 6V with low power CMOS technology.

Maximum propagation delay time of 23 nanoseconds at typical load conditions ensures fast switching performance. Wide operating temperature range from -40°C to 125°C supports harsh environments. Outputs are push-pull type capable of sourcing and sinking up to 4mA at 4.5V supply voltage.

Package dimensions are approximately 8.74mm in length and 1.48mm in height. Explore more semiconductor logic ICs and Logic Gate solutions on EnvMart for a wide range of industrial and commercial electronics applications.
