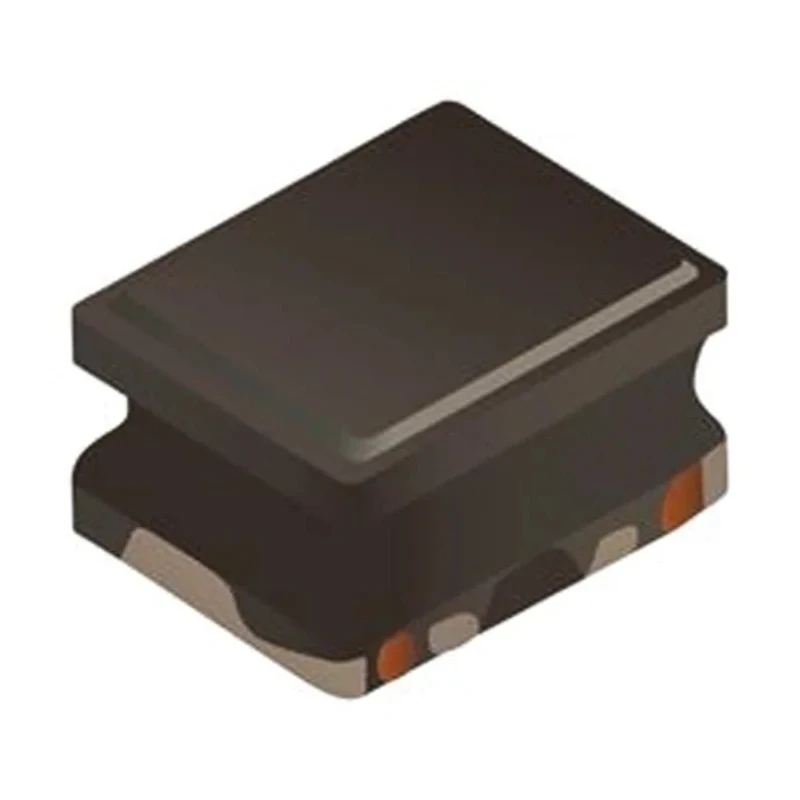

Bourns Shielded Wirewound Surface Mount Inductor 1.5μH ±20% 1.8A DC Current Q:12 SRN2012

Free Delivery in India | Lowest Global Shipping Charges

Bourns Shielded Wirewound Surface Mount Inductor 1.5μH ±20% 1.8A DC Current Q:12 SRN2012

Name: Bourns Shielded Wirewound Surface Mount Inductor 1.5μH ±20% 1.8A DC Current Q:12 SRN2012
Brand: BOURNS
SKU: 375898
Price: 0.38 USD
Availability: InStock



Category Surface Mount Inductors Brand BOURNS Condition New

Specifications

Country of Origin	India
Brand	Bourns
Height	1.2mm
Length	2mm
Model	SRN2012
Depth	1.6mm
Packaging	Reel
Series	SRN2012
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Core Material	Ferrite
Inductance Range	0.24 μH to 2.2 μH
Inductance	1.5μH
Low Profile	1.2 mm
Standards/Approvals	RoHS
Package/Case	2012
Maximum DC Current	1.8A
Pin Count	2
Maximum DC Resistance	108mΩ
Inductance Tolerance	±20 %
Termination Style	Solder
Maximum Self Resonant Frequency	90MHz
Minimum Quality Factor	12
Inductor Construction	Wirewound

Key Features

This inductor features a semi-shielded construction with a ferrite core for enhanced performance.
It comes in a compact 2012 package size with dimensions 2 mm length, 1.6 mm depth, and 1.2 mm height.
Operating temperature range spans from -55°C to 125°C, suitable for harsh environments.
The maximum DC resistance is 108 mΩ ensuring efficient current handling.
Rated quality factor (Q) is 12 at maximum self-resonant frequency of 90 MHz.
This model is RoHS compliant and halogen free, designed for environmental safety.
Termination style is solder, facilitating surface mount technology assembly.
Ideal applications include DC-DC converters, notebooks, digital video cameras, HDDs, cellphones, televisions, and LCD displays.

Product Description

Bourns SRN2012 shielded wirewound surface mount inductor with a ferrite core provides an inductance of 1.5 μH with a tolerance of ±20%. The device supports a maximum DC current of 1.8 A and features a quality factor of 12 at a self-resonant frequency of 90 MHz. Its semi-magnetically shielded construction offers excellent performance in a miniature 2012 package with dimensions 2 mm length, 1.6 mm depth, and 1.2 mm height.

This inductor is designed for surface mount technology with solder termination style, enhancing assembly efficiency in automated production lines. The core material is ferrite, contributing to low magnetic interference and high inductance stability. It operates reliably in a temperature range of -55°C to 125°C, enabling use in demanding industrial and commercial electronics environments.

Its maximum DC resistance is 108 mΩ, ensuring efficient energy transfer with minimal losses. The SRN2012 series is RoHS compliant and halogen-free, meeting modern environmental standards.

Typical industrial and commercial applications include power management in DC-DC converters, notebook computers, digital video cameras, hard disk drives, cellphones, televisions, and LCD displays. Its compact size and shielding make it well-suited for high-density circuit designs requiring reliable filtering and energy storage components.

Semi-shielded construction with ferrite core for high performance. Miniature 2012 package enables compact PCB layouts. Wide operating temperature range of -55°C to 125°C supports harsh environments. RoHS compliant and halogen-free materials promote environmental safety.

Quality factor of 12 at 90 MHz self-resonant frequency for signal integrity. Low DC resistance of 108 mΩ reduces power losses. Solder termination ensures compatibility with surface mount assembly. Explore the full range of Bourns Surface Mount Inductors at EnvMart for advanced electronic component solutions tailored to industrial, laboratory, and manufacturing applications.
