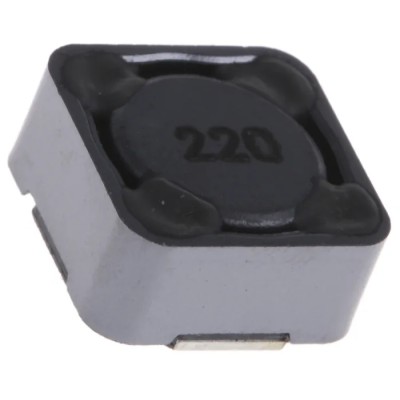

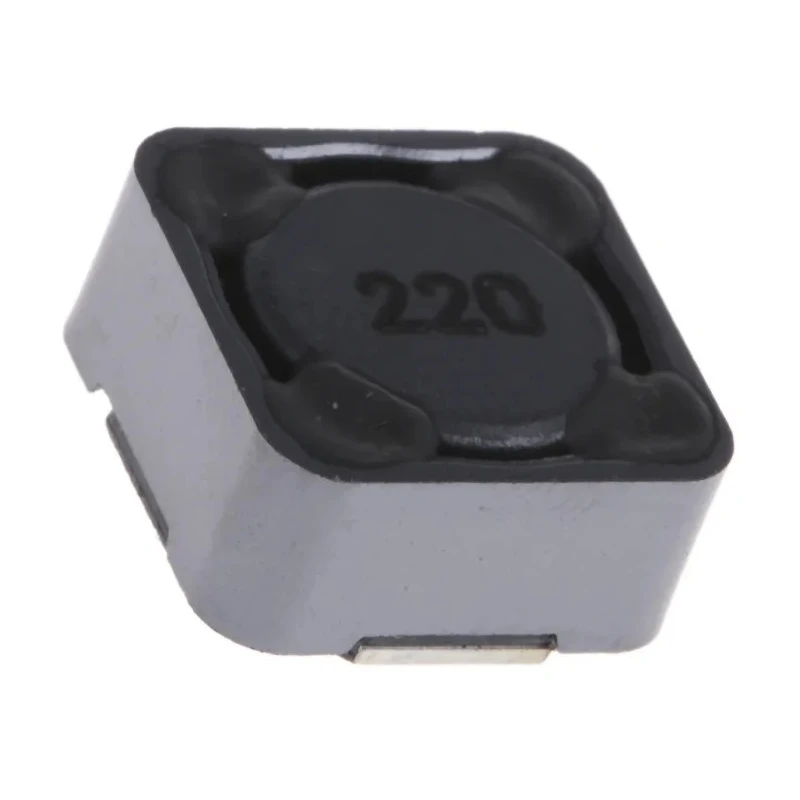

Bourns Shielded Wirewound Surface Mount Inductor 22μH ±20% 4A Idc Ferrite Core SRR1260
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6mm |
| Length | 12.5mm |
| Model | SRR1260 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1260 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS |
| Package/Case | 1260 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 727-2246Brand: BournsManufacturers Part No.: SRR1260-220MDistrelec Article No.: 304-35-401 |
| Maximum DC Current | 4A |
| Maximum DC Resistance | 43mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 13.4MHz |
| Minimum Quality Factor | 29 |
| Inductor Construction | Wirewound |
Key Features
- Maximum DC current rating of 4 amperes.
- Low profile design with 6mm height and 12.5mm length and depth dimensions.
- Inductor constructed with a wirewound and moulded design for durability.
- Supports high frequencies with a maximum self resonant frequency of 13.4 MHz.
- Minimum quality factor of 29 ensures efficient operation.
- Operating temperature range from -40°C to 125°C.
- Compliant with RoHS environmental standards.
- Packaged in reel form suitable for surface mount applications.
Product Description
Bourns SRR1260 series shielded wirewound surface mount inductor offers a 22 μH inductance with ±20% tolerance and a maximum DC current of 4 A, designed with a ferrite core to support high frequency operation up to 13.4 MHz. This model is characterized by a compact low profile of 6 mm height and package dimensions of 12.5 mm length and depth, ideal for space-constrained electronic circuits.
The inductor's wirewound and moulded construction ensures reliable performance and durability in various industrial and commercial electronics applications such as power supplies, DC/DC converters, portable communication devices, camcorders, LCD televisions, and car radios. Its magnetically shielded design minimizes electromagnetic interference, enhancing device stability.
Operating temperature range spans from -40°C to 125°C to suit demanding environments. The maximum DC resistance is limited to 43 mΩ for efficient current flow. This product complies with RoHS standards, ensuring environmentally safe manufacturing and disposal.
Packaged on reels, the SRR1260 series supports automated assembly processes for high-volume manufacturing. Its surface mount termination style facilitates easy PCB placement and soldering.
Maximum DC current of 4 A. Inductance tolerance at ±20%. Shielded ferrite core construction. Low profile 6 mm height. Maximum operating temperature 125°C. RoHS compliant. Maximum self-resonant frequency of 13.4 MHz. Minimum quality factor 29.
This inductor is suited for applications requiring reliable, high-frequency power management and filtering solutions in industrial and consumer electronics. Explore more surface mount inductors and related power components on EnvMart.
Explore more products in our Power Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 22μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 4A.
It has a low profile design with dimensions of 6mm in height and 12.5mm in both length and depth.
The maximum self-resonant frequency is 13.4 MHz, allowing it to support high frequency operation.
The operating temperature range spans from -40°C to 125°C.
It features a wirewound and moulded construction for durability and reliable performance.
Yes, it complies with RoHS environmental standards, ensuring safe manufacturing and disposal.
The minimum quality factor is 29, which indicates efficient operation.
It is packaged in reel form, making it suitable for automated assembly processes in high-volume manufacturing.
The maximum DC resistance is limited to 43 mΩ, facilitating efficient current flow.
This model uses a surface mount termination style, which simplifies PCB placement and soldering.
This inductor is suited for applications in power supplies, DC/DC converters, and various consumer electronics like camcorders and LCD televisions.
