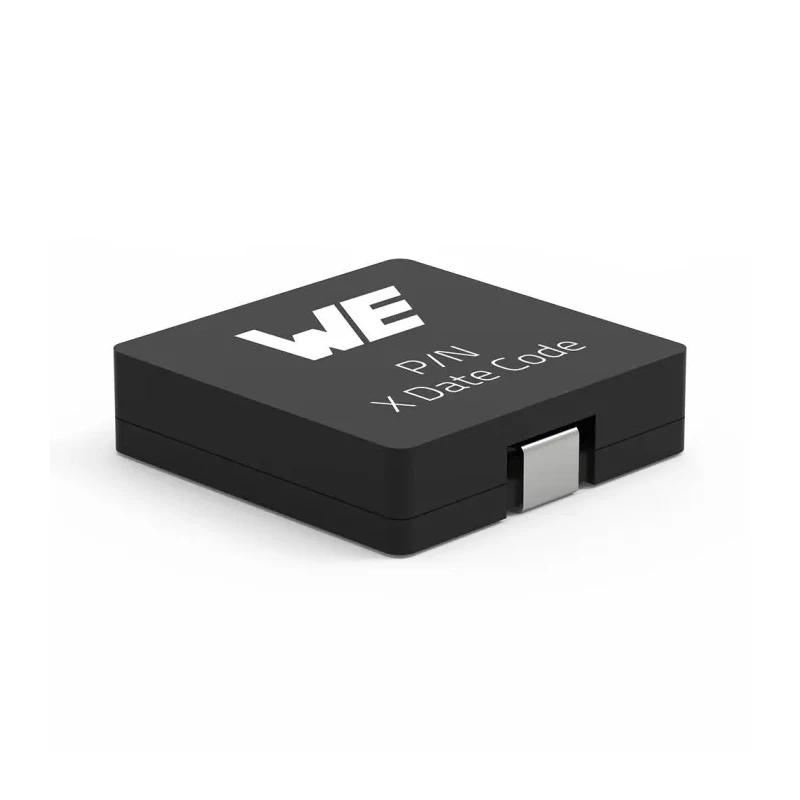

Wurth Elektronik Wirewound Surface Mount Inductor 7050 Package, 6.5 μH, Shielded, WE-HCI 744314650
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.8mm |
| Length | 7mm |
| Depth | 6.9mm |
| Packaging | Tape & Reel |
| Series | WE-HCI |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | WE-Superflux |
| Inductance | 6.5μH |
| Standards/Approvals | IEC 61249-2-21, RoHS, REACH, JEDEC JS709B |
| Package/Case | 7050 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 736-1964Brand: Wurth ElektronikManufacturers Part No.: 744314650Distrelec Article No.: 30188268 |
| Maximum DC Current | 6A |
| Pin Count | 2 |
| Maximum DC Resistance | 21.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 50MHz |
| Inductor Construction | Flat Wire Winding |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a flat wire winding construction with magnetic shielding for minimal interference.
- It supports a maximum DC current of 6 A and has a maximum DC resistance of 21.5 mΩ.
- Suitable for high current, low stray field applications such as industrial computers and DC-DC converters.
- Designed for surface mount PCB assembly with tape and reel packaging.
- Operating temperature ranges from -40°C to 150°C, compliant with automotive standard AEC-Q200.
- Compact dimensions of 7 mm length, 4.8 mm height, and 6.9 mm depth ensure space saving designs.
- The inductor is moulded and meets IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B standards.
- Offers an inductance tolerance of ±20% and has 2 pins for surface mounting.
Product Description
Wurth Elektronik 744314650 WE-HCI series wirewound surface mount inductor with a 7050 package and WE-Superflux core delivers 6.5 μH inductance with magnetic shielding to reduce electromagnetic interference.
This power inductor is designed for high current applications up to 6 A DC and exhibits a low maximum DC resistance of 21.5 mΩ, ensuring efficient power regulation in systems.
It employs a flat wire winding construction and is suitable for usage in industrial PCs, laptops, graphic cards, motherboards, DC-DC converters, filters, and polyphase switching regulators.
The inductor is supplied in tape and reel format and meets automotive standard AEC-Q200, with a wide operating temperature range from -40°C to 150°C, making it robust for automotive and industrial environments.
Physical dimensions include 7 mm length, 4.8 mm height, and 6.9 mm depth, allowing compact PCB layouts. The component is moulded and carries certifications including IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B.
Flat wire coil construction with magnetic shielding minimizes stray fields. High current capacity and low DC resistance improve efficiency in power supply circuits. Compatible with surface mount technology for modern PCB assembly.
Conforms to multiple safety and environmental standards. Wide temperature range supports various industrial and automotive applications. This product originates from China and is part of Wurth Elektronik's WE-HCI series of magnetically shielded wire wound chokes.
EnvMart offers this high-quality inductor suitable for engineers designing industrial, automotive, and commercial electronic devices requiring reliable power inductance components.
Explore more products in our Power Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 6.5 μH.
It can handle a maximum DC current of 6 A.
The dimensions are 7 mm in length, 4.8 mm in height, and 6.9 mm in depth.
The maximum DC resistance is 21.5 mΩ.
The operating temperature range is from -40°C to 150°C.
It complies with IEC 61249-2-21, RoHS, REACH, and JEDEC JS709B standards.
It is supplied in tape and reel packaging.
It features a flat wire winding construction with magnetic shielding.
This model has 2 pins for surface mounting.
It is designed to meet the automotive standard AEC-Q200.
The maximum self-resonant frequency is 50 MHz.
It is suitable for high current applications such as industrial computers, DC-DC converters, and filters.
