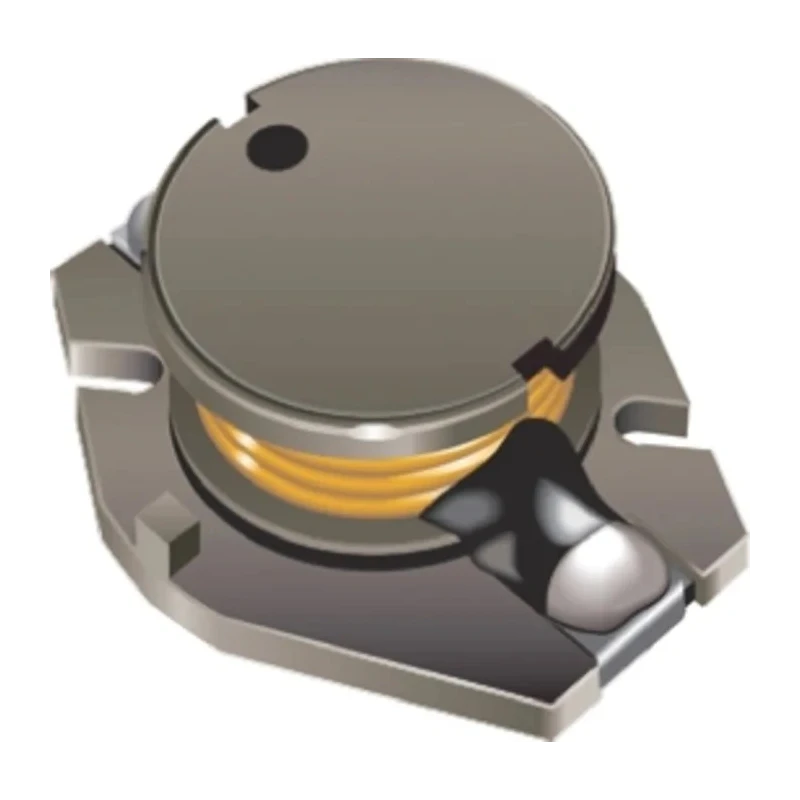

Bourns Wirewound Surface Mount Inductor SDR1806 1806 Package, 47 μH ±20 %, 2.5 A IDC, Ferrite DR Core SDR1806
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6.6mm |
| Length | 18.3mm |
| Model | SDR1806 |
| Depth | 14mm |
| Packaging | Reel |
| Series | SDR1806 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR |
| Inductance | 47μH |
| Standards/Approvals | JEDEC, RoHS |
| Package/Case | 1806 |
| Maximum DC Current | 2.5A |
| Maximum DC Resistance | 95mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 9MHz |
| Minimum Quality Factor | 22 |
| Inductor Construction | Wirewound |
Key Features
- This inductor features a ferrite DR core construction for enhanced performance.
- Packaged in a 1806 case suitable for surface mount applications.
- Designed for high reliability with a maximum DC resistance of 95 mΩ.
- Supports operating temperatures from -40°C to 125°C.
- Low profile height of 6.6 mm allowing compact PCB layouts.
- Applications include input/output filters in DC/DC converters and power supplies.
- RoHS compliant and JEDEC standard approved.
- Offers a minimum quality factor of 22 at the rated frequency.
Product Description
Bourns SDR1806 Wirewound Surface Mount Inductor is a precision engineered passive component featuring a ferrite DR core and a wirewound construction. The inductor provides 47 μH inductance with a tolerance of ±20 % and supports a maximum DC current of 2.5 A, making it ideal for power management circuits in industrial and commercial electronic devices.
This 1806 package inductor measures 18.3 mm in length, 14 mm in depth, and has a height of 6.6 mm, offering a low-profile solution for surface mount technology (SMT). It features a maximum DC resistance of 95 mΩ, ensuring efficient energy transfer with minimal losses across its operating temperature range from -40°C to 125°C.
The device is JEDEC and RoHS compliant, underscoring its quality and adherence to environmental standards. With a minimum quality factor of 22 and a maximum self-resonant frequency of 9 MHz, this inductor is optimized for high-frequency power conversion applications.
Commonly used in input/output filtering of DC/DC converters and power supplies, the SDR1806 series supports high reliability and durability in demanding industrial, laboratory, manufacturing, and commercial electronic equipment.
Supplied on reels, these inductors enable streamlined automated assembly and efficient production workflows. This inductor features a ferrite DR core construction for enhanced performance. Packaged in a 1806 case suitable for surface mount applications.
Designed for high reliability with a maximum DC resistance of 95 mΩ. Supports operating temperatures from -40°C to 125°C. Low profile height of 6.6 mm allows compact PCB layouts. Applications include input/output filters in DC/DC converters and power supplies.
RoHS compliant and JEDEC standard approved. Offers a minimum quality factor of 22 at the rated frequency. Maximum self-resonant frequency is 9 MHz, suitable for high-frequency circuits. Comes supplied on a reel packaging for production efficiency.
Explore more Bourns electronic components and Surface Mount Inductors in EnvMart's industrial catalog for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The SDR1806 inductor has an inductance value of 47 μH with a tolerance of ±20%.
This model supports a maximum DC current of 2.5 A.
The inductor measures 18.3 mm in length, 14 mm in depth, and has a height of 6.6 mm.
The maximum DC resistance is 95 mΩ, ensuring efficient energy transfer.
It operates within a temperature range of -40°C to 125°C.
The minimum quality factor of this inductor is 22 at the rated frequency.
The maximum self-resonant frequency is 9 MHz, making it suitable for high-frequency applications.
This inductor features a ferrite DR core material for enhanced performance.
It is supplied on a reel, facilitating automated assembly in production.
Yes, it is RoHS compliant and approved by JEDEC standards.
It is commonly used in input/output filtering of DC/DC converters and power supplies.
The termination style for this inductor is surface mount, suitable for SMT applications.
