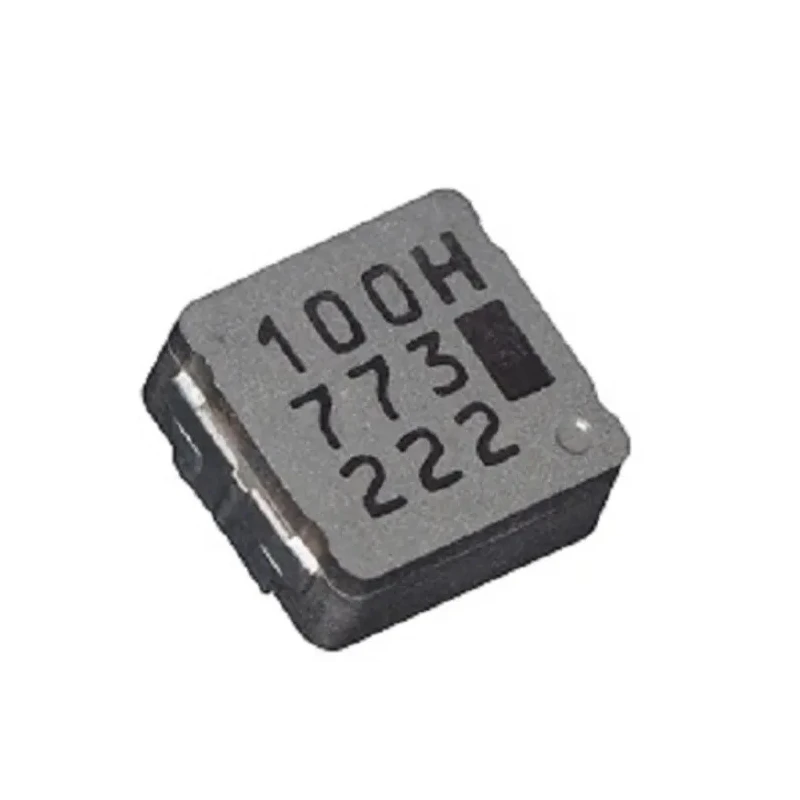

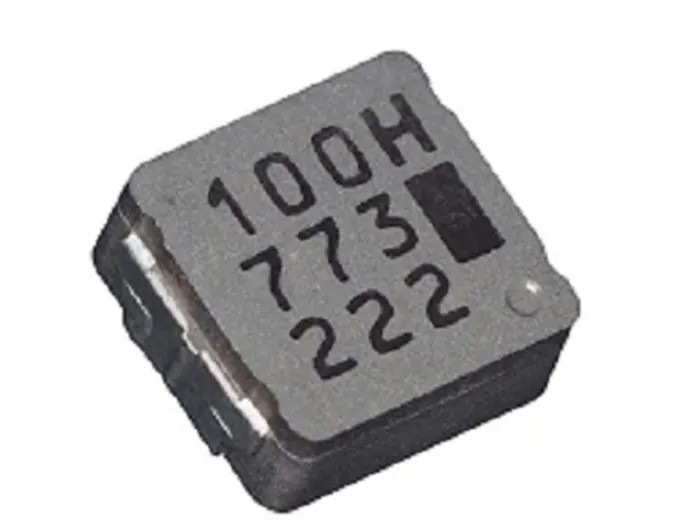

Panasonic Shielded Wirewound Surface Mount Inductor with Metal Composite Core 10 μH ±20% 3 A Idc ETQP3M

Panasonic ETQP3M Shielded Wirewound Surface Mount Inductor with Metal Composite Core is designed to deliver high heat resistance and exceptional reliability. Featuring a metal composite core, this power inductor maintains excellent inductance stability using ferrous alloy magnetic materials, making it suitable for demanding applications. The shielded construction reduces electromagnetic interference, enhancing overall circuit performance.

This inductor supports a maximum DC current of 3 A and offers an inductance of 10 μH with a tolerance of ±20%. The component can operate over a wide temperature range from -40°C to 150°C, compliant with automotive-grade AEC-Q200 standards, making it suitable for automotive electronics and other high-reliability environments.

With compact dimensions of 6.5 mm length, 6 mm depth, and 3 mm height, this surface mount device supports easy PCB integration. The wirewound construction ensures low audible noise and excellent vibration resistance thanks to its molded design and integral construction method.

This inductor's low DC resistance of 74.8 mΩ contributes to efficient power handling and reduced losses. The 2-pin surface mount terminations facilitate easy placement in automated assembly lines. Packaging is supplied in tape and reel format, supporting high-volume manufacturing processes.

Shielded design reduces electromagnetic interference. Metal composite core enhances heat resistance and reliability. Wide operating temperature range of -40°C to 150°C. Automotive-grade AEC-Q200 certification for high reliability.

Compact size supports space-saving PCB layouts. Wirewound construction ensures low audible noise and inductance stability. Low DC resistance minimizes power loss. Moulded for vibration resistance and mechanical integrity.

Tape and reel packaging suitable for automated assembly. Ideal for noise filtering in high temperature and high current applications.

This Panasonic ETQP3M surface mount inductor is well-suited for industrial, automotive, and commercial electronic applications requiring stable inductance and high reliability under challenging conditions. Suitable for noise filtering in drive circuits and devices exposed to vibration and temperature extremes.
