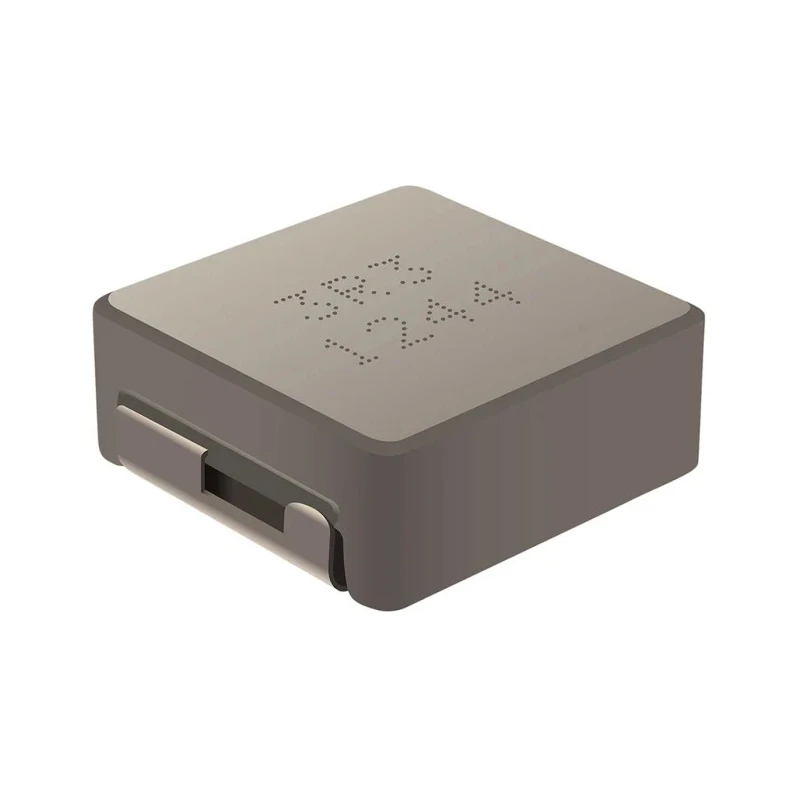

Bourns Shielded Wirewound Surface Mount Inductor Carbonyl Powder Core 56 μH ±20 % 7.8 A Idc 1770 Package SRP1770TA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 16.9mm |
| Length | 17.3mm |
| Model | SRP1770TA |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | SRP1770TA |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Carbonyl Powder |
| Inductance | 56μH |
| Standards/Approvals | RoHS |
| Package/Case | 1770 |
| Maximum DC Current | 7.8A |
| Pin Count | 2 |
| Maximum DC Resistance | 62mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 3MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Constructed with a carbonyl powder core for high saturation current.
- Shielded design minimizes magnetic radiation interference.
- Rated for operation between -40°C and 150°C.
- AEC-Q200 qualified, suitable for automotive and industrial applications.
- Surface mount package size 1770 with solder termination style.
- Maximum DC resistance of 62 milliohms ensures efficient performance.
- Maximum self-resonant frequency of 3 MHz for high-frequency circuits.
- Minimum quality factor of 20 to ensure performance stability.
Product Description
Bourns SRP1770TA shielded wirewound surface mount inductor features a carbonyl powder core designed for high saturation current and low magnetic radiation. This 1770 packaged inductor provides 56 μH inductance with ±20% tolerance and supports a maximum DC current of 7.8 A, making it ideal for high-performance power electronics.
Its shielded construction reduces electromagnetic interference, supporting sensitive automotive and industrial electronics such as driver assistance systems, lighting controls, and information entertainment modules. The component meets AEC-Q200 qualification, ensuring reliability under automotive-grade temperature and environmental conditions ranging from -40°C to 150°C.
The SRP1770TA model includes a solder termination and is supplied on a reel suitable for volume surface mount technology (SMT) assembly. It offers a typical maximum DC resistance of 62 milliohms and a high self-resonant frequency of 3 MHz, enabling its use in wide-ranging DC/DC converters and power supply designs.
This RoHS-compliant inductor is molded and wirewound, featuring an enamelled copper wire coil for longevity and excellent electrical characteristics. The minimum quality factor of 20 guarantees efficient inductive filtering and performance stability in demanding circuits.
Carbonyl powder core with high saturation capability. Shielded construction reduces magnetic interference. Compatible with automotive and harsh industrial environments. Temperature rated from -40°C to 150°C for robust operation.
Surface mount 1770 package with solder terminations facilitates reliable mounting. Maximum DC resistance of 62 milliohms to minimize power loss. 3 MHz maximum self-resonant frequency for reliable high-frequency performance.
AEC-Q200 qualified for automotive system integration. Supplied on a reel for efficient automated PCB assembly. RoHS compliant and environmentally responsible design.
Bourns inductors are widely used in industrial, automotive, power supply, telecommunications, and electronics manufacturing sectors. Their robust design and quality standards ensure dependable performance in complex electronic assemblies. Browse more quality Inductors and electronic components in the Electronics & Electricals category at EnvMart for your next project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Bourns SRP1770TA has an inductance value of 56 μH with a tolerance of ±20%.
This inductor supports a maximum DC current of 7.8 A, making it suitable for high-performance applications.
It is rated for operation between -40°C and 150°C, which allows it to function effectively in harsh environments.
The maximum self-resonant frequency is 3 MHz, which is beneficial for high-frequency circuit applications.
This model features a wirewound construction with a carbonyl powder core, designed for high saturation current.
The maximum DC resistance is 62 milliohms, which helps minimize power loss during operation.
It comes in a surface mount package size of 1770, which facilitates automated PCB assembly.
Yes, it is RoHS compliant and meets the AEC-Q200 qualification, making it suitable for automotive applications.
This inductor uses a solder termination style, which is standard for surface mount applications.
The minimum quality factor is 20, ensuring performance stability in various applications.
The country of origin for this model is India.
This inductor is suitable for automotive and industrial applications, including driver assistance systems and power supply designs.
